scheduler_fuel_controller.cpp File Reference

#include "scheduler_fuel_controller.h"
#include "scheduledIO_inj.h"
#include "units.h"
#include "table2d.h"
#include "globals.h"

Macros
#define	SET_CALLBACKS(index)   setCallbacks(fuelSchedule ## index, openInjector ## index, closeInjector ## index);\
#define	SET_FUEL_CHANNEL(channel)    setFuelChannelSchedule(fuelSchedule ##channel, UINT8_C(channel), crankAngle, injChannelMask, injAngle, &angleCalcCache);
#define	ASSIGN_PRIMARY_PW(index)   fuelSchedule ## index .pw = applyFuelTrim(trimTables[index-1U], pulse_widths.primary, page6, current);
#define	ASSIGN_SECONDARY_PW(index)
#define	ASSIGN_ZERO_PW(index)   fuelSchedule ## index .pw = 0U;
#define	ASSIGN_PRIMARY_ANGLE(index)    fuelSchedule ## index .channelDegrees = calcScheduleAngle(current, page2, index);

Functions
static void	setupSequentialCallbacks (void)
static void	setupPairedCallbacks (void)
static void	setupSemiSequentialCallbacks (uint8_t nCylinders, uint8_t inj4cylPairing)
static void	setupCallbacks (uint8_t injLayout, uint8_t nCylinders, uint8_t inj4cylPairing)
TESTABLE_INLINE_STATIC bool	isAnyFuelScheduleRunning (void)
TESTABLE_INLINE_STATIC uint16_t	lookupInjectorAngle (const statuses &current)
TESTABLE_INLINE_STATIC uint16_t	updatePwAngleCache (uint16_t pw, injectorAngleCalcCache *pCache)
TESTABLE_INLINE_STATIC uint16_t	_calculateOpenAngle (const FuelSchedule &schedule, uint16_t pwDegrees, uint16_t injAngle)
	Compute the injector open angle for an injection channel.
TESTABLE_INLINE_STATIC uint32_t	calculateInjectorTimeout (const FuelSchedule &schedule, int16_t crankAngle, uint16_t openAngle)
	Calculate the time in uS from now to when the injector should be opened.
TESTABLE_INLINE_STATIC void	setFuelChannelSchedule (FuelSchedule &schedule, uint8_t channel, uint16_t crankAngle, byte injChannelMask, uint16_t injAngle, injectorAngleCalcCache *pCache) noexcept
TESTABLE_INLINE_STATIC uint16_t	setFuelChannelSchedules (uint16_t crankAngle, byte injChannelMask, uint16_t injAngle)
TESTABLE_INLINE_STATIC uint16_t	injectorLimits (uint16_t angle)
	Clamp the angle to within [0,CRANK_ANGLE_MAX_INJ)
	BEGIN_LTO_ALWAYS_INLINE (uint16_t) setFuelChannelSchedules(const statuses &current)
static uint16_t	applyFuelTrim (const table3d6RpmLoad &trimTable, uint16_t pw, const config6 &page6, const statuses &current)
static void	assignPrimaryPws (const pulseWidths &pulse_widths, const config6 &page6, const statuses &current)
static void	assignSecondaryPws (const pulseWidths &pulse_widths, const statuses &current)
static void	zeroAllChannels (void)
static void	resetFuelSchedules (void)
void	startFuelSchedulers (void)
	Start the timers that drive schedulers.
void	stopFuelSchedulers (void)
	Stop the timers that drive schedulers.
void	beginInjectorPriming (const statuses &current, const config4 &page4)
	Start priming the fuel system.
void	closeAllInjectors (void)
	Utility function to close all injectors.
TESTABLE_INLINE_STATIC uint16_t	calcAngularCylinderSeparation (const statuses &current, const config2 &page2)
TESTABLE_INLINE_STATIC uint16_t	getOddfireAngle (const config2 &page2, uint8_t channel)
TESTABLE_INLINE_STATIC bool	useEvenFire (const config2 &page2)
TESTABLE_INLINE_STATIC uint16_t	getEvenFireAngle (const statuses &current, const config2 &page2, uint8_t channel)
TESTABLE_INLINE_STATIC uint16_t	calcScheduleAngle (const statuses &current, const config2 &page2, uint8_t channel)
	Calculate the schedule channel angle. I.e. FuelSchedule::channelDegrees.
static void	setInjectorAngles (const statuses &current, const config2 &page2)
TESTABLE_STATIC uint8_t	calulateNumSquirts (const statuses &current, const config2 &page2)
TESTABLE_STATIC uint16_t	calculateMaxInjAngle (const statuses &current, const config2 &page2)
TESTABLE_INLINE_STATIC uint8_t	calcNumPrimaryInjectors (const statuses &current, const config2 &page2)
TESTABLE_STATIC uint8_t	calcNumSecondaryInjectors (uint16_t primary, const config2 &page2, const config10 &page10)
TESTABLE_STATIC num_injector_t	calcNumInjectors (const statuses &current, const config2 &page2, const config10 &page10)
static uint8_t	validateInjLayout (uint8_t layout, const config2 &page2)
TESTABLE_STATIC void	validateInjectionSetup (config2 &page2, config6 &page6)
void	configureFuelSchedules (statuses &current, const config2 &page2, const config4 &page4, const config10 &page10)
void	initialiseFuelSchedules (statuses &current, config2 &page2, const config4 &page4, config6 &page6, config10 &page10, const pinNumbers_t &pins)
	Initialise this module.
static bool	isSwitchableConfig (const config2 &page2)
TESTABLE_INLINE_STATIC bool	changeToSemiSequentialInjection (const statuses &current, const config2 &page2)
TESTABLE_INLINE_STATIC bool	changeToFullSequentialInjection (const statuses &current, const config2 &page2)
static void	changeFuellingToFullSequential (const config2 &page2, const config4 &page4, const config10 &page10, statuses &current)
static void	changeFuellingToSemiSequential (const config2 &page2, const config4 &page4, const config10 &page10, statuses &current)
TESTABLE_STATIC void	matchFuelSchedulersToSyncState (const config2 &page2, const config4 &page4, const config10 &page10, statuses &current)
	BEGIN_LTO_ALWAYS_INLINE (void) applyPwToInjectorChannels(const pulseWidths &pulse_widths
	assignPrimaryPws (pulse_widths, page6, current)
	assignSecondaryPws (pulse_widths, current)

Variables
FuelSchedule	fuelSchedule1 (FUEL1_COUNTER, FUEL1_COMPARE)
TESTABLE_STATIC table2D_u8_u16_4 injectorAngleTable &	configPage2
const config2 &	page2
const config2 const config4 &	page4
const config2 const config4 const config6 &	page6
const config2 const config4 const config6 const config10 &	page10
const config2 const config4 const config6 const config10 statuses &	current

Macro Definition Documentation

ASSIGN_PRIMARY_ANGLE

#define ASSIGN_PRIMARY_ANGLE

(

index

)

fuelSchedule ## index .channelDegrees = calcScheduleAngle(current, page2, index);

ASSIGN_PRIMARY_PW

#define ASSIGN_PRIMARY_PW

(

index

)

fuelSchedule ## index .pw = applyFuelTrim(trimTables[index-1U], pulse_widths.primary, page6, current);

ASSIGN_SECONDARY_PW

#define ASSIGN_SECONDARY_PW

(

index

)

Value:

    if (current.injOutputs.isSecondaryInjector(index)) \
    { \
      fuelSchedule ## index .pw = pulse_widths.secondary; \
    }

ASSIGN_ZERO_PW

#define ASSIGN_ZERO_PW

(

index

)

fuelSchedule ## index .pw = 0U;

SET_CALLBACKS

#define SET_CALLBACKS

(

index

)

setCallbacks(fuelSchedule ## index, openInjector ## index, closeInjector ## index);\

SET_FUEL_CHANNEL

#define SET_FUEL_CHANNEL

(

channel

)

setFuelChannelSchedule(fuelSchedule ##channel, UINT8_C(channel), crankAngle, injChannelMask, injAngle, &angleCalcCache);

Function Documentation

_calculateOpenAngle()

TESTABLE_INLINE_STATIC uint16_t _calculateOpenAngle	(	const FuelSchedule &	schedule,
		uint16_t	pwDegrees,
		uint16_t	injAngle
	)

Compute the injector open angle for an injection channel.

Parameters

schedule	Fuel schedule to calculate for
pwDegrees	How many crank degrees the calculated PW will take at the current speed
injAngle	The requested injection angle

Returns

uint16_t

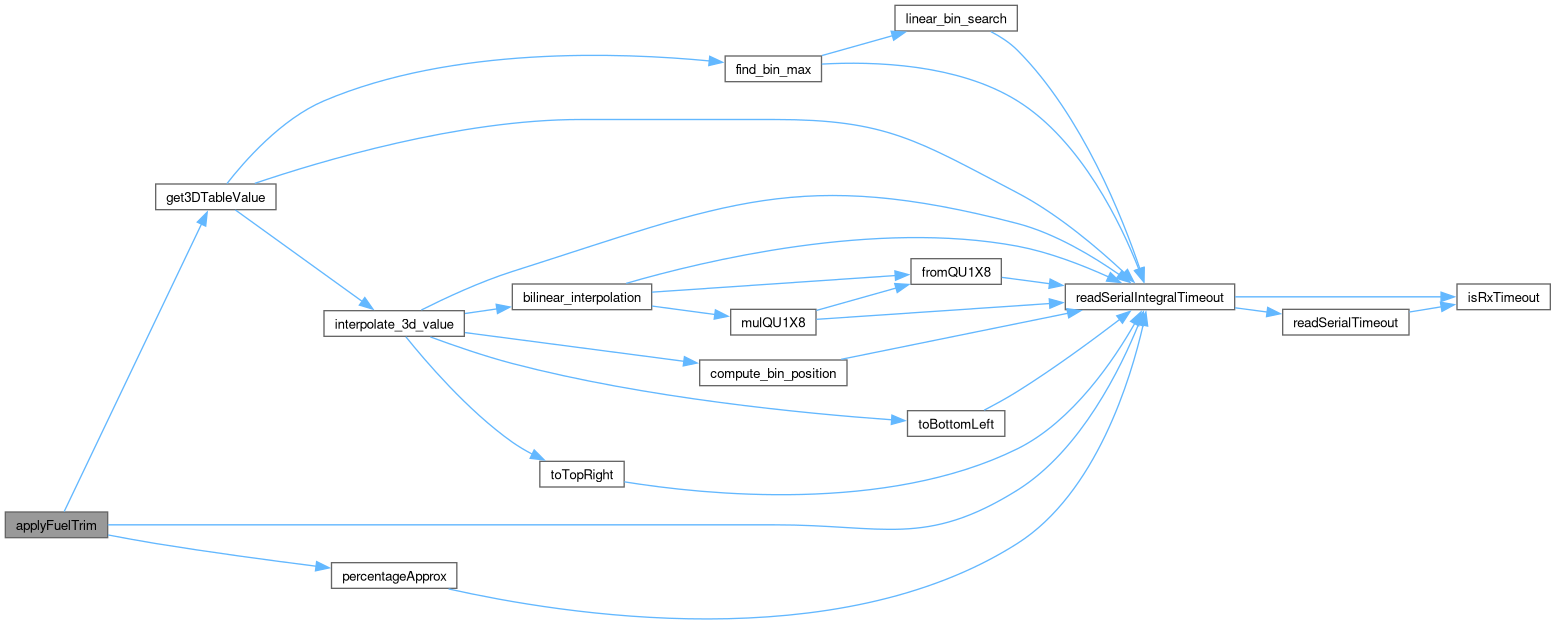

applyFuelTrim()

static uint16_t applyFuelTrim ( const table3d6RpmLoad &  trimTable, uint16_t  pw, const config6 &  page6, const statuses &  current  )

inlinestatic

assignPrimaryPws() [1/2]

static void assignPrimaryPws ( const pulseWidths &  pulse_widths, const config6 &  page6, const statuses &  current  )

inlinestatic

assignPrimaryPws() [2/2]

assignPrimaryPws	(	pulse_widths	,
		page6	,
		current
	)

assignSecondaryPws() [1/2]

static void assignSecondaryPws ( const pulseWidths &  pulse_widths, const statuses &  current  )

inlinestatic

assignSecondaryPws() [2/2]

assignSecondaryPws	(	pulse_widths	,
		current
	)

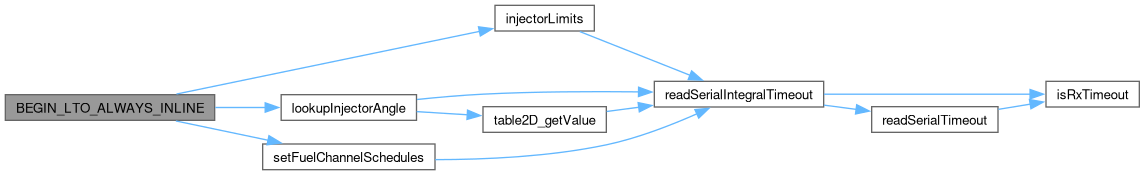

BEGIN_LTO_ALWAYS_INLINE() [1/2]

BEGIN_LTO_ALWAYS_INLINE

(

uint16_t

)

const &

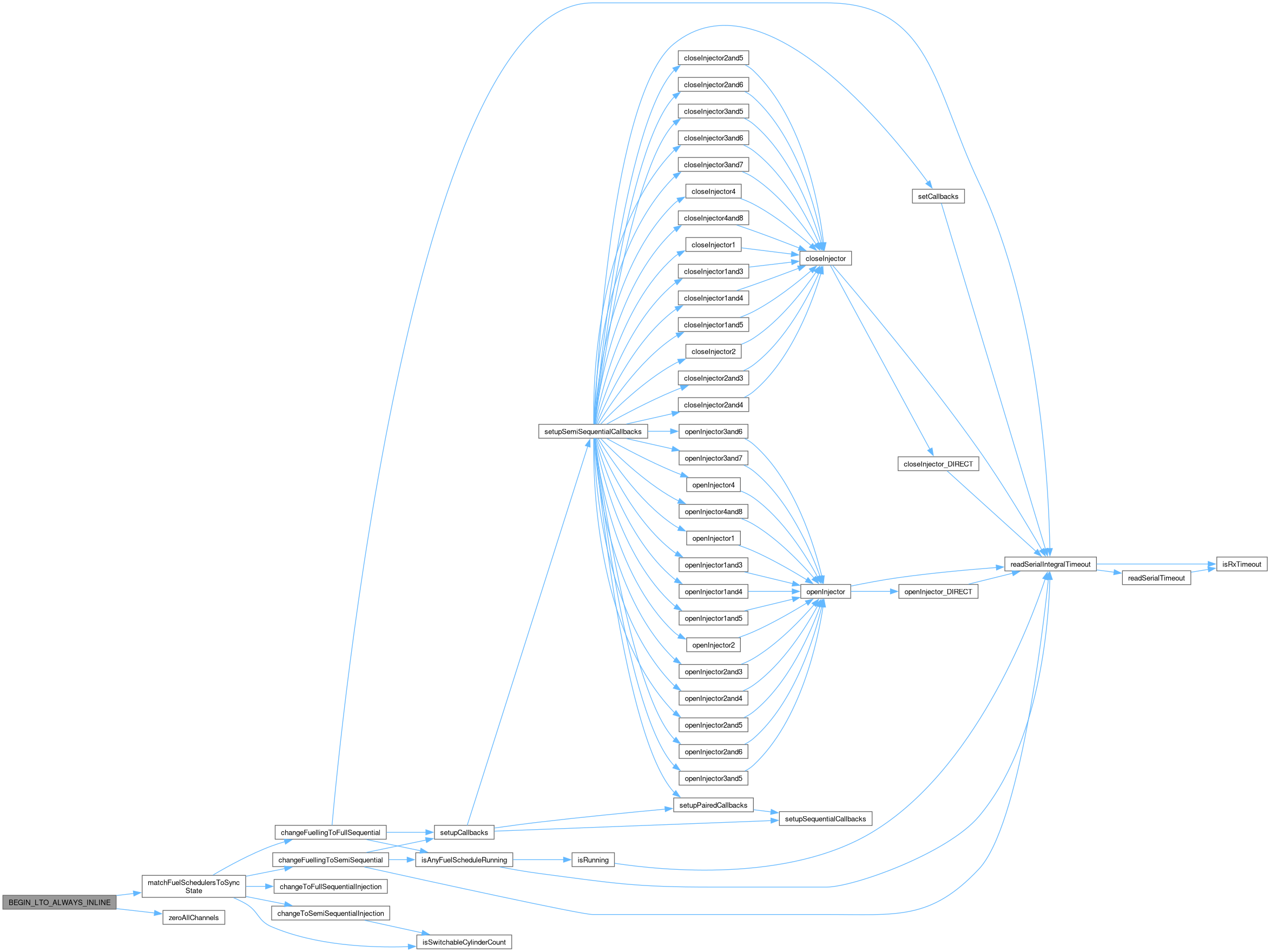

BEGIN_LTO_ALWAYS_INLINE() [2/2]

BEGIN_LTO_ALWAYS_INLINE

(

void

)

const &

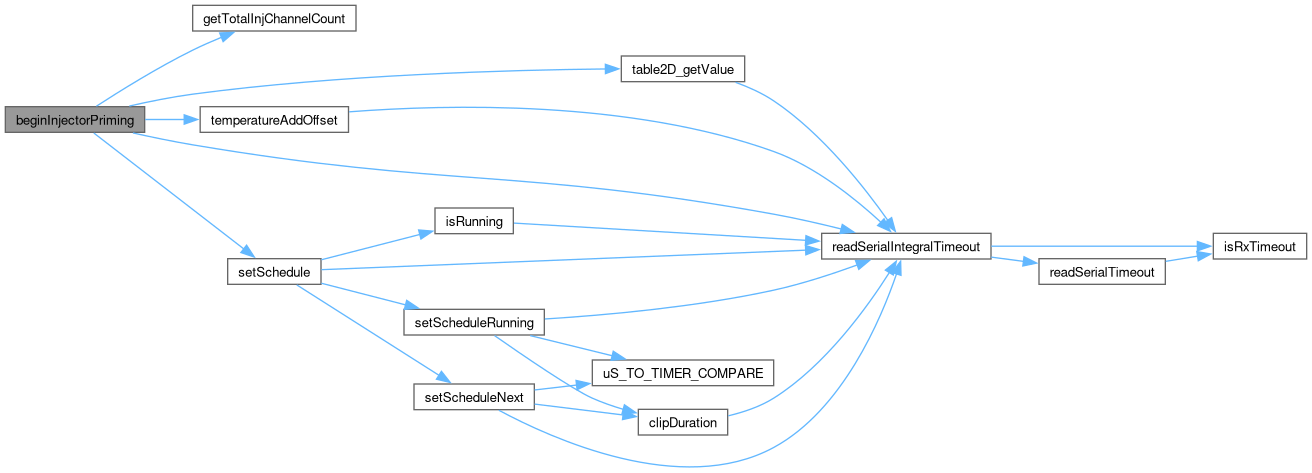

beginInjectorPriming()

void beginInjectorPriming	(	const statuses &	current,
		const config4 &	page4
	)

Start priming the fuel system.

Perform the injector priming pulses. Set these to run at an arbitrary time in the future (100us). The prime pulse value is in ms*10, so need to multiple by 100 to get to uS

calcAngularCylinderSeparation()

TESTABLE_INLINE_STATIC uint16_t calcAngularCylinderSeparation	(	const statuses &	current,
		const config2 &	page2
	)

calcNumInjectors()

TESTABLE_STATIC num_injector_t calcNumInjectors	(	const statuses &	current,
		const config2 &	page2,
		const config10 &	page10
	)

calcNumPrimaryInjectors()

TESTABLE_INLINE_STATIC uint8_t calcNumPrimaryInjectors	(	const statuses &	current,
		const config2 &	page2
	)

calcNumSecondaryInjectors()

TESTABLE_STATIC uint8_t calcNumSecondaryInjectors	(	uint16_t	primary,
		const config2 &	page2,
		const config10 &	page10
	)

calcScheduleAngle()

TESTABLE_INLINE_STATIC uint16_t calcScheduleAngle	(	const statuses &	current,
		const config2 &	page2,
		uint8_t	channel
	)

Calculate the schedule channel angle. I.e. FuelSchedule::channelDegrees.

Most cases are spaced evenly round the crank cycle, with cylinder 1 at 0deg. E.g. 2 cylinder non-sequential is over 360deg so cylinder 2 is at 180deg.

There are special cases to account for though.

calculateInjectorTimeout()

TESTABLE_INLINE_STATIC uint32_t calculateInjectorTimeout	(	const FuelSchedule &	schedule,
		int16_t	crankAngle,
		uint16_t	openAngle
	)

Calculate the time in uS from now to when the injector should be opened.

Parameters

schedule	The ignition channel
openAngle	The angle at which to open the injector
crankAngle	The current crank angle

Returns

uint32_t

calculateMaxInjAngle()

TESTABLE_STATIC uint16_t calculateMaxInjAngle	(	const statuses &	current,
		const config2 &	page2
	)

calulateNumSquirts()

TESTABLE_STATIC uint8_t calulateNumSquirts	(	const statuses &	current,
		const config2 &	page2
	)

changeFuellingToFullSequential()

static void changeFuellingToFullSequential ( const config2 &  page2, const config4 &  page4, const config10 &  page10, statuses &  current  )

inlinestatic

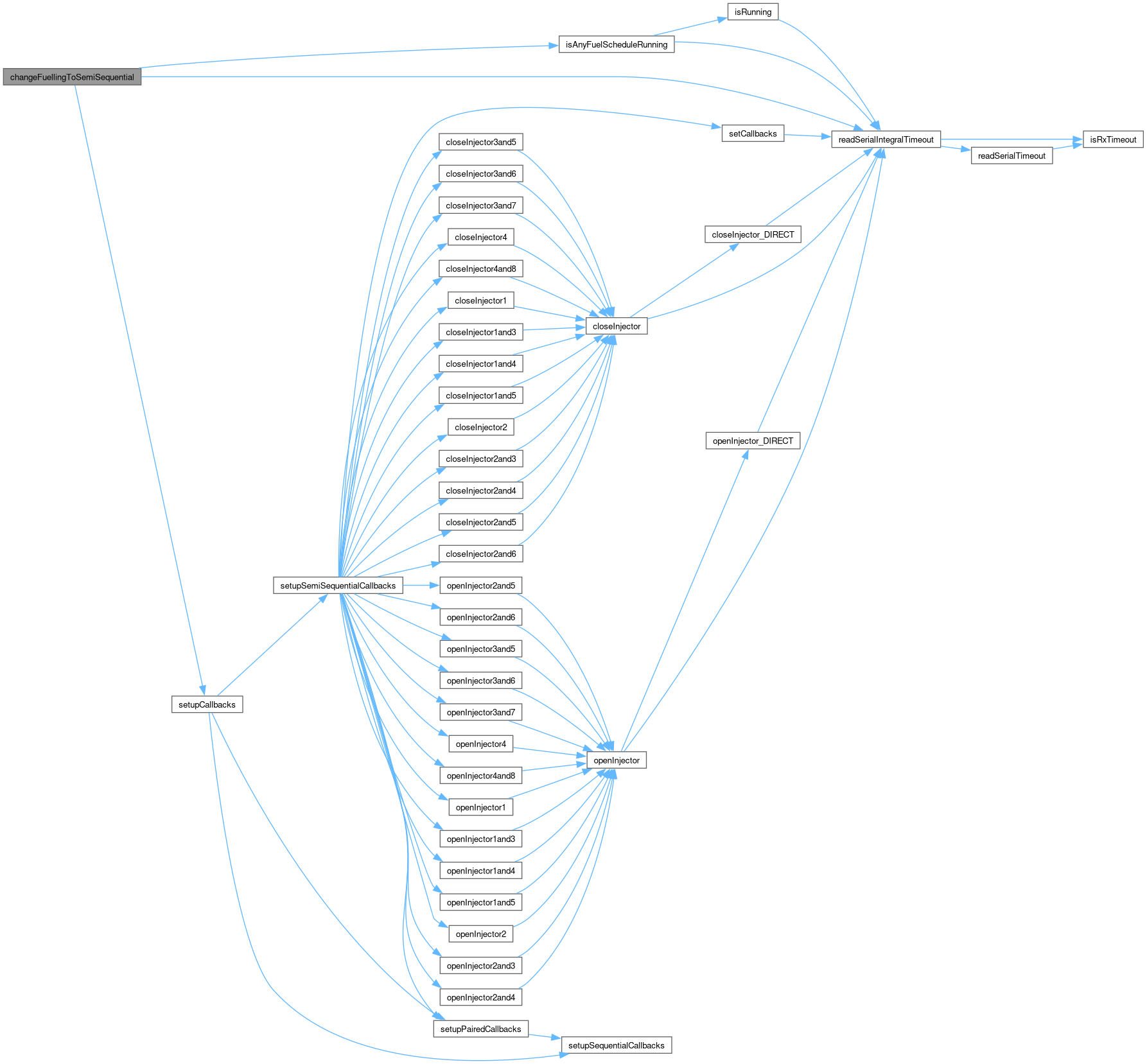

changeFuellingToSemiSequential()

static void changeFuellingToSemiSequential ( const config2 &  page2, const config4 &  page4, const config10 &  page10, statuses &  current  )

inlinestatic

changeToFullSequentialInjection()

TESTABLE_INLINE_STATIC bool changeToFullSequentialInjection	(	const statuses &	current,
		const config2 &	page2
	)

changeToSemiSequentialInjection()

TESTABLE_INLINE_STATIC bool changeToSemiSequentialInjection	(	const statuses &	current,
		const config2 &	page2
	)

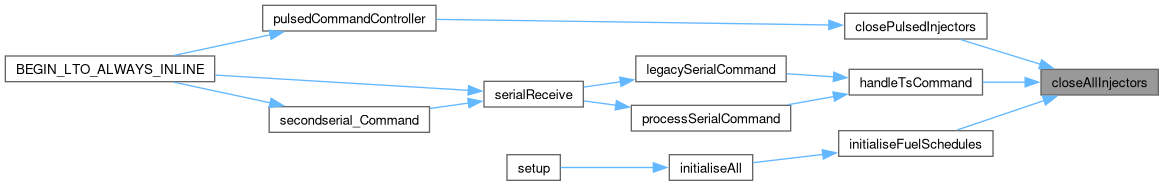

closeAllInjectors()

void closeAllInjectors

(

void

)

Utility function to close all injectors.

configureFuelSchedules()

void configureFuelSchedules	(	statuses &	current,
		const config2 &	page2,
		const config4 &	page4,
		const config10 &	page10
	)

getEvenFireAngle()

TESTABLE_INLINE_STATIC uint16_t getEvenFireAngle	(	const statuses &	current,
		const config2 &	page2,
		uint8_t	channel
	)

getOddfireAngle()

TESTABLE_INLINE_STATIC uint16_t getOddfireAngle	(	const config2 &	page2,
		uint8_t	channel
	)

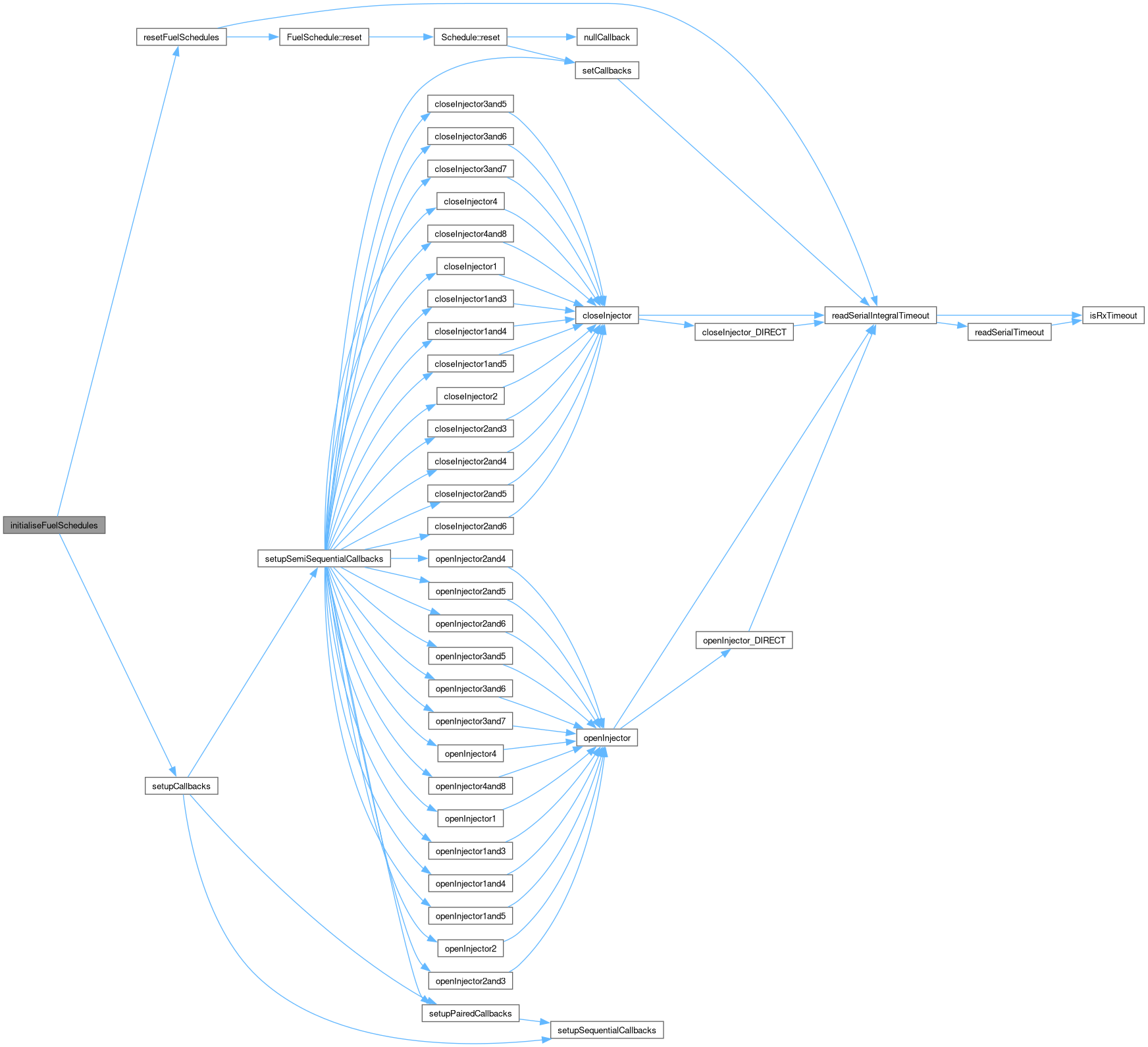

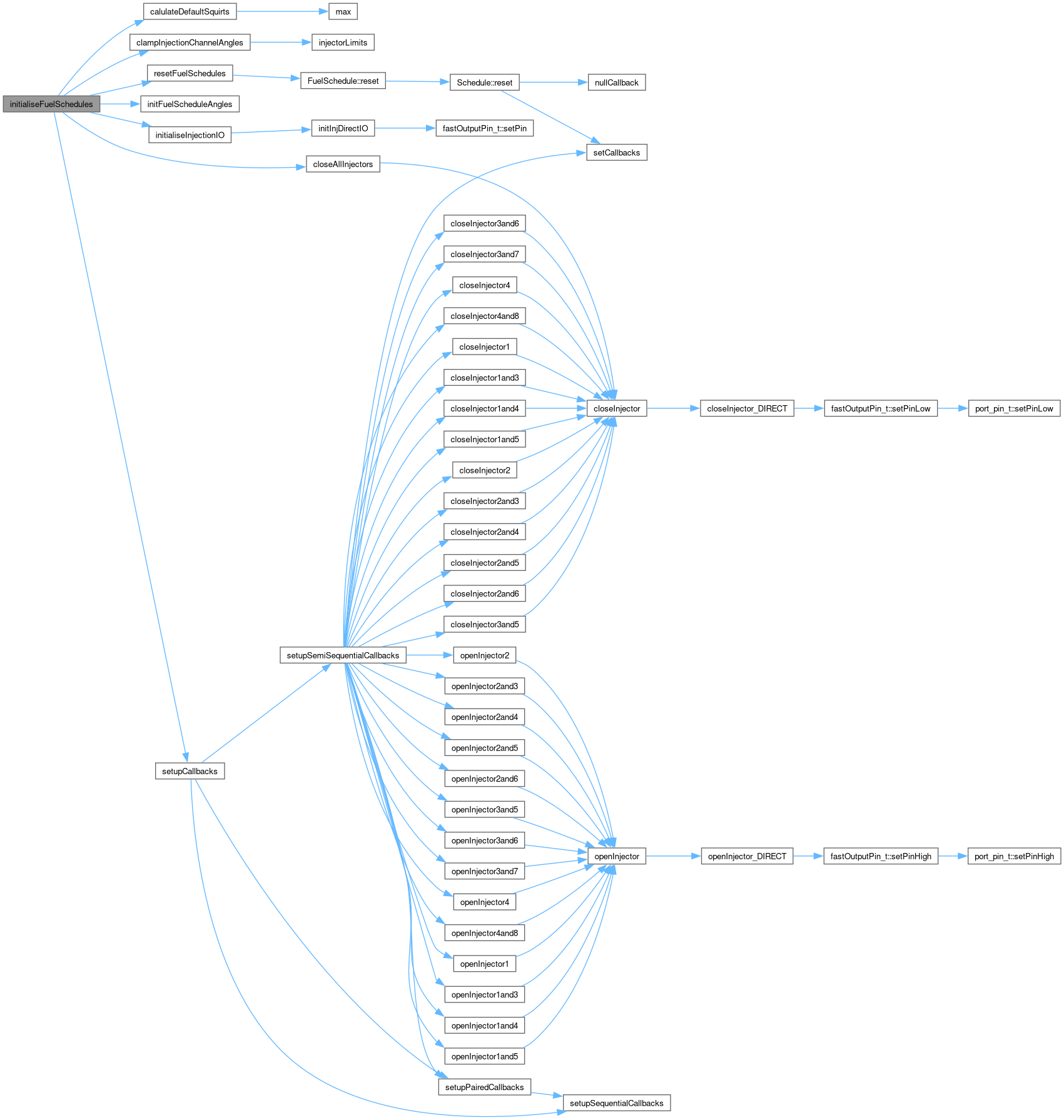

initialiseFuelSchedules()

void initialiseFuelSchedules	(	statuses &	current,
		config2 &	page2,
		const config4 &	page4,
		config6 &	page6,
		config10 &	page10,
		const pinNumbers_t &	pins
	)

Initialise this module.

injectorLimits()

TESTABLE_INLINE_STATIC uint16_t injectorLimits

(

uint16_t

angle

)

Clamp the angle to within [0,CRANK_ANGLE_MAX_INJ)

isAnyFuelScheduleRunning()

TESTABLE_INLINE_STATIC bool isAnyFuelScheduleRunning

(

void

)

isSwitchableConfig()

static bool isSwitchableConfig ( const config2 &  page2 )

inlinestatic

lookupInjectorAngle()

TESTABLE_INLINE_STATIC uint16_t lookupInjectorAngle

(

const statuses &

current

)

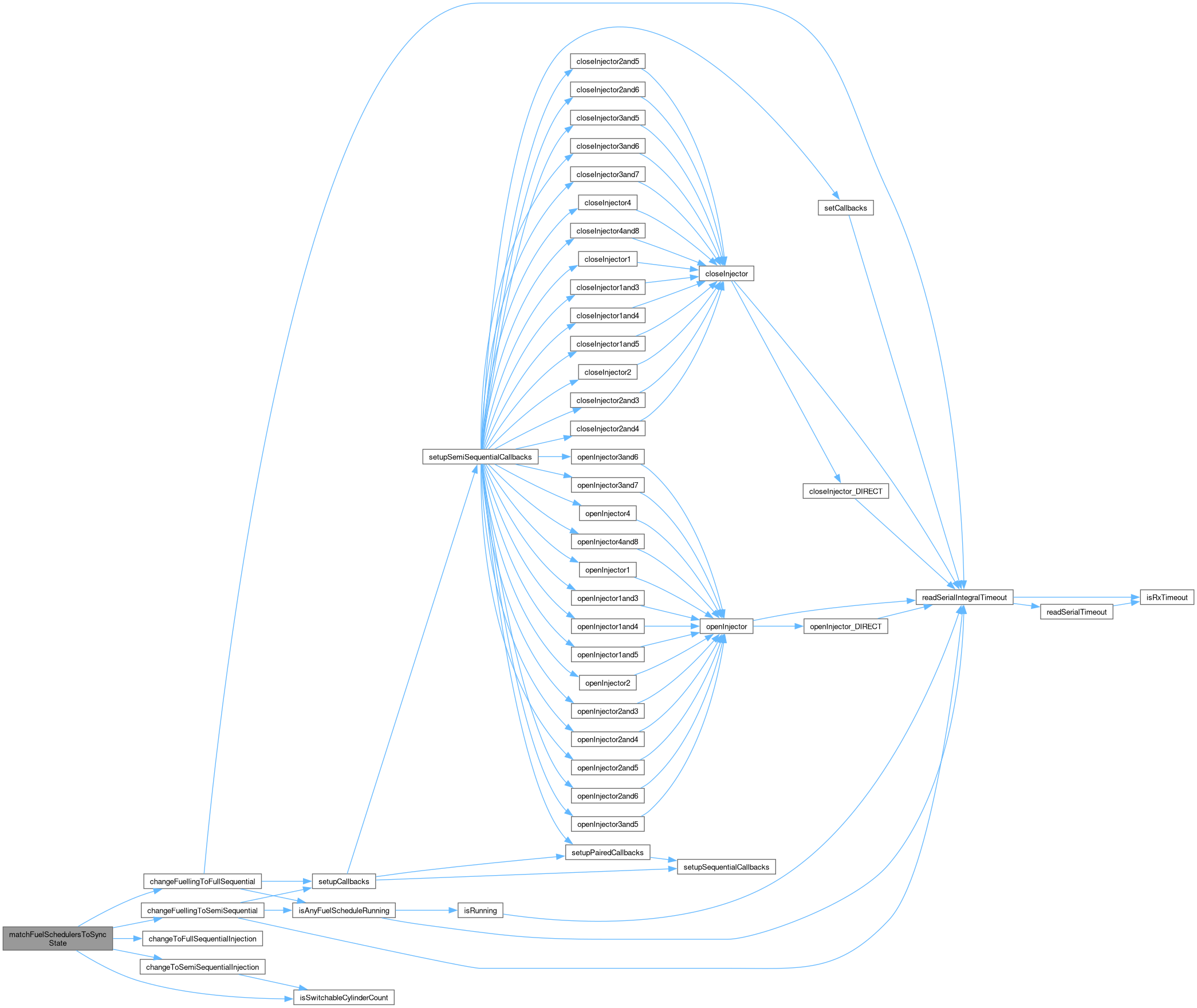

matchFuelSchedulersToSyncState()

TESTABLE_STATIC void matchFuelSchedulersToSyncState	(	const config2 &	page2,
		const config4 &	page4,
		const config10 &	page10,
		statuses &	current
	)

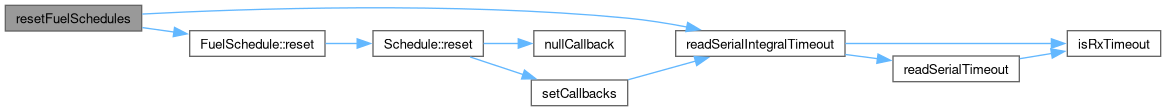

resetFuelSchedules()

static void resetFuelSchedules ( void  )

static

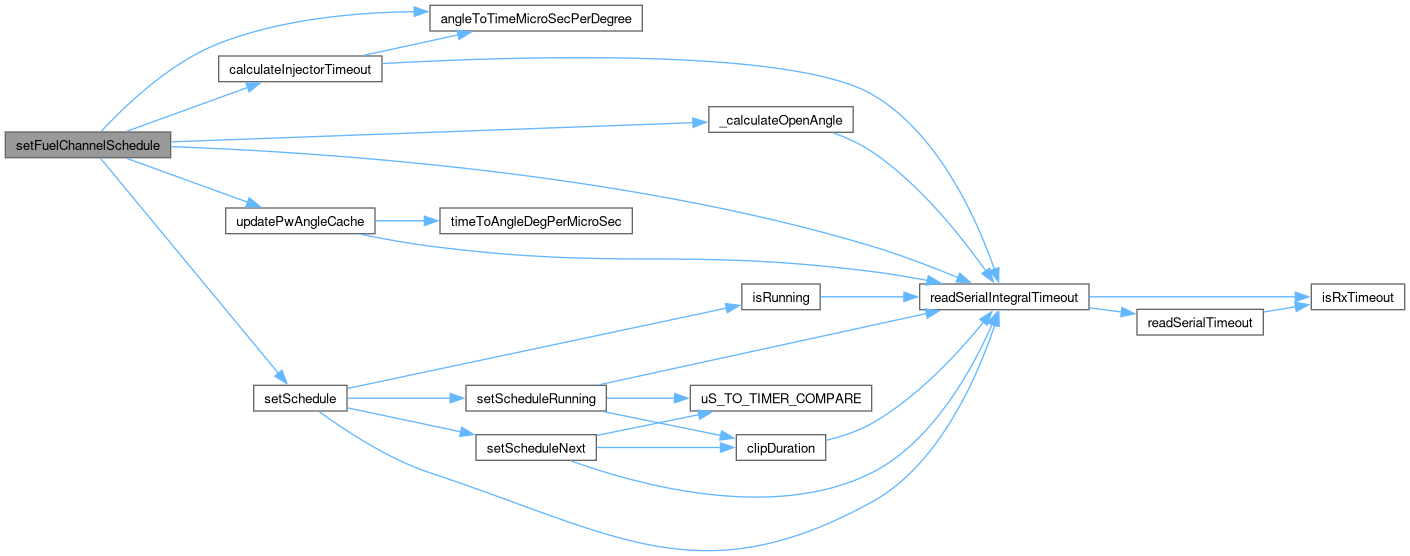

setFuelChannelSchedule()

TESTABLE_INLINE_STATIC void setFuelChannelSchedule ( FuelSchedule &  schedule, uint8_t  channel, uint16_t  crankAngle, byte  injChannelMask, uint16_t  injAngle, injectorAngleCalcCache *  pCache  )

noexcept

setFuelChannelSchedules()

TESTABLE_INLINE_STATIC uint16_t setFuelChannelSchedules	(	uint16_t	crankAngle,
		byte	injChannelMask,
		uint16_t	injAngle
	)

setInjectorAngles()

static void setInjectorAngles ( const statuses &  current, const config2 &  page2  )

inlinestatic

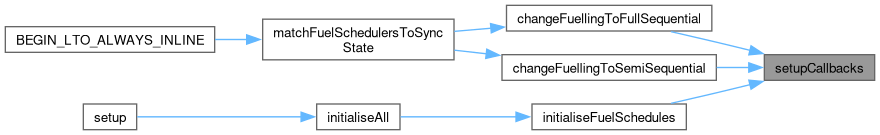

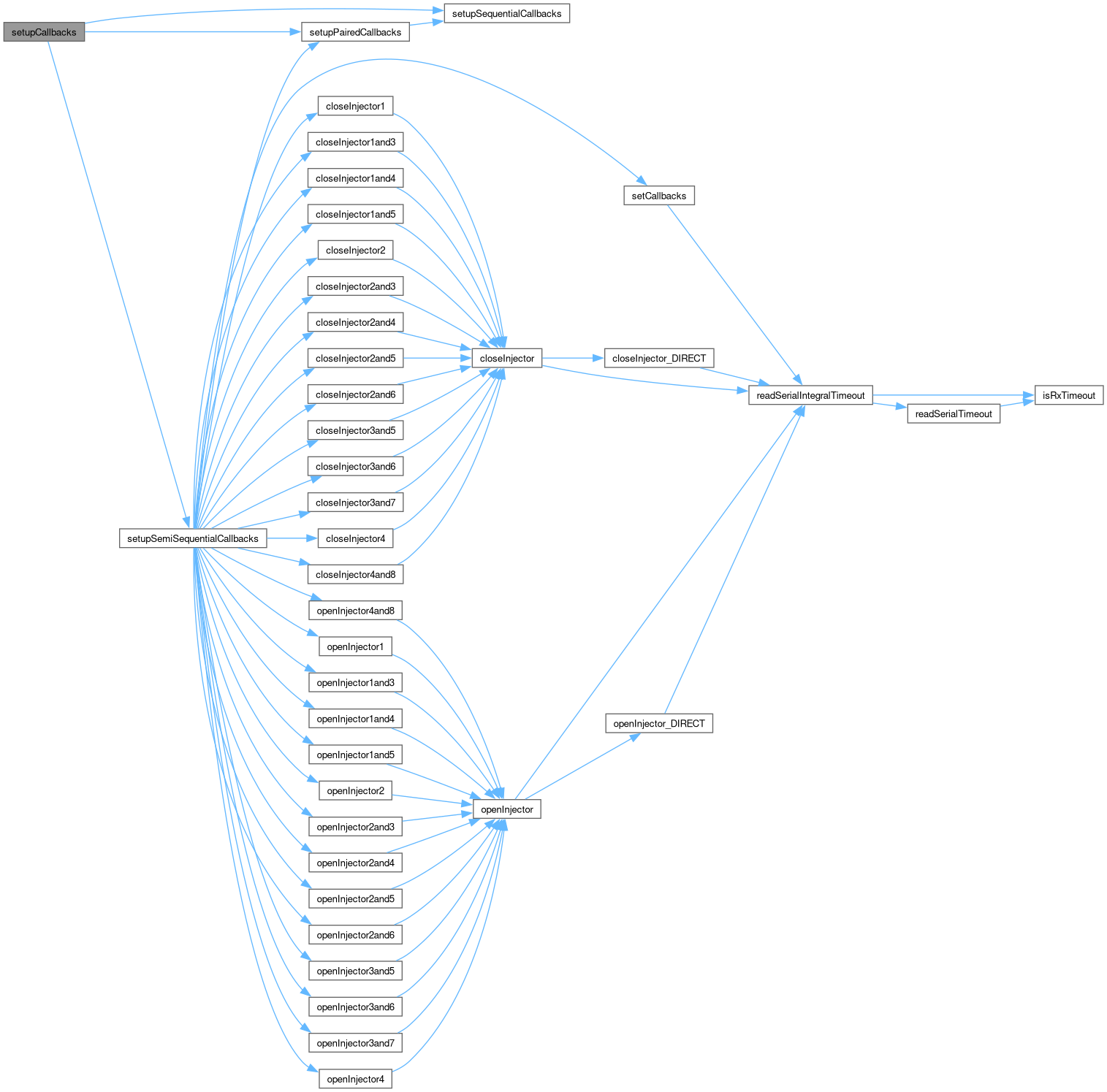

setupCallbacks()

static void setupCallbacks ( uint8_t  injLayout, uint8_t  nCylinders, uint8_t  inj4cylPairing  )

static

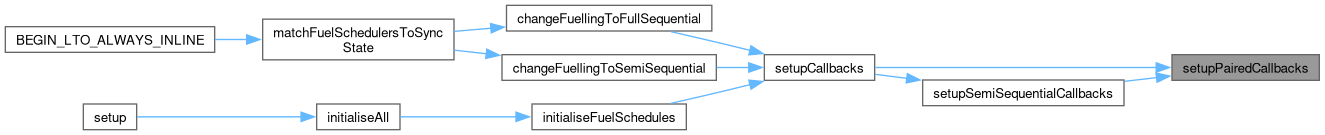

setupPairedCallbacks()

static void setupPairedCallbacks ( void  )

static

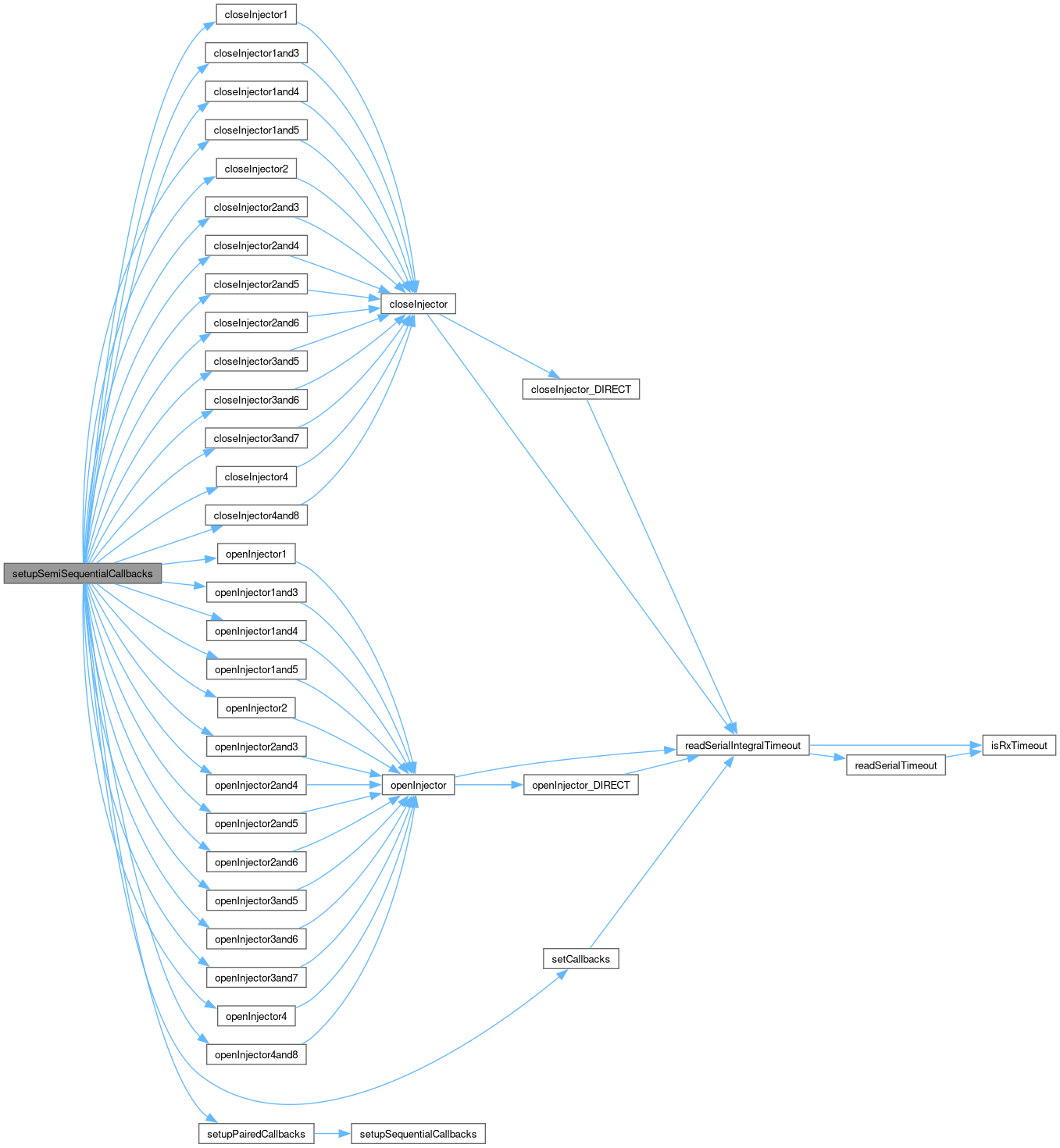

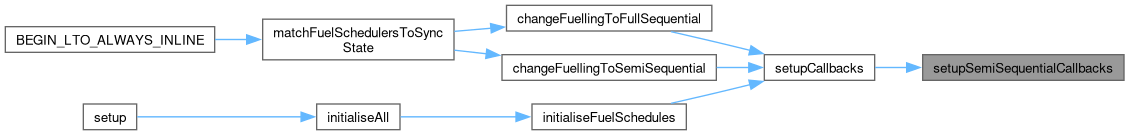

setupSemiSequentialCallbacks()

static void setupSemiSequentialCallbacks ( uint8_t  nCylinders, uint8_t  inj4cylPairing  )

static

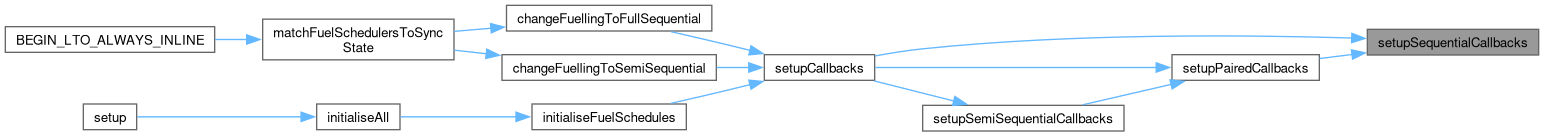

setupSequentialCallbacks()

static void setupSequentialCallbacks ( void  )

static

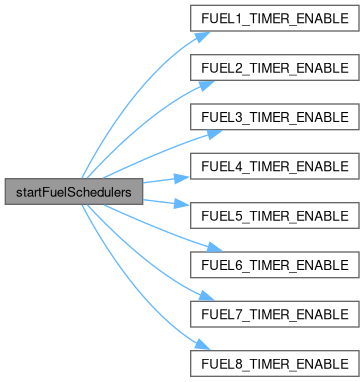

startFuelSchedulers()

void startFuelSchedulers

(

void

)

Start the timers that drive schedulers.

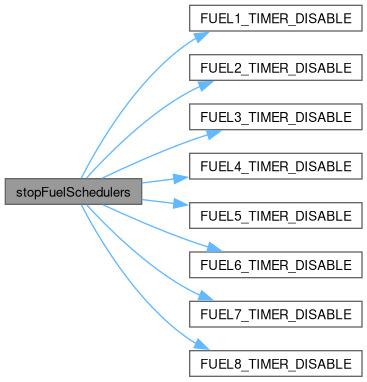

stopFuelSchedulers()

void stopFuelSchedulers

(

void

)

Stop the timers that drive schedulers.

updatePwAngleCache()

TESTABLE_INLINE_STATIC uint16_t updatePwAngleCache	(	uint16_t	pw,
		injectorAngleCalcCache *	pCache
	)

useEvenFire()

TESTABLE_INLINE_STATIC bool useEvenFire

(

const config2 &

page2

)

validateInjectionSetup()

TESTABLE_STATIC void validateInjectionSetup	(	config2 &	page2,
		config6 &	page6
	)

validateInjLayout()

static uint8_t validateInjLayout ( uint8_t  layout, const config2 &  page2  )

static

zeroAllChannels()

zeroAllChannels ( void  )

inlinestatic

Variable Documentation

configPage2

TESTABLE_CONSTEXPR table2D_u8_u8_4 PrimingPulseTable& configPage2

current

const config2 const config4 const config6 const config10 statuses& current

Initial value:

{
  matchFuelSchedulersToSyncState(page2, page4, page10, current)

fuelSchedule1

FuelSchedule fuelSchedule1(FUEL1_COUNTER, FUEL1_COMPARE)	(	FUEL1_COUNTER	,
		FUEL1_COMPARE
	)

page10

const config2 const config4 const config6 const config10& page10

page2

const config2& page2

page4

const config2 const config4& page4

page6

const config2 const config4 const config6& page6
