3D Tables

Structures and functions related to 3D tables, such as VE, Spark Advance, AFR etc. More...

Files
file	table3d.h
	3D table data types and functions
file	table3d_axes.h
	3D table axis types and iterators
file	table3d_typedefs.h
	Typedefs for primitive 3D table elements.

Classes
struct	table3d_t

Macros
#define	TO_TYPE_KEY(size, xDom, yDom)   table3d ## size ## xDom ## yDom ## _key
#define	TABLE3D_GEN_TYPE_INNER(size, xDom, yDom, typeName)
#define	TABLE3D_GEN_TYPE(size, xDom, yDom)   TABLE3D_GEN_TYPE_INNER(size, xDom, yDom, TABLE3D_TYPENAME_BASE(size, xDom, yDom))
#define	TABLE3D_GENERATOR(GENERATOR, ...)
	Core 3d table generation macro.
#define	TABLE3D_TYPENAME_BASE(size, xDom, yDom)   table3d ## size ## xDom ## yDom

Typedefs
using	table3d_dim_t = uint8_t
	Encodes the length of the axes.
using	table3d_value_t = uint8_t
	The type of each table value.
using	table3d_axis_t = uint8_t
	The type of each axis value.

Enumerations
enum class	TableType : uint8_t { TableType::table_type_None }
	Table type identifiers. Limited compile time RTTI. More...
enum class	AxisDomain : uint8_t { AxisDomain::Rpm , AxisDomain::Load }
	Encodes the real world measurement that a table axis captures. More...

Functions
	TABLE3D_GEN_TYPE_INNER (6, Rpm, Load, TABLE3D_TYPENAME_BASE(6, Rpm, Load))) TABLE3D_GEN_TYPE_INNER(4
	TABLE3D_TYPENAME_BASE (4, Rpm, Load))) TABLE3D_GEN_TYPE_INNER(8
	TABLE3D_TYPENAME_BASE (8, Rpm, Load))) TABLE3D_GEN_TYPE_INNER(16
	TABLE3D_TYPENAME_BASE (16, Rpm, Load))) template< typename TTable > static inline table3d_value_t get3DTableValue(const TTable *pTable
return	get3DTableValue< xFactor, yFactor > (&pTable->get_value_cache, pTable->values, pTable->axisX, pTable->axisY, { x, y })
static constexpr uint16_t	getConversionFactor (AxisDomain domain)

Variables
	Rpm
	Load
const uint16_t	y
const uint16_t const uint16_t x	noexcept
constexpr uint16_t	yFactor = getConversionFactor(TTable::YDomain)

Detailed Description

Structures and functions related to 3D tables, such as VE, Spark Advance, AFR etc.

Logical:

• each 3D table is a continuous height map spread over a cartesian (x, y) plane
  • Continuous: we expect to interpolate between any 4 points
• The axes are
  • Bounded. I.e. non-infinite
  • Non-linear. I.e. x[n]-x[n-1] != x[n+1]-x[n]
  • Increasing. I.e. x[n] >= x[n-1]
  • Do not have to start at [0,0]

E.g. for a 3x3 table, this is what the TS table editor would show:

     Y-Max    V6      V7      V8
     Y-Int    V3      V4      V5
     Y-Min    V0      V1      V2
             X-Min   X-Int   X-Max

In memory, we store rows in reverse:

• Both axes are inverted:
  • x[0] stores X-Max
  • x[2] stores X-Min
  • y[0] stores Y-Max
  • y[2] stores Y-Min
• The value locations match the axes.
  • value[0][0] stores V6.
  • value[2][0] stores V0.

I.e.

     Y-Min    V0      V1      V2
     Y-Int    V3      V4      V5
     Y-Max    V6      V7      V8
             X-Min   X-Int   X-Max

Macro Definition Documentation

TABLE3D_GEN_TYPE

#define TABLE3D_GEN_TYPE	(		size,
			xDom,
			yDom
	)		TABLE3D_GEN_TYPE_INNER(size, xDom, yDom, TABLE3D_TYPENAME_BASE(size, xDom, yDom))

TABLE3D_GEN_TYPE_INNER

#define TABLE3D_GEN_TYPE_INNER	(		size,
			xDom,
			yDom,
			typeName
	)

Value:

 \
    struct typeName : public table3d_t \
    { \
        /* This will take up zero space unless we take the address somewhere */ \
        static constexpr TableType type_key = TableType::TO_TYPE_KEY(size, xDom, yDom); \
        static constexpr AxisDomain XDomain = AxisDomain::xDom; \
        static constexpr AxisDomain YDomain = AxisDomain::yDom; \
        \
        mutable table3DGetValueCache get_value_cache; \
        std::array<table3d_axis_t, (size)*(size)> values; \
        std::array<table3d_axis_t, (size)> axisX; \
        std::array<table3d_axis_t, (size)> axisY; \
    };

TABLE3D_GENERATOR

#define TABLE3D_GENERATOR	(		GENERATOR,
			...
	)

Value:

    GENERATOR(6, Rpm, Load, ##__VA_ARGS__) \
    GENERATOR(4, Rpm, Load, ##__VA_ARGS__) \
    GENERATOR(8, Rpm, Load, ##__VA_ARGS__) \
    GENERATOR(16, Rpm, Load, ##__VA_ARGS__)

Core 3d table generation macro.

We have a fixed number of table types: they are defined by this macro. GENERATOR is expected to be another macros that takes at least 3 arguments: axis length, x-axis domain, y-axis domain

TABLE3D_TYPENAME_BASE

#define TABLE3D_TYPENAME_BASE	(		size,
			xDom,
			yDom
	)		table3d ## size ## xDom ## yDom

TO_TYPE_KEY

#define TO_TYPE_KEY	(		size,
			xDom,
			yDom
	)		table3d ## size ## xDom ## yDom ## _key

Typedef Documentation

table3d_axis_t

using table3d_axis_t = uint8_t

The type of each axis value.

table3d_dim_t

using table3d_dim_t = uint8_t

Encodes the length of the axes.

table3d_value_t

using table3d_value_t = uint8_t

The type of each table value.

Enumeration Type Documentation

AxisDomain

enum class AxisDomain : uint8_t

strong

Encodes the real world measurement that a table axis captures.

Enumerator
Rpm	RPM (engine speed)
Load	Load

TableType

enum class TableType : uint8_t

strong

Table type identifiers. Limited compile time RTTI.

With no virtual functions (they have quite a bit of overhead in both space & time), we have to pass void* around in certain cases. In order to cast that back to a concrete table type, we need to somehow identify the type.

Once approach is to register each type - but that requires a central registry which will use RAM.

Since we have a compile time fixed set of table types, we can map a unique identifier to the type via a cast - this enum is that unique identifier.

Typically used in conjunction with visitTable3d()

Enumerator
table_type_None

Function Documentation

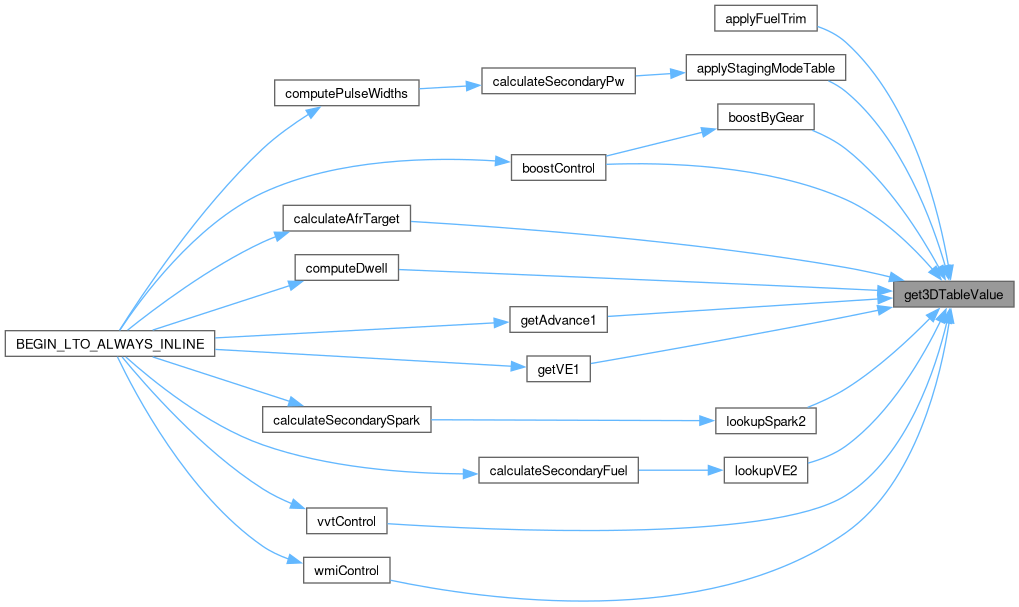

get3DTableValue< xFactor, yFactor >()

return get3DTableValue< xFactor, yFactor >	(	&pTable->	get_value_cache,
		pTable->	values,
		pTable->	axisX,
		pTable->	axisY,
		{ x, y }
	)

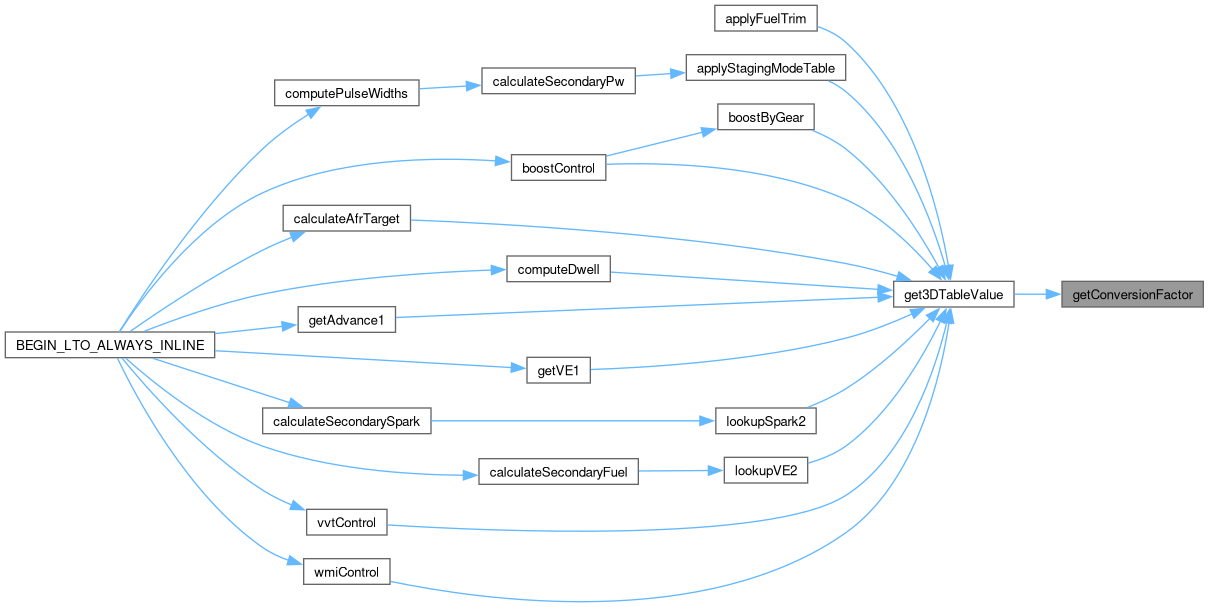

getConversionFactor()

static constexpr uint16_t getConversionFactor ( AxisDomain  domain )

staticconstexpr

TABLE3D_GEN_TYPE_INNER()

TABLE3D_GEN_TYPE_INNER	(	6	,
		Rpm	,
		Load	,
		TABLE3D_TYPENAME_BASE(6, Rpm, Load)
	)

TABLE3D_TYPENAME_BASE() [1/3]

TABLE3D_TYPENAME_BASE	(	16	,
		Rpm	,
		Load
	)		const

TABLE3D_TYPENAME_BASE() [2/3]

TABLE3D_TYPENAME_BASE	(	4	,
		Rpm	,
		Load
	)

TABLE3D_TYPENAME_BASE() [3/3]

TABLE3D_TYPENAME_BASE	(	8	,
		Rpm	,
		Load
	)

Variable Documentation

Load

Load

noexcept

const uint16_t const uint16_t x noexcept

Initial value:

{
    constexpr uint16_t xFactor = getConversionFactor(TTable::XDomain)

Rpm

Rpm

y

const uint16_t y

yFactor

constexpr uint16_t yFactor = getConversionFactor(TTable::YDomain)

constexpr
