scheduler.cpp File Reference

#include "globals.h"
#include "scheduler.h"
#include "scheduledIO.h"
#include "timers.h"
#include "schedule_calcs.h"
#include "preprocessor.h"
#include "units.h"

Macros
#define	DWELL_AVERAGE_ALPHA   30
#define	DWELL_AVERAGE(input)   LOW_PASS_FILTER((input), DWELL_AVERAGE_ALPHA, currentStatus.actualDwell)

Functions
static void	reset (Schedule &schedule)
static void	reset (FuelSchedule &schedule)
static void	reset (IgnitionSchedule &schedule)
void	initialiseFuelSchedulers (void)
void	initialiseIgnitionSchedulers (void)
void	startIgnitionSchedulers (void)
void	stopIgnitionSchedulers (void)
void	startFuelSchedulers (void)
void	stopFuelSchedulers (void)
void	setCallbacks (Schedule &schedule, voidVoidCallback pStartCallback, voidVoidCallback pEndCallback)
	Set the schedule action start & end callbacks.
static uint16_t	clipDuration (uint16_t duration)
static void	setScheduleNext (Schedule &schedule, uint32_t delay, uint16_t duration)
static void	setScheduleRunning (Schedule &schedule, uint32_t delay, uint16_t duration)
void	setSchedule (Schedule &schedule, uint32_t delay, uint16_t duration, bool allowQueuedSchedule)
	Set the schedule action to run for a certain duration in the future.
void	refreshIgnitionSchedule1 (unsigned long timeToEnd)
void	beginInjectorPriming (void)
static void	fuelScheduleISR (FuelSchedule &schedule)
void	fuelSchedule1Interrupt ()
void	fuelSchedule2Interrupt ()
void	fuelSchedule3Interrupt ()
void	fuelSchedule4Interrupt ()
static void	ignitionScheduleISR (IgnitionSchedule &schedule)
void	ignitionSchedule1Interrupt (void)
static void	disableSchedule (Schedule &schedule)
void	disableFuelSchedule (uint8_t channel)
void	disableIgnSchedule (uint8_t channel)
void	disableAllFuelSchedules (void)
void	disableAllIgnSchedules (void)

Variables
FuelSchedule	fuelSchedule1 (FUEL1_COUNTER, FUEL1_COMPARE)
FuelSchedule	fuelSchedule2 (FUEL2_COUNTER, FUEL2_COMPARE)
FuelSchedule	fuelSchedule3 (FUEL3_COUNTER, FUEL3_COMPARE)
FuelSchedule	fuelSchedule4 (FUEL4_COUNTER, FUEL4_COMPARE)
IgnitionSchedule	ignitionSchedule1 (IGN1_COUNTER, IGN1_COMPARE)
IgnitionSchedule	ignitionSchedule2 (IGN2_COUNTER, IGN2_COMPARE)
IgnitionSchedule	ignitionSchedule3 (IGN3_COUNTER, IGN3_COMPARE)
IgnitionSchedule	ignitionSchedule4 (IGN4_COUNTER, IGN4_COMPARE)
IgnitionSchedule	ignitionSchedule5 (IGN5_COUNTER, IGN5_COMPARE)
static table2D_u8_u8_4 PrimingPulseTable &	configPage2

Detailed Description

Injector and Ignition (on/off) scheduling (functions). There is usually 8 functions for cylinders 1-8 with same naming pattern.

Scheduling structures

Structures FuelSchedule and Schedule describe (from scheduler.h) describe the scheduling info for Fuel and Ignition respectively. They contain duration, current activity status, start timing, end timing, callbacks to carry out action, etc.

Scheduling Functions

For Injection:

• setFuelSchedule*(tout,dur) - Setup schedule for (next) injection on the channel
• inj*StartFunction() - Execute start of injection (Interrupt handler)
• inj*EndFunction() - Execute end of injection (interrupt handler)

For Ignition (has more complex schedule setup):

• setIgnitionSchedule*(cb_st,tout,dur,cb_end) - Setup schedule for (next) ignition on the channel
• ign*StartFunction() - Execute start of ignition (Interrupt handler)
• ign*EndFunction() - Execute end of ignition (Interrupt handler)

Macro Definition Documentation

DWELL_AVERAGE

#define DWELL_AVERAGE

(

input

)

LOW_PASS_FILTER((input), DWELL_AVERAGE_ALPHA, currentStatus.actualDwell)

DWELL_AVERAGE_ALPHA

#define DWELL_AVERAGE_ALPHA   30

Function Documentation

beginInjectorPriming()

void beginInjectorPriming

(

void

)

Perform the injector priming pulses. Set these to run at an arbitrary time in the future (100us). The prime pulse value is in ms*10, so need to multiple by 100 to get to uS

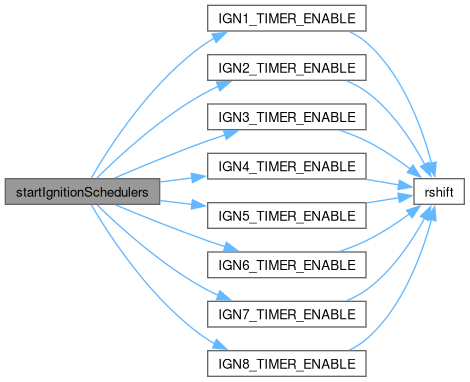

Here is the call graph for this function:

Here is the caller graph for this function:

clipDuration()

static uint16_t clipDuration ( uint16_t  duration )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

disableAllFuelSchedules()

void disableAllFuelSchedules

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

disableAllIgnSchedules()

void disableAllIgnSchedules

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

disableFuelSchedule()

void disableFuelSchedule

(

uint8_t

channel

)

Here is the call graph for this function:

Here is the caller graph for this function:

disableIgnSchedule()

void disableIgnSchedule

(

uint8_t

channel

)

Here is the call graph for this function:

Here is the caller graph for this function:

disableSchedule()

static void disableSchedule ( Schedule &  schedule )

static

Here is the call graph for this function:

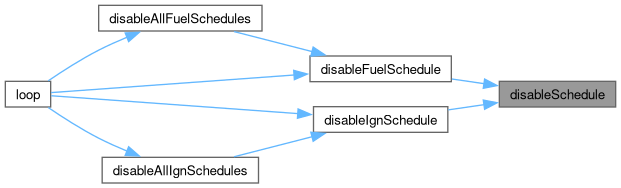

Here is the caller graph for this function:

fuelSchedule1Interrupt()

void fuelSchedule1Interrupt

(

)

fuelSchedule*Interrupt (All 8 ISR functions below) get called (as timed interrupts) when either the start time or the duration time are reached. This calls the relevant callback function (startCallback or endCallback) depending on the status (PENDING => Needs to run, RUNNING => Needs to stop) of the schedule. The status of schedule is managed here based on startCallback /endCallback function called:

• startCallback - change scheduler into RUNNING state
• endCallback - change scheduler into OFF state (or PENDING if schedule.hasNextSchedule is set)

Here is the call graph for this function:

fuelSchedule2Interrupt()

void fuelSchedule2Interrupt

(

)

Here is the call graph for this function:

fuelSchedule3Interrupt()

void fuelSchedule3Interrupt

(

)

Here is the call graph for this function:

fuelSchedule4Interrupt()

void fuelSchedule4Interrupt

(

)

Here is the call graph for this function:

fuelScheduleISR()

static void fuelScheduleISR ( FuelSchedule &  schedule )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

ignitionSchedule1Interrupt()

void ignitionSchedule1Interrupt

(

void

)

Here is the call graph for this function:

ignitionScheduleISR()

static void ignitionScheduleISR ( IgnitionSchedule &  schedule )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

initialiseFuelSchedulers()

void initialiseFuelSchedulers

(

void

)

< The number of crank degrees until cylinder 1 is at TDC (This is obviously 0 for virtually ALL engines, but there's some weird ones)

< The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

< The number of crank degrees until cylinder 3 (and 5/6/7/8) is at TDC

< The number of crank degrees until cylinder 4 (and 5/6/7/8) is at TDC

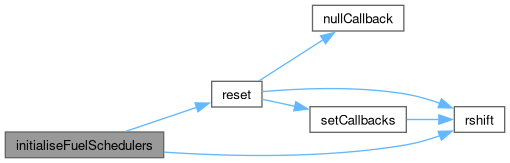

Here is the call graph for this function:

Here is the caller graph for this function:

initialiseIgnitionSchedulers()

void initialiseIgnitionSchedulers

(

void

)

< The number of crank degrees until cylinder 1 is at TDC (This is obviously 0 for virtually ALL engines, but there's some weird ones)

< The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

< The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

< The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

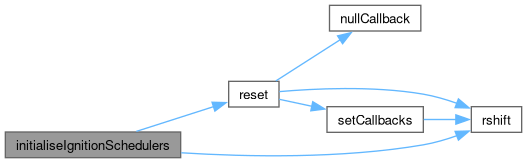

Here is the call graph for this function:

Here is the caller graph for this function:

refreshIgnitionSchedule1()

void refreshIgnitionSchedule1

(

unsigned long

timeToEnd

)

Here is the call graph for this function:

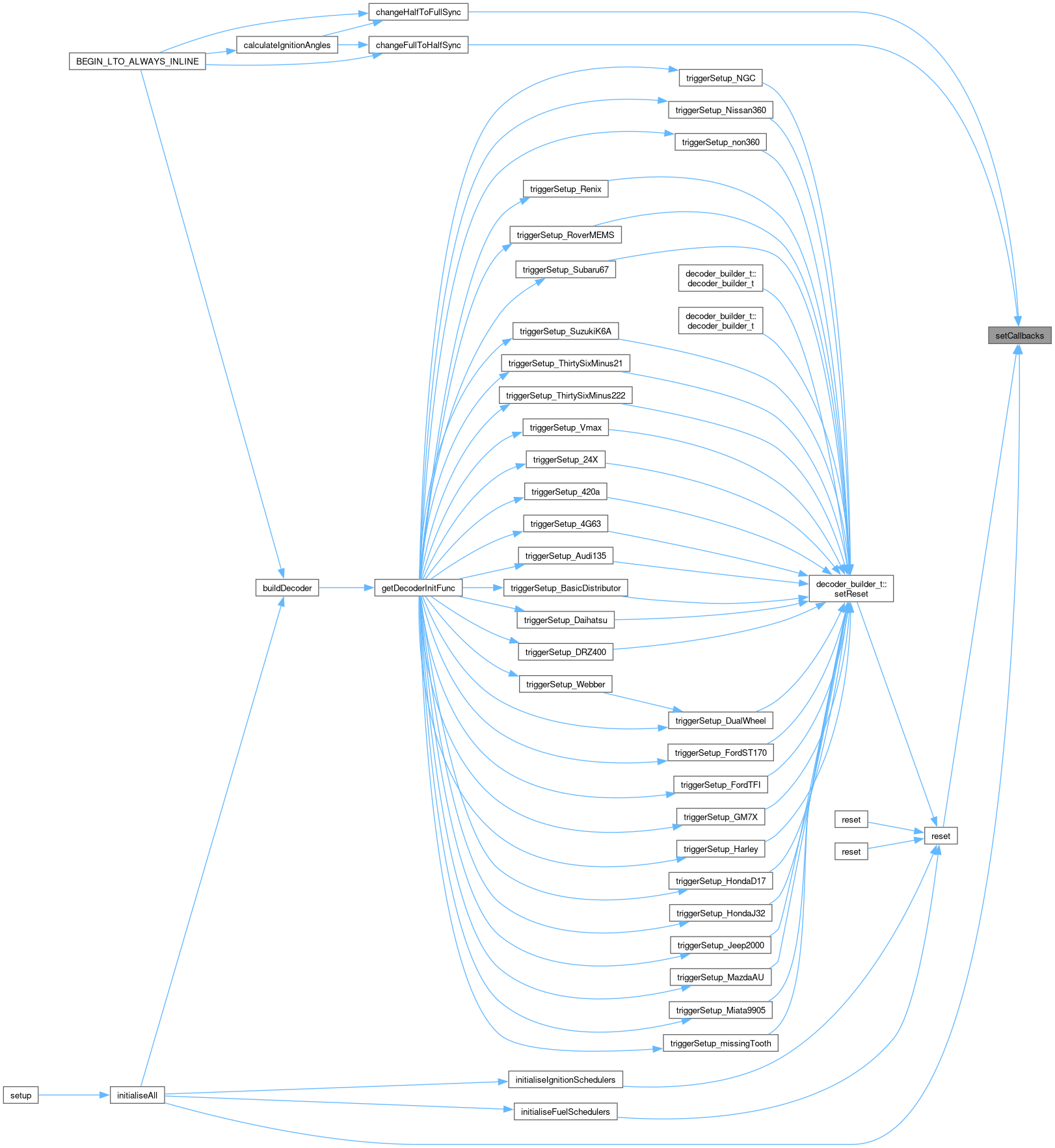

Here is the caller graph for this function:

reset() [1/3]

static void reset ( FuelSchedule &  schedule )

inlinestatic

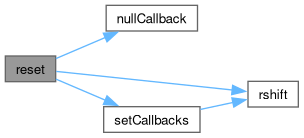

Here is the call graph for this function:

reset() [2/3]

static void reset ( IgnitionSchedule &  schedule )

inlinestatic

Here is the call graph for this function:

reset() [3/3]

static void reset ( Schedule &  schedule )

static

Here is the call graph for this function:

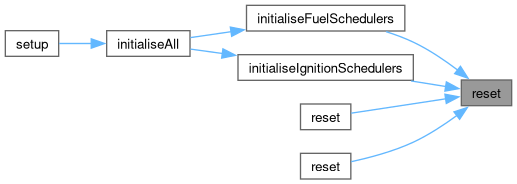

Here is the caller graph for this function:

setCallbacks()

void setCallbacks	(	Schedule &	schedule,
		voidVoidCallback	pStartCallback,
		voidVoidCallback	pEndCallback
	)

Set the schedule action start & end callbacks.

Parameters

schedule	Schedule to modify
pStartCallback	Start callback
pEndCallback	End callback

Here is the call graph for this function:

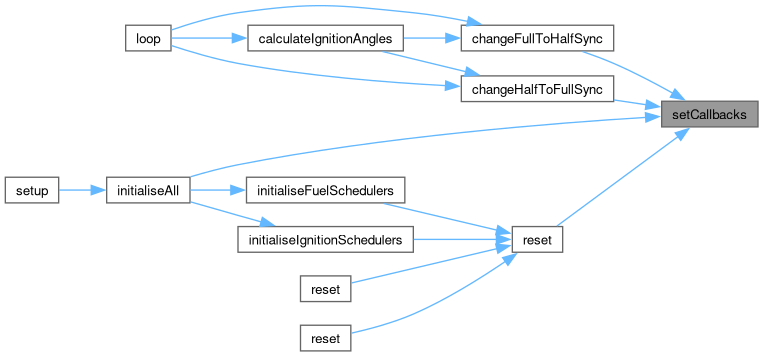

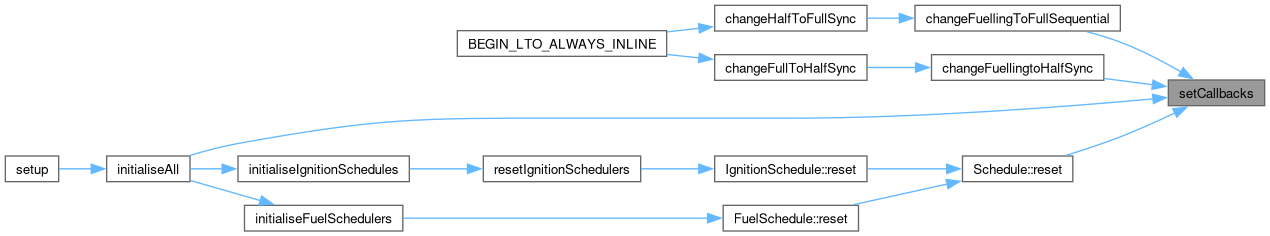

Here is the caller graph for this function:

setSchedule()

void setSchedule	(	Schedule &	schedule,
		uint32_t	delay,
		uint16_t	duration,
		bool	allowQueuedSchedule
	)

Set the schedule action to run for a certain duration in the future.

Parameters

schedule	Schedule to modify
delay	Delay until the action starts (µS)
duration	Action duration (µS)
allowQueuedSchedule	true to allow a schedule to be queued up if one is currently running; false otherwise

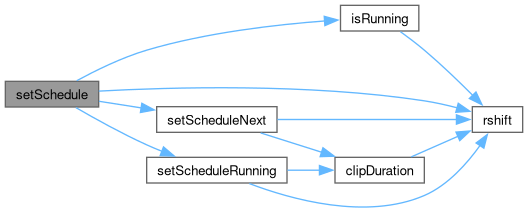

Here is the call graph for this function:

Here is the caller graph for this function:

setScheduleNext()

static void setScheduleNext ( Schedule &  schedule, uint32_t  delay, uint16_t  duration  )

inlinestatic

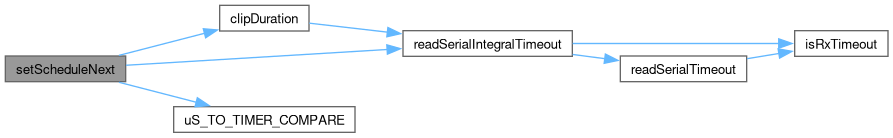

Here is the call graph for this function:

Here is the caller graph for this function:

setScheduleRunning()

static void setScheduleRunning ( Schedule &  schedule, uint32_t  delay, uint16_t  duration  )

inlinestatic

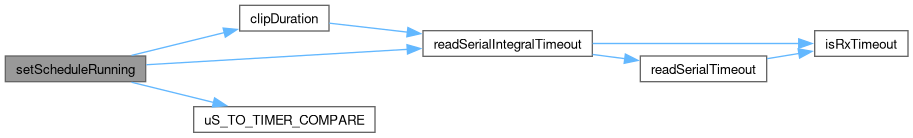

Here is the call graph for this function:

Here is the caller graph for this function:

startFuelSchedulers()

void startFuelSchedulers

(

void

)

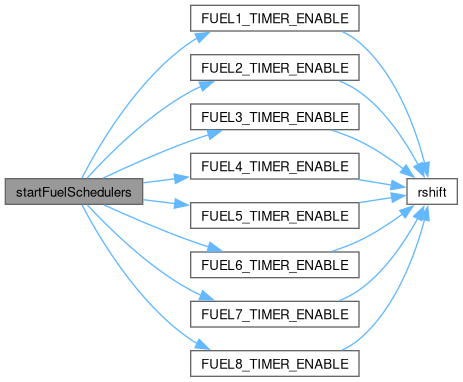

Here is the call graph for this function:

Here is the caller graph for this function:

startIgnitionSchedulers()

void startIgnitionSchedulers

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

stopFuelSchedulers()

void stopFuelSchedulers

(

void

)

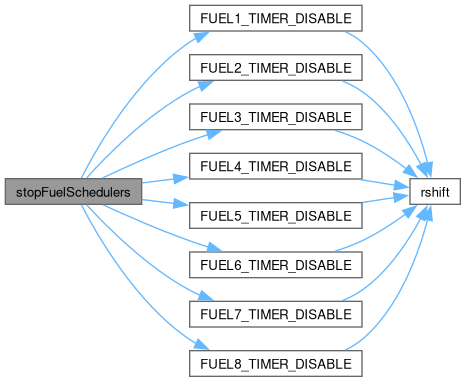

Here is the call graph for this function:

stopIgnitionSchedulers()

void stopIgnitionSchedulers

(

void

)

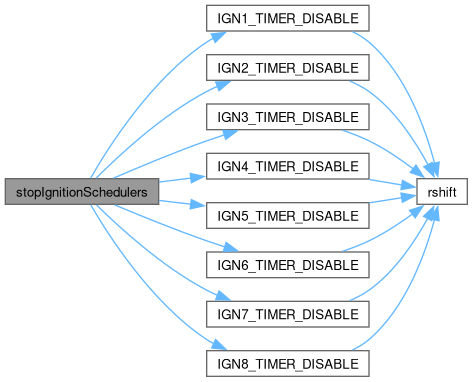

Here is the call graph for this function:

Variable Documentation

configPage2

table2D_u8_u8_4 PrimingPulseTable& configPage2

static

fuelSchedule1

FuelSchedule fuelSchedule1(FUEL1_COUNTER, FUEL1_COMPARE)	(	FUEL1_COUNTER	,
		FUEL1_COMPARE
	)

fuelSchedule2

FuelSchedule fuelSchedule2(FUEL2_COUNTER, FUEL2_COMPARE)	(	FUEL2_COUNTER	,
		FUEL2_COMPARE
	)

fuelSchedule3

FuelSchedule fuelSchedule3(FUEL3_COUNTER, FUEL3_COMPARE)	(	FUEL3_COUNTER	,
		FUEL3_COMPARE
	)

fuelSchedule4

FuelSchedule fuelSchedule4(FUEL4_COUNTER, FUEL4_COMPARE)	(	FUEL4_COUNTER	,
		FUEL4_COMPARE
	)

ignitionSchedule1

IgnitionSchedule ignitionSchedule1(IGN1_COUNTER, IGN1_COMPARE)	(	IGN1_COUNTER	,
		IGN1_COMPARE
	)

ignitionSchedule2

IgnitionSchedule ignitionSchedule2(IGN2_COUNTER, IGN2_COMPARE)	(	IGN2_COUNTER	,
		IGN2_COMPARE
	)

ignitionSchedule3

IgnitionSchedule ignitionSchedule3(IGN3_COUNTER, IGN3_COMPARE)	(	IGN3_COUNTER	,
		IGN3_COMPARE
	)

ignitionSchedule4

IgnitionSchedule ignitionSchedule4(IGN4_COUNTER, IGN4_COMPARE)	(	IGN4_COUNTER	,
		IGN4_COMPARE
	)

ignitionSchedule5

IgnitionSchedule ignitionSchedule5(IGN5_COUNTER, IGN5_COMPARE)	(	IGN5_COUNTER	,
		IGN5_COMPARE
	)
