FuelSchedule Struct Reference

A fuel injection schedule. More...

#include <scheduler.h>

Inheritance diagram for FuelSchedule:

Collaboration diagram for FuelSchedule:

Public Member Functions
void	reset (void) override
constexpr	Schedule (counter_t &counter, compare_t &compare)
	Construct a new Schedule object.
Public Member Functions inherited from Schedule
constexpr	Schedule (counter_t &counter, compare_t &compare)
	Construct a new Schedule object.

Public Attributes
uint16_t	channelDegrees = 0U
	The number of crank degrees until cylinder is at TDC
uint16_t	pw = 0U
	Pulse width in uS.
Public Attributes inherited from Schedule
volatile COMPARE_TYPE	_duration = 0U
	Scheduled duration (timer ticks)
volatile ScheduleStatus	_status = OFF
	Schedule status: OFF, PENDING, STAGED, RUNNING.
callback	_pStartCallback = &nullCallback
	Start Callback function for schedule.
callback	_pEndCallback = &nullCallback
	End Callback function for schedule.
COMPARE_TYPE	_nextStartCompare = 0U
	Planned start of next schedule (when current schedule is RUNNING)
counter_t &	_counter
	Reference to the counter register. E.g. TCNT3
compare_t &	_compare
	**Reference**to the compare register. E.g. OCR3A

Additional Inherited Members
Public Types inherited from Schedule
using	counter_t = decltype(FUEL1_COUNTER)
	The type of a timer counter register (this varies between platforms)
using	compare_t = decltype(FUEL1_COMPARE)
	The type of a timer compare register (this varies between platforms)
using	callback = void(*)(void)

Detailed Description

A fuel injection schedule.

Goal is to open & close the injector as accurately as possible.

<--------------- Delay ---------------><---- Injecting ---->
                                       ^                   ^
                                     Open                Close

Member Function Documentation

reset()

void FuelSchedule::reset ( void  )

overridevirtual

Reimplemented from Schedule.

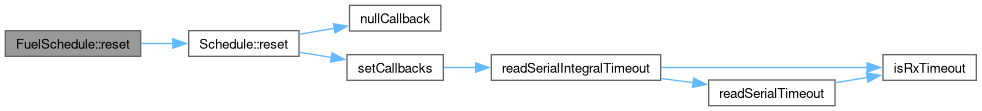

Here is the call graph for this function:

Here is the caller graph for this function:

Schedule()

constexpr Schedule::Schedule ( counter_t &  counter, compare_t &  compare  )

inlineconstexpr

Construct a new Schedule object.

Parameters

counter	A reference to the timer counter
compare	A reference to the timer comparator

Member Data Documentation

channelDegrees

uint16_t FuelSchedule::channelDegrees = 0U

The number of crank degrees until cylinder is at TDC

pw

uint16_t FuelSchedule::pw = 0U

Pulse width in uS.

---

The documentation for this struct was generated from the following files:

• speeduino/scheduler.h
• speeduino/scheduler.cpp
