pinNumbers_t Struct Reference

Store the pin assignments, as defined by the board. More...

#include <pinNumbers_t.h>

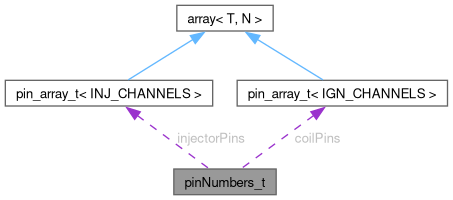

Collaboration diagram for pinNumbers_t:

Public Member Functions
void	setInjectorPin (uint8_t index, uint8_t pin)
void	setCoilPin (uint8_t index, uint8_t pin)

Public Attributes
injector_pins_t	injectorPins
coil_pins_t	coilPins
uint8_t	pinTrigger = NOT_A_PIN
uint8_t	pinTrigger2 = NOT_A_PIN
uint8_t	pinTrigger3 = NOT_A_PIN
uint8_t	pinTPS = NOT_A_PIN
uint8_t	pinMAP = NOT_A_PIN
uint8_t	pinEMAP = NOT_A_PIN
uint8_t	pinIAT = NOT_A_PIN
uint8_t	pinCLT = NOT_A_PIN
uint8_t	pinO2 = NOT_A_PIN
uint8_t	pinO2_2 = NOT_A_PIN
uint8_t	pinBat = NOT_A_PIN
uint8_t	pinTachOut = NOT_A_PIN
uint8_t	pinFuelPump = NOT_A_PIN
uint8_t	pinIdle1 = NOT_A_PIN
uint8_t	pinIdle2 = NOT_A_PIN
uint8_t	pinIdleUp = NOT_A_PIN
uint8_t	pinIdleUpOutput = NOT_A_PIN
uint8_t	pinCTPS = NOT_A_PIN
uint8_t	pinFuel2Input = NOT_A_PIN
uint8_t	pinSpark2Input = NOT_A_PIN
uint8_t	pinBoost = NOT_A_PIN
uint8_t	pinVVT_1 = NOT_A_PIN
uint8_t	pinVVT_2 = NOT_A_PIN
uint8_t	pinFan = NOT_A_PIN
uint8_t	pinStepperDir = NOT_A_PIN
uint8_t	pinStepperStep = NOT_A_PIN
uint8_t	pinStepperEnable = NOT_A_PIN
uint8_t	pinLaunch = NOT_A_PIN
uint8_t	pinIgnBypass = NOT_A_PIN
uint8_t	pinFlex = NOT_A_PIN
uint8_t	pinVSS = NOT_A_PIN
uint8_t	pinBaro = NOT_A_PIN
uint8_t	pinResetControl = NOT_A_PIN
uint8_t	pinFuelPressure = NOT_A_PIN
uint8_t	pinOilPressure = NOT_A_PIN
uint8_t	pinWMIEmpty = NOT_A_PIN
uint8_t	pinWMIIndicator = NOT_A_PIN
uint8_t	pinWMIEnabled = NOT_A_PIN
uint8_t	pinAirConComp = NOT_A_PIN
uint8_t	pinAirConFan = NOT_A_PIN
uint8_t	pinAirConRequest = NOT_A_PIN

Detailed Description

Store the pin assignments, as defined by the board.

Member Function Documentation

setCoilPin()

void pinNumbers_t::setCoilPin ( uint8_t  index, uint8_t  pin  )

inline

Here is the call graph for this function:

setInjectorPin()

void pinNumbers_t::setInjectorPin ( uint8_t  index, uint8_t  pin  )

inline

Here is the call graph for this function:

Member Data Documentation

coilPins

coil_pins_t pinNumbers_t::coilPins

injectorPins

injector_pins_t pinNumbers_t::injectorPins

pinAirConComp

uint8_t pinNumbers_t::pinAirConComp = NOT_A_PIN

pinAirConFan

uint8_t pinNumbers_t::pinAirConFan = NOT_A_PIN

pinAirConRequest

uint8_t pinNumbers_t::pinAirConRequest = NOT_A_PIN

pinBaro

uint8_t pinNumbers_t::pinBaro = NOT_A_PIN

pinBat

uint8_t pinNumbers_t::pinBat = NOT_A_PIN

pinBoost

uint8_t pinNumbers_t::pinBoost = NOT_A_PIN

pinCLT

uint8_t pinNumbers_t::pinCLT = NOT_A_PIN

pinCTPS

uint8_t pinNumbers_t::pinCTPS = NOT_A_PIN

pinEMAP

uint8_t pinNumbers_t::pinEMAP = NOT_A_PIN

pinFan

uint8_t pinNumbers_t::pinFan = NOT_A_PIN

pinFlex

uint8_t pinNumbers_t::pinFlex = NOT_A_PIN

pinFuel2Input

uint8_t pinNumbers_t::pinFuel2Input = NOT_A_PIN

pinFuelPressure

uint8_t pinNumbers_t::pinFuelPressure = NOT_A_PIN

pinFuelPump

uint8_t pinNumbers_t::pinFuelPump = NOT_A_PIN

pinIAT

uint8_t pinNumbers_t::pinIAT = NOT_A_PIN

pinIdle1

uint8_t pinNumbers_t::pinIdle1 = NOT_A_PIN

pinIdle2

uint8_t pinNumbers_t::pinIdle2 = NOT_A_PIN

pinIdleUp

uint8_t pinNumbers_t::pinIdleUp = NOT_A_PIN

pinIdleUpOutput

uint8_t pinNumbers_t::pinIdleUpOutput = NOT_A_PIN

pinIgnBypass

uint8_t pinNumbers_t::pinIgnBypass = NOT_A_PIN

pinLaunch

uint8_t pinNumbers_t::pinLaunch = NOT_A_PIN

pinMAP

uint8_t pinNumbers_t::pinMAP = NOT_A_PIN

pinO2

uint8_t pinNumbers_t::pinO2 = NOT_A_PIN

pinO2_2

uint8_t pinNumbers_t::pinO2_2 = NOT_A_PIN

pinOilPressure

uint8_t pinNumbers_t::pinOilPressure = NOT_A_PIN

pinResetControl

uint8_t pinNumbers_t::pinResetControl = NOT_A_PIN

pinSpark2Input

uint8_t pinNumbers_t::pinSpark2Input = NOT_A_PIN

pinStepperDir

uint8_t pinNumbers_t::pinStepperDir = NOT_A_PIN

pinStepperEnable

uint8_t pinNumbers_t::pinStepperEnable = NOT_A_PIN

pinStepperStep

uint8_t pinNumbers_t::pinStepperStep = NOT_A_PIN

pinTachOut

uint8_t pinNumbers_t::pinTachOut = NOT_A_PIN

pinTPS

uint8_t pinNumbers_t::pinTPS = NOT_A_PIN

pinTrigger

uint8_t pinNumbers_t::pinTrigger = NOT_A_PIN

pinTrigger2

uint8_t pinNumbers_t::pinTrigger2 = NOT_A_PIN

pinTrigger3

uint8_t pinNumbers_t::pinTrigger3 = NOT_A_PIN

pinVSS

uint8_t pinNumbers_t::pinVSS = NOT_A_PIN

pinVVT_1

uint8_t pinNumbers_t::pinVVT_1 = NOT_A_PIN

pinVVT_2

uint8_t pinNumbers_t::pinVVT_2 = NOT_A_PIN

pinWMIEmpty

uint8_t pinNumbers_t::pinWMIEmpty = NOT_A_PIN

pinWMIEnabled

uint8_t pinNumbers_t::pinWMIEnabled = NOT_A_PIN

pinWMIIndicator

uint8_t pinNumbers_t::pinWMIIndicator = NOT_A_PIN

---

The documentation for this struct was generated from the following file:

• speeduino/src/pins/pinNumbers_t.h
