engineProtection.cpp File Reference

#include "globals.h"
#include "engineProtection.h"
#include "maths.h"
#include "units.h"
#include "unit_testing.h"
#include "preprocessor.h"
#include "decoder_init.h"

Functions
TESTABLE_INLINE_STATIC bool	checkOilPressureLimit (const statuses &current, const config6 &page6, const config10 &page10, uint32_t currMillis)
TESTABLE_INLINE_STATIC bool	checkBoostLimit (const statuses &current, const config6 &page6)
static bool	canApplyAfrLimit (const config6 &page6, const config9 &page9)
static uint16_t	getAfrO2Limit (const statuses &current, const config9 &page9)
static bool	isAfrLimitCondtionActive (const statuses &current, const config9 &page9)
TESTABLE_INLINE_STATIC bool	checkAFRLimit (const statuses &current, const config6 &page6, const config9 &page9, uint32_t currMillis)
TESTABLE_INLINE_STATIC bool	checkRpmLimit (const statuses &current, const config4 &page4, const config6 &page6, const config9 &page9)
TESTABLE_INLINE_STATIC bool	checkCoolantLimit (const statuses &current, const config6 &page6, const config9 &page9)
	BEGIN_LTO_ALWAYS_INLINE (statuses::engine_protect_flags_t) checkEngineProtection(const statuses &current
	if (page6.engineProtectType !=PROTECT_CUT_OFF)
TESTABLE_INLINE_STATIC uint8_t	getHardRevLimit (const statuses &current, const config4 &page4, const config9 &page9)
TESTABLE_INLINE_STATIC uint8_t	applyEngineProtectionRevLimit (uint8_t curLimit, const statuses &current, const config4 &page4)
TESTABLE_INLINE_STATIC uint8_t	applyHardLaunchRevLimit (uint8_t curLimit, const statuses &current, const config6 &page6)
TESTABLE_INLINE_STATIC uint16_t	applyFlatShiftRevLimit (uint16_t curLimit, const statuses &current)
TESTABLE_INLINE_STATIC uint16_t	getMaxRpm (const statuses &current, const config4 &page4, const config6 &page6, const config9 &page9)
static statuses::scheduler_cut_t	applyFullCut (const config6 &page6)
TESTABLE_INLINE_STATIC bool	useRollingCut (const statuses &current, const config2 &page2, uint16_t maxAllowedRPM)
static bool	isNonSequential (const config2 &page2, const config4 &page4)
static uint8_t	calcBaseCutRevolutions (const config2 &page2)
TESTABLE_INLINE_STATIC uint8_t	calcRollingCutRevolutions (const config2 &page2, const config4 &page4)
TESTABLE_INLINE_STATIC uint8_t	calcRollingCutPercentage (const statuses &current, uint16_t maxAllowedRPM)
static statuses::scheduler_cut_t	channelOff (statuses::scheduler_cut_t cutState, const config6 &page6, uint8_t channel)
TESTABLE_INLINE_STATIC statuses::scheduler_cut_t	channelOn (statuses::scheduler_cut_t cutState, bool supportPendingIgnitionCut, uint8_t channel)
TESTABLE_STATIC bool	supportPendingIgnitionCut (const config2 &page2, const config4 &page4, const config6 &page6)
TESTABLE_STATIC statuses::scheduler_cut_t	applyRollingCutPercentage (const statuses &current, const config6 &page6, uint8_t cutPercent, bool supportPendingIgnitionCut)
TESTABLE_STATIC statuses::scheduler_cut_t	applyPendingIgnitionCuts (statuses::scheduler_cut_t cutState, const statuses &current)
TESTABLE_STATIC statuses::scheduler_cut_t	applyRollingCut (const statuses &current, const config2 &page2, const config4 &page4, const config6 &page6, uint16_t maxAllowedRPM)
statuses::scheduler_cut_t	maskUnusedChannels (statuses::scheduler_cut_t cutState, const statuses &current)
	BEGIN_LTO_ALWAYS_INLINE (statuses::scheduler_cut_t) calculateFuelIgnitionChannelCut(const statuses &current
	if ((current.decoder.getStatus().syncStatus==SyncStatus::None)||(current.startRevolutions< page4.StgCycles))
else	if (page6.engineProtectType!=PROTECT_CUT_OFF)

Variables
TESTABLE_STATIC uint32_t	oilProtEndTime
TESTABLE_CONSTEXPR table2D_u8_u8_4 oilPressureProtectTable &	configPage10
TESTABLE_CONSTEXPR table2D_u8_u8_6 coolantProtectTable &	configPage9
TESTABLE_STATIC bool	checkAFRLimitActive = false
TESTABLE_STATIC unsigned long	afrProtectedActivateTime = 0
const config4 &	page4
const config4 const config6 &	page6
const config4 const config6 const config9 &	page9
const config4 const config6 const config9 const config10 &	page10
return	flags
TESTABLE_STATIC uint32_t	rollingCutLastRev = 0
TESTABLE_STATIC uint8_t(*	rollingCutRandFunc )(void) noexcept = random1to100
constexpr statuses::scheduler_cut_t	CUT_FULL_BOTH
constexpr statuses::scheduler_cut_t	CUT_FULL_FUEL
constexpr statuses::scheduler_cut_t	CUT_FULL_IGN
constexpr statuses::scheduler_cut_t	CUT_NONE
TESTABLE_CONSTEXPR table2D_i8_u8_4 rollingCutTable &	configPage15
	Immediately below max RPM, there is a range within which we can apply a rolling cut.
const config2 &	page2
	else

Function Documentation

applyEngineProtectionRevLimit()

TESTABLE_INLINE_STATIC uint8_t applyEngineProtectionRevLimit	(	uint8_t	curLimit,
		const statuses &	current,
		const config4 &	page4
	)

Here is the call graph for this function:

Here is the caller graph for this function:

applyFlatShiftRevLimit()

TESTABLE_INLINE_STATIC uint16_t applyFlatShiftRevLimit	(	uint16_t	curLimit,
		const statuses &	current
	)

Here is the call graph for this function:

Here is the caller graph for this function:

applyFullCut()

static statuses::scheduler_cut_t applyFullCut ( const config6 &  page6 )

inlinestatic

Here is the caller graph for this function:

applyHardLaunchRevLimit()

TESTABLE_INLINE_STATIC uint8_t applyHardLaunchRevLimit	(	uint8_t	curLimit,
		const statuses &	current,
		const config6 &	page6
	)

Here is the call graph for this function:

Here is the caller graph for this function:

applyPendingIgnitionCuts()

TESTABLE_STATIC statuses::scheduler_cut_t applyPendingIgnitionCuts	(	statuses::scheduler_cut_t	cutState,
		const statuses &	current
	)

Here is the call graph for this function:

Here is the caller graph for this function:

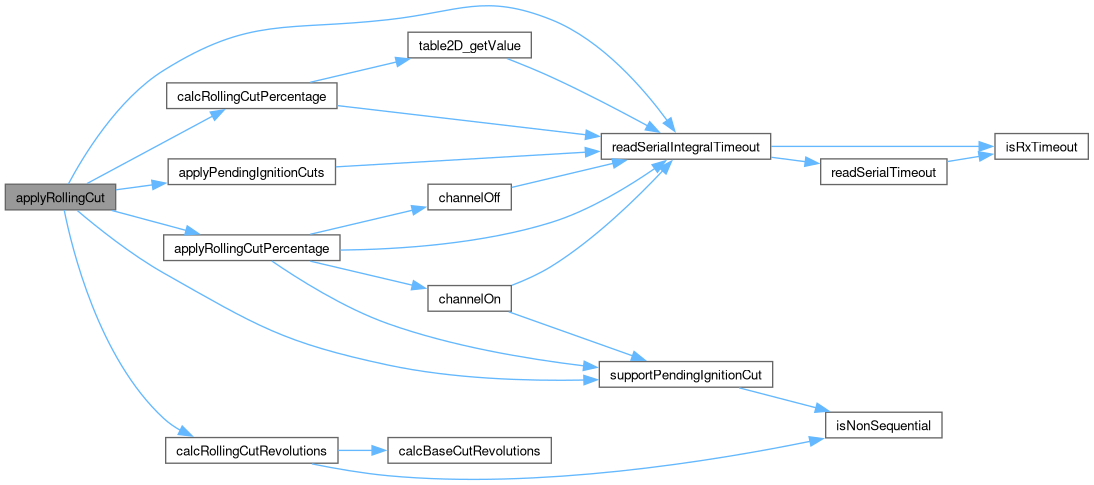

applyRollingCut()

TESTABLE_STATIC statuses::scheduler_cut_t applyRollingCut	(	const statuses &	current,
		const config2 &	page2,
		const config4 &	page4,
		const config6 &	page6,
		uint16_t	maxAllowedRPM
	)

Here is the call graph for this function:

Here is the caller graph for this function:

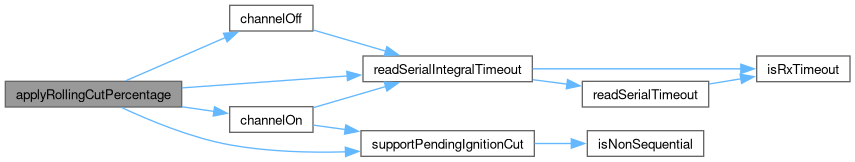

applyRollingCutPercentage()

TESTABLE_STATIC statuses::scheduler_cut_t applyRollingCutPercentage	(	const statuses &	current,
		const config6 &	page6,
		uint8_t	cutPercent,
		bool	supportPendingIgnitionCut
	)

Here is the call graph for this function:

Here is the caller graph for this function:

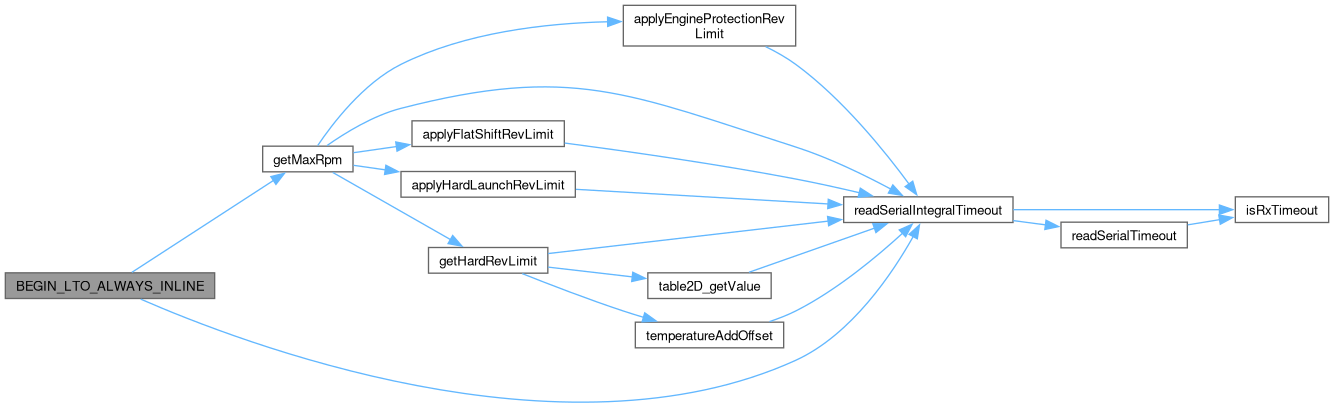

BEGIN_LTO_ALWAYS_INLINE() [1/2]

BEGIN_LTO_ALWAYS_INLINE

(

statuses::engine_protect_flags_t

)

const &

BEGIN_LTO_ALWAYS_INLINE() [2/2]

BEGIN_LTO_ALWAYS_INLINE

(

statuses::scheduler_cut_t

)

const &

Here is the call graph for this function:

calcBaseCutRevolutions()

static uint8_t calcBaseCutRevolutions ( const config2 &  page2 )

inlinestatic

Here is the caller graph for this function:

calcRollingCutPercentage()

TESTABLE_INLINE_STATIC uint8_t calcRollingCutPercentage	(	const statuses &	current,
		uint16_t	maxAllowedRPM
	)

Here is the call graph for this function:

Here is the caller graph for this function:

calcRollingCutRevolutions()

TESTABLE_INLINE_STATIC uint8_t calcRollingCutRevolutions	(	const config2 &	page2,
		const config4 &	page4
	)

Here is the call graph for this function:

Here is the caller graph for this function:

canApplyAfrLimit()

static bool canApplyAfrLimit ( const config6 &  page6, const config9 &  page9  )

inlinestatic

Here is the caller graph for this function:

channelOff()

static statuses::scheduler_cut_t channelOff ( statuses::scheduler_cut_t  cutState, const config6 &  page6, uint8_t  channel  )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

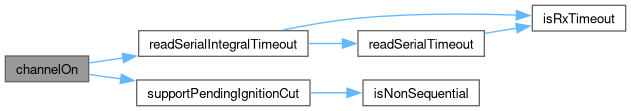

channelOn()

TESTABLE_INLINE_STATIC statuses::scheduler_cut_t channelOn	(	statuses::scheduler_cut_t	cutState,
		bool	supportPendingIgnitionCut,
		uint8_t	channel
	)

Here is the call graph for this function:

Here is the caller graph for this function:

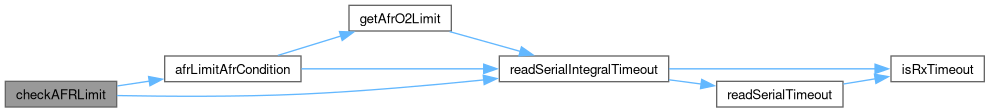

checkAFRLimit()

TESTABLE_INLINE_STATIC bool checkAFRLimit	(	const statuses &	current,
		const config6 &	page6,
		const config9 &	page9,
		uint32_t	currMillis
	)

Here is the call graph for this function:

Here is the caller graph for this function:

checkBoostLimit()

TESTABLE_INLINE_STATIC bool checkBoostLimit	(	const statuses &	current,
		const config6 &	page6
	)

Here is the caller graph for this function:

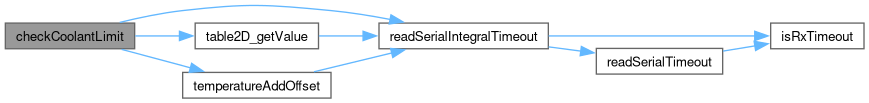

checkCoolantLimit()

TESTABLE_INLINE_STATIC bool checkCoolantLimit	(	const statuses &	current,
		const config6 &	page6,
		const config9 &	page9
	)

Here is the call graph for this function:

Here is the caller graph for this function:

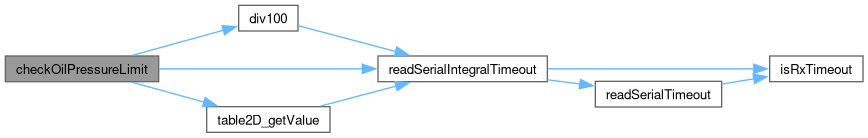

checkOilPressureLimit()

TESTABLE_INLINE_STATIC bool checkOilPressureLimit	(	const statuses &	current,
		const config6 &	page6,
		const config10 &	page10,
		uint32_t	currMillis
	)

Here is the call graph for this function:

Here is the caller graph for this function:

checkRpmLimit()

TESTABLE_INLINE_STATIC bool checkRpmLimit	(	const statuses &	current,
		const config4 &	page4,
		const config6 &	page6,
		const config9 &	page9
	)

Here is the caller graph for this function:

getAfrO2Limit()

static uint16_t getAfrO2Limit ( const statuses &  current, const config9 &  page9  )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

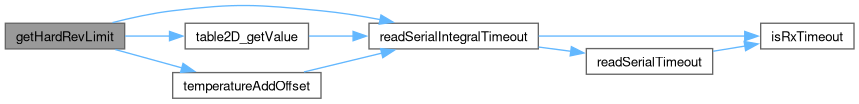

getHardRevLimit()

TESTABLE_INLINE_STATIC uint8_t getHardRevLimit	(	const statuses &	current,
		const config4 &	page4,
		const config9 &	page9
	)

Here is the call graph for this function:

Here is the caller graph for this function:

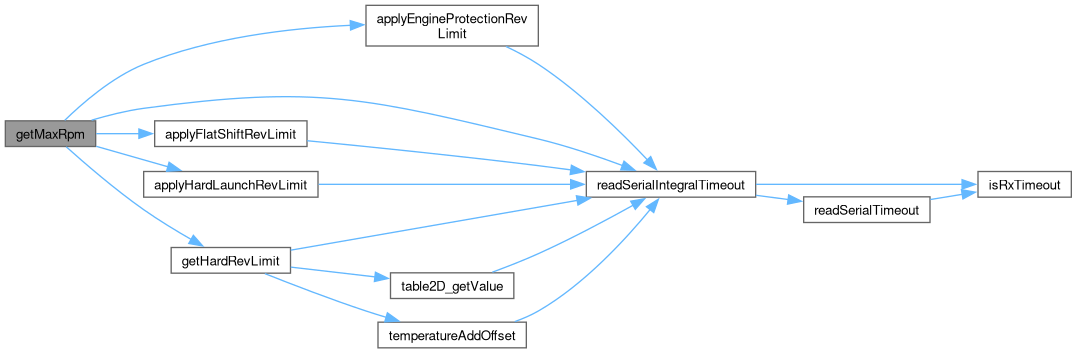

getMaxRpm()

TESTABLE_INLINE_STATIC uint16_t getMaxRpm	(	const statuses &	current,
		const config4 &	page4,
		const config6 &	page6,
		const config9 &	page9
	)

Here is the call graph for this function:

Here is the caller graph for this function:

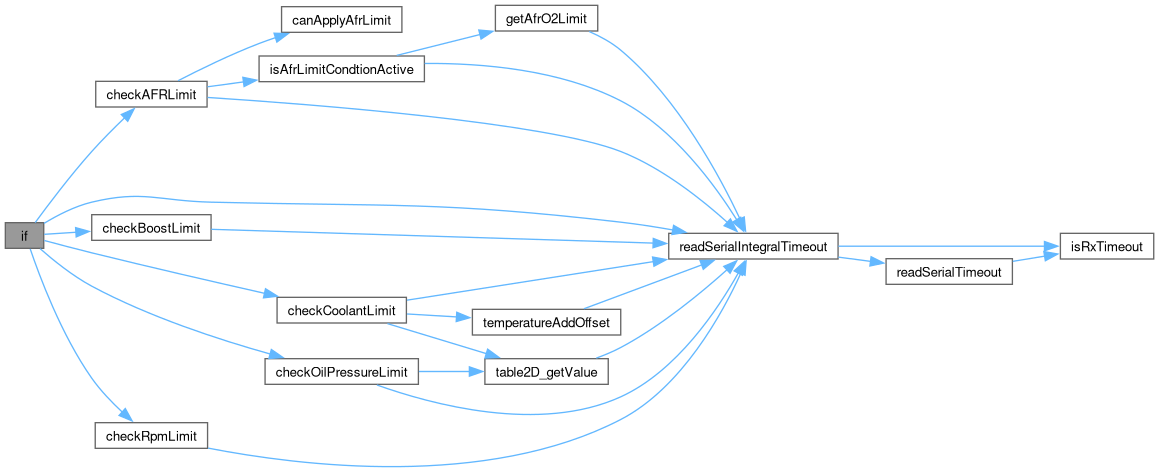

if() [1/3]

if

(

(current.decoder.getStatus().syncStatus==SyncStatus::None)||(current.startRevolutions< page4.StgCycles)

)

Here is the call graph for this function:

if() [2/3]

if

(

page6.engineProtectType !

= PROTECT_CUT_OFF

)

Here is the call graph for this function:

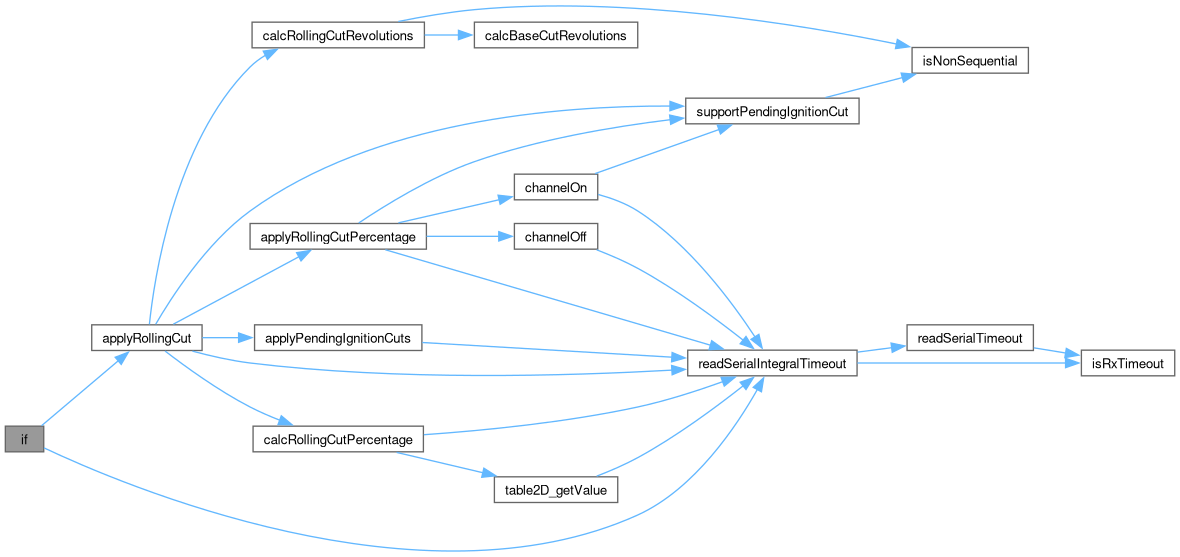

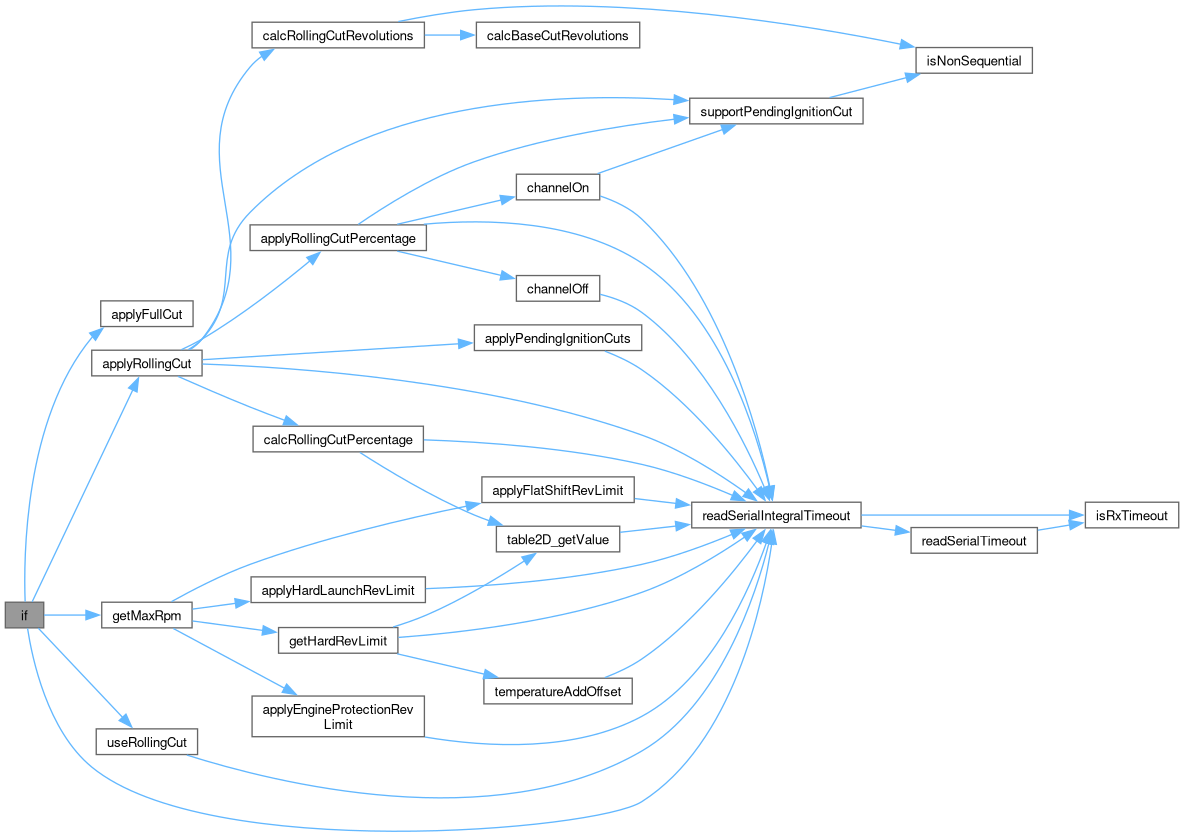

if() [3/3]

else if

(

page6.engineProtectType!

= PROTECT_CUT_OFF

)

Here is the call graph for this function:

isAfrLimitCondtionActive()

static bool isAfrLimitCondtionActive ( const statuses &  current, const config9 &  page9  )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

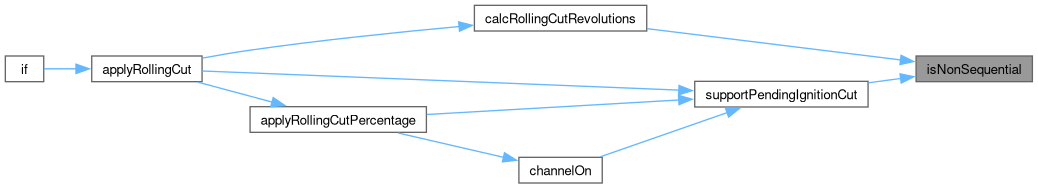

isNonSequential()

static bool isNonSequential ( const config2 &  page2, const config4 &  page4  )

inlinestatic

Here is the caller graph for this function:

maskUnusedChannels()

statuses::scheduler_cut_t maskUnusedChannels	(	statuses::scheduler_cut_t	cutState,
		const statuses &	current
	)

Here is the call graph for this function:

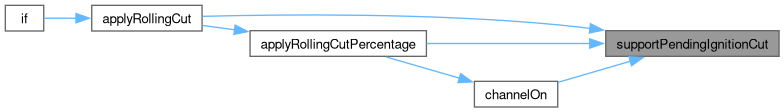

supportPendingIgnitionCut()

TESTABLE_STATIC bool supportPendingIgnitionCut	(	const config2 &	page2,
		const config4 &	page4,
		const config6 &	page6
	)

Here is the call graph for this function:

Here is the caller graph for this function:

useRollingCut()

TESTABLE_INLINE_STATIC bool useRollingCut	(	const statuses &	current,
		const config2 &	page2,
		uint16_t	maxAllowedRPM
	)

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

afrProtectedActivateTime

TESTABLE_STATIC unsigned long afrProtectedActivateTime = 0

checkAFRLimitActive

TESTABLE_STATIC bool checkAFRLimitActive = false

configPage10

TESTABLE_CONSTEXPR table2D_u8_u8_4 oilPressureProtectTable& configPage10

constexpr

configPage15

TESTABLE_CONSTEXPR table2D_i8_u8_4 rollingCutTable& configPage15

Immediately below max RPM, there is a range within which we can apply a rolling cut.

The rolling cut table defines a series of relative negative RPM offsets that define the window and percent cut for each offset. I.e. RPM 0---------------------—|++++++++++++++++++++|<- max RPM | rolling cut window |

configPage9

TESTABLE_CONSTEXPR table2D_u8_u8_6 coolantProtectTable& configPage9

CUT_FULL_BOTH

constexpr statuses::scheduler_cut_t CUT_FULL_BOTH

constexpr

Initial value:

= {
  .ignitionChannelsPending = 0x00,
  .ignitionChannels = 0x00,
  .fuelChannels = 0x00,
  .status = SchedulerCutStatus::Full
}

CUT_FULL_FUEL

constexpr statuses::scheduler_cut_t CUT_FULL_FUEL

constexpr

Initial value:

= {
  .ignitionChannelsPending = 0x00,
  .ignitionChannels = 0xFF,
  .fuelChannels = 0x00,
  .status = SchedulerCutStatus::Full
}

CUT_FULL_IGN

constexpr statuses::scheduler_cut_t CUT_FULL_IGN

constexpr

Initial value:

= {
  .ignitionChannelsPending = 0x00,
  .ignitionChannels = 0x00,
  .fuelChannels = 0xFF,
  .status = SchedulerCutStatus::Full
}

CUT_NONE

constexpr statuses::scheduler_cut_t CUT_NONE

constexpr

Initial value:

= {
  .ignitionChannelsPending = 0x00,
  .ignitionChannels = 0xFF,
  .fuelChannels = 0xFF,
  .status = SchedulerCutStatus::None
}

else

else

Initial value:

{

  }

  return maskUnusedChannels(cutState, current)

flags

return flags

oilProtEndTime

TESTABLE_STATIC uint32_t oilProtEndTime

page10

const config4 const config6 const config9 const config10& page10

Initial value:

{
  statuses::engine_protect_flags_t flags = { false, false, false, false, false }

page2

const config2& page2

page4

const config2 const config4 & page4

page6

const config2 const config4 const config6 & page6

page9

const config2 const config4 const config6 const config9 & page9

Initial value:

{
  statuses::scheduler_cut_t cutState = CUT_NONE

rollingCutLastRev

TESTABLE_STATIC uint32_t rollingCutLastRev = 0

Tracks whether we're on the same or a different rev for the rolling cut

rollingCutRandFunc

TESTABLE_STATIC uint8_t(* rollingCutRandFunc) (void) noexcept ( void  ) = random1to100

noexcept
