decoders.cpp File Reference

#include <limits.h>
#include "globals.h"
#include "decoders.h"
#include "scheduledIO.h"
#include "scheduler.h"
#include "crankMaths.h"
#include "timers.h"
#include "schedule_calcs.h"
#include "unit_testing.h"
#include "atomic.h"
#include "decoder_init.h"
#include "decoder_builder.h"

Macros
#define	READ_PRI_TRIGGER()   digitalRead(pinTrigger)
#define	READ_SEC_TRIGGER()   digitalRead(pinTrigger2)
#define	READ_THIRD_TRIGGER()   digitalRead(pinTrigger3)
#define	TOOTH_CRANK   0
#define	TOOTH_CAM_SECONDARY   1
#define	TOOTH_CAM_TERTIARY   2
#define	ID_TOOTH_PATTERN   0
#define	SKIP_TOOTH1   1
#define	SKIP_TOOTH2   2
#define	SKIP_TOOTH3   3
#define	SKIP_TOOTH4   4
#define	TRIGGER_FILTER_OFF   0
#define	TRIGGER_FILTER_LITE   1
#define	TRIGGER_FILTER_MEDIUM   2
#define	TRIGGER_FILTER_AGGRESSIVE   3
#define	secondaryToothLastCount   checkSyncToothCount
#define	renixSystemLastToothTime   toothLastToothRisingTime
#define	renixSystemLastMinusOneToothTime   toothLastSecToothRisingTime

Functions
static void	triggerRoverMEMSCommon (void)
static void	triggerRecordVVT1Angle (void)
static void	addToothLogEntry (unsigned long toothTime, byte whichTooth)
void	loggerPrimaryISR (void)
void	loggerSecondaryISR (void)
void	loggerTertiaryISR (void)
static decoder_status_t	sharedGetStatus (void)
static uint16_t	timeToAngleIntervalTooth (uint32_t time)
static bool	IsCranking (const statuses &status)
TESTABLE_STATIC bool	sharedEngineIsRunning (uint32_t curTime)
static decoder_features_t	sharedGetDecoderFeatures (void)
static void	sharedDecoderReset (void)
TESTABLE_STATIC bool	SetRevolutionTime (uint32_t revTime)
static bool	UpdateRevolutionTimeFromTeeth (bool isCamTeeth)
static uint16_t	RpmFromRevolutionTimeUs (uint32_t revTime)
static uint16_t	stdGetRPM (bool isCamTeeth)
static void	setFilter (unsigned long curGap)
static int	crankingGetRPM (byte totalTeeth, bool isCamTeeth)
static void	checkPerToothTiming (int16_t crankAngle, uint16_t currentTooth)
static uint8_t	getConfigPriTriggerEdge (const config4 &page4)
static uint8_t	getConfigSecTriggerEdge (const config4 &page4)
static uint8_t	getConfigTerTriggerEdge (const config10 &page10)
static void	triggerPri_missingTooth (void)
static void	triggerSec_missingTooth (void)
static void	triggerThird_missingTooth (void)
static uint16_t	getRPM_missingTooth (void)
static int16_t	getCrankAngle_missingTooth (void)
static uint16_t	clampToToothCount (int16_t toothNum, uint8_t toothAdder)
static uint16_t	clampToActualTeeth (uint16_t toothNum, uint8_t toothAdder)
static uint16_t	calcEndTeeth_missingTooth (int endAngle, uint8_t toothAdder)
static void	triggerSetEndTeeth_missingTooth (void)
decoder_t	triggerSetup_missingTooth (void)
	Setup function for each decoder type.
static void	triggerPri_DualWheel (void)
static void	triggerSec_DualWheel (void)
static uint16_t	getRPM_DualWheel (void)
static int16_t	getCrankAngle_DualWheel (void)
static uint16_t	calcEndTeeth_DualWheel (int ignitionAngle, uint8_t toothAdder)
static void	triggerSetEndTeeth_DualWheel (void)
decoder_t	triggerSetup_DualWheel (void)
static void	triggerPri_BasicDistributor (void)
static uint16_t	getRPM_BasicDistributor (void)
static int16_t	getCrankAngle_BasicDistributor (void)
static void	triggerSetEndTeeth_BasicDistributor (void)
decoder_t	triggerSetup_BasicDistributor (void)
static void	triggerPri_GM7X (void)
static uint16_t	getRPM_GM7X (void)
static int16_t	getCrankAngle_GM7X (void)
static void	triggerSetEndTeeth_GM7X (void)
decoder_t	triggerSetup_GM7X (void)
static void	triggerPri_4G63 (void)
static void	triggerSec_4G63 (void)
static uint16_t	getRPM_4G63 (void)
static int16_t	getCrankAngle_4G63 (void)
static void	triggerSetEndTeeth_4G63 (void)
decoder_t	triggerSetup_4G63 (void)
static void	triggerPri_24X (void)
static void	triggerSec_24X (void)
static uint16_t	getRPM_24X (void)
static int16_t	getCrankAngle_24X (void)
decoder_t	triggerSetup_24X (void)
static void	triggerPri_Jeep2000 (void)
static void	triggerSec_Jeep2000 (void)
static uint16_t	getRPM_Jeep2000 (void)
static int16_t	getCrankAngle_Jeep2000 (void)
decoder_t	triggerSetup_Jeep2000 (void)
static void	triggerPri_Audi135 (void)
static void	triggerSec_Audi135 (void)
static uint16_t	getRPM_Audi135 (void)
static int16_t	getCrankAngle_Audi135 (void)
decoder_t	triggerSetup_Audi135 (void)
static void	triggerPri_HondaD17 (void)
static uint16_t	getRPM_HondaD17 (void)
static int16_t	getCrankAngle_HondaD17 (void)
decoder_t	triggerSetup_HondaD17 (void)
static void	triggerPri_HondaJ32 (void)
static uint16_t	getRPM_HondaJ32 (void)
static int16_t	getCrankAngle_HondaJ32 (void)
decoder_t	triggerSetup_HondaJ32 (void)
static void	triggerPri_Miata9905 (void)
static void	triggerSec_Miata9905 (void)
static uint16_t	getRPM_Miata9905 (void)
static int16_t	getCrankAngle_Miata9905 (void)
int	getCamAngle_Miata9905 (void)
static void	triggerSetEndTeeth_Miata9905 (void)
decoder_t	triggerSetup_Miata9905 (void)
static void	triggerPri_MazdaAU (void)
static void	triggerSec_MazdaAU (void)
static uint16_t	getRPM_MazdaAU (void)
static int16_t	getCrankAngle_MazdaAU (void)
decoder_t	triggerSetup_MazdaAU (void)
static uint16_t	getRPM_non360 (void)
static int16_t	getCrankAngle_non360 (void)
decoder_t	triggerSetup_non360 (void)
static void	triggerPri_Nissan360 (void)
static void	triggerSec_Nissan360 (void)
static uint16_t	getRPM_Nissan360 (void)
static int16_t	getCrankAngle_Nissan360 (void)
static void	triggerSetEndTeeth_Nissan360 (void)
decoder_t	triggerSetup_Nissan360 (void)
static void	triggerPri_Subaru67 (void)
static void	triggerSec_Subaru67 (void)
static uint16_t	getRPM_Subaru67 (void)
static int16_t	getCrankAngle_Subaru67 (void)
static void	triggerSetEndTeeth_Subaru67 (void)
decoder_t	triggerSetup_Subaru67 (void)
static void	triggerPri_Daihatsu (void)
static uint16_t	getRPM_Daihatsu (void)
static int16_t	getCrankAngle_Daihatsu (void)
decoder_t	triggerSetup_Daihatsu (void)
static void	triggerPri_Harley (void)
static uint16_t	getRPM_Harley (void)
static int16_t	getCrankAngle_Harley (void)
decoder_t	triggerSetup_Harley (void)
static void	triggerPri_ThirtySixMinus222 (void)
static uint16_t	getRPM_ThirtySixMinus222 (void)
static void	triggerSetEndTeeth_ThirtySixMinus222 (void)
decoder_t	triggerSetup_ThirtySixMinus222 (void)
static void	triggerPri_ThirtySixMinus21 (void)
static uint16_t	getRPM_ThirtySixMinus21 (void)
static void	triggerSetEndTeeth_ThirtySixMinus21 (void)
decoder_t	triggerSetup_ThirtySixMinus21 (void)
static void	triggerPri_420a (void)
static void	triggerSec_420a (void)
static uint16_t	getRPM_420a (void)
static int16_t	getCrankAngle_420a (void)
static void	triggerSetEndTeeth_420a (void)
decoder_t	triggerSetup_420a (void)
static void	triggerPri_Webber (void)
static void	triggerSec_Webber (void)
decoder_t	triggerSetup_Webber (void)
static void	triggerSec_FordST170 (void)
static uint16_t	getRPM_FordST170 (void)
static int16_t	getCrankAngle_FordST170 (void)
static uint16_t	calcSetEndTeeth_FordST170 (int ignitionAngle, uint8_t toothAdder)
static void	triggerSetEndTeeth_FordST170 (void)
decoder_t	triggerSetup_FordST170 (void)
static void	triggerSec_DRZ400 (void)
decoder_t	triggerSetup_DRZ400 (void)
static void	triggerPri_NGC (void)
static void	triggerSec_NGC4 (void)
static void	triggerSec_NGC68 (void)
static uint16_t	getRPM_NGC (void)
static uint16_t	calcSetEndTeeth_NGC_SkipMissing (uint16_t toothNum)
static uint16_t	calcSetEndTeeth_NGC (int ignitionAngle, uint8_t toothAdder)
static void	triggerSetEndTeeth_NGC (void)
decoder_t	triggerSetup_NGC (void)
static void	triggerPri_Vmax (void)
static uint16_t	getRPM_Vmax (void)
static int16_t	getCrankAngle_Vmax (void)
decoder_t	triggerSetup_Vmax (void)
static void	triggerPri_Renix (void)
static uint16_t	calcEndTeeth_Renix (int ignitionAngle, uint8_t toothAdder)
static void	triggerSetEndTeeth_Renix (void)
decoder_t	triggerSetup_Renix (void)
static void	triggerPri_RoverMEMS (void)
static void	triggerSec_RoverMEMS (void)
static uint16_t	getRPM_RoverMEMS (void)
static void	triggerSetEndTeeth_RoverMEMS (void)
decoder_t	triggerSetup_RoverMEMS (void)
static void	triggerPri_SuzukiK6A (void)
static uint16_t	getRPM_SuzukiK6A (void)
static int16_t	getCrankAngle_SuzukiK6A (void)
static uint16_t	calcEndTeeth_SuzukiK6A (int ignitionAngle)
static void	triggerSetEndTeeth_SuzukiK6A (void)
decoder_t	triggerSetup_SuzukiK6A (void)
static void	triggerPri_FordTFI (void)
static void	triggerSec_FordTFI (void)
static uint16_t	getRPM_FordTFI (void)
static int16_t	getCrankAngle_FordTFI (void)
static void	triggerSetEndTeeth_FordTFI (void)
decoder_t	triggerSetup_FordTFI (void)
static void	initTriggerPin (uint8_t pin, port_register_t &pinPort, pin_mask_t &pinMask)
void	initDecoderPins (uint8_t primaryPin, uint8_t secondaryPin, uint8_t tertiaryPin)
	Set the input pins for the decoders. Pin numbers are pulled from the tune.

Variables
static volatile unsigned long	curTime
static volatile unsigned long	curGap
static volatile unsigned long	curTime2
static volatile unsigned long	curGap2
static volatile unsigned long	curTime3
static volatile unsigned long	curGap3
static volatile unsigned long	lastGap
static volatile unsigned long	targetGap
TESTABLE_STATIC unsigned long	MAX_STALL_TIME = MICROS_PER_SEC/2U
TESTABLE_STATIC uint16_t	toothCurrentCount = 0
TESTABLE_STATIC volatile byte	toothSystemCount = 0
TESTABLE_STATIC volatile unsigned long	toothSystemLastToothTime = 0
TESTABLE_STATIC volatile unsigned long	toothLastToothTime = 0
static volatile unsigned long	toothLastSecToothTime = 0
static volatile unsigned long	toothLastThirdToothTime = 0
TESTABLE_STATIC volatile unsigned long	toothLastMinusOneToothTime = 0
static volatile unsigned long	toothLastMinusOneSecToothTime = 0
TESTABLE_STATIC volatile unsigned long	toothLastToothRisingTime = 0
TESTABLE_STATIC volatile unsigned long	toothLastSecToothRisingTime = 0
static volatile unsigned long	targetGap2
static volatile unsigned long	targetGap3
static volatile unsigned long	toothOneTime = 0
static volatile unsigned long	toothOneMinusOneTime = 0
static volatile unsigned long	lastSyncRevolution = 0
static volatile bool	revolutionOne = 0
static volatile unsigned int	secondaryToothCount
static volatile unsigned long	secondaryLastToothTime1 = 0
static uint16_t	triggerActualTeeth
TESTABLE_STATIC volatile unsigned long	triggerFilterTime
static volatile unsigned long	triggerSecFilterTime
static volatile unsigned long	triggerThirdFilterTime
static unsigned int	triggerSecFilterTime_duration
TESTABLE_STATIC volatile uint16_t	triggerToothAngle
static byte	checkSyncToothCount
static unsigned long	elapsedTime
static unsigned long	lastCrankAngleCalc
static unsigned long	lastVVTtime
TESTABLE_STATIC uint16_t	ignition1EndTooth = 0
TESTABLE_STATIC uint16_t	ignition2EndTooth = 0
TESTABLE_STATIC uint16_t	ignition3EndTooth = 0
TESTABLE_STATIC uint16_t	ignition4EndTooth = 0
static int16_t	toothAngles [24]
TESTABLE_STATIC decoder_status_t	decoderStatus
static port_register_t	triggerPri_pin_port
static pin_mask_t	triggerPri_pin_mask
static port_register_t	triggerSec_pin_port
static pin_mask_t	triggerSec_pin_mask
static port_register_t	triggerThird_pin_port
static pin_mask_t	triggerThird_pin_mask
static decoder_features_t	decoderFeatures
volatile unsigned long	roverMEMSTeethSeen = 0

Detailed Description

Crank and Cam decoders

This file contains the various crank and cam wheel decoder functions. Each decoder must have the following 4 functions (Where xxxx is the decoder name):

• triggerSetup_xxxx - Called once from within setup() and configures any required variables
• triggerPri_xxxx - Called each time the primary (No. 1) crank/cam signal is triggered (Called as an interrupt, so variables must be declared volatile)
• triggerSec_xxxx - Called each time the secondary (No. 2) crank/cam signal is triggered (Called as an interrupt, so variables must be declared volatile)
• getRPM_xxxx - Returns the current RPM, as calculated by the decoder
• getCrankAngle_xxxx - Returns the current crank angle, as calculated by the decoder
• getCamAngle_xxxx - Returns the current CAM angle, as calculated by the decoder

Each decoder must utilise at least the following variables:

• toothLastToothTime - The time (In uS) that the last primary tooth was 'seen'

Macro Definition Documentation

ID_TOOTH_PATTERN

#define ID_TOOTH_PATTERN   0

READ_PRI_TRIGGER

#define READ_PRI_TRIGGER

(

)

digitalRead(pinTrigger)

READ_SEC_TRIGGER

#define READ_SEC_TRIGGER

(

)

digitalRead(pinTrigger2)

READ_THIRD_TRIGGER

#define READ_THIRD_TRIGGER

(

)

digitalRead(pinTrigger3)

SKIP_TOOTH1

#define SKIP_TOOTH1   1

SKIP_TOOTH2

#define SKIP_TOOTH2   2

SKIP_TOOTH3

#define SKIP_TOOTH3   3

SKIP_TOOTH4

#define SKIP_TOOTH4   4

TOOTH_CAM_SECONDARY

#define TOOTH_CAM_SECONDARY   1

TOOTH_CAM_TERTIARY

#define TOOTH_CAM_TERTIARY   2

TOOTH_CRANK

#define TOOTH_CRANK   0

Function Documentation

initDecoderPins()

void initDecoderPins	(	uint8_t	primaryPin,
		uint8_t	secondaryPin,
		uint8_t	tertiaryPin
	)

Set the input pins for the decoders. Pin numbers are pulled from the tune.

Parameters

primaryPin	Primary pin - usually the crank trigger
secondaryPin	Secondary pin - optional, usually the cam trigger
tertiaryPin	Tertiary pin - optional, for decoders that use a 3rd input. E.g. VVT

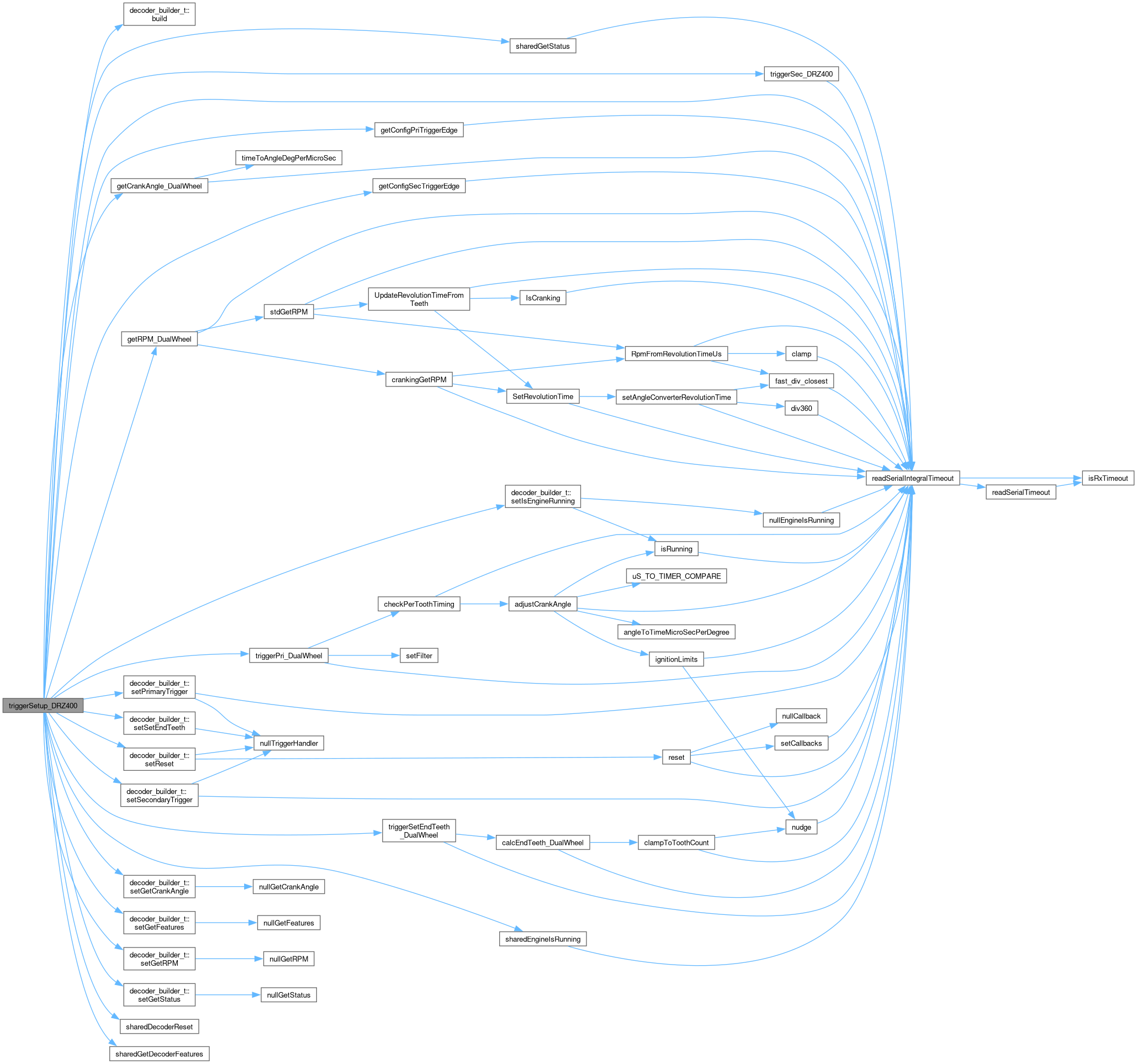

Here is the call graph for this function:

Here is the caller graph for this function:

initTriggerPin()

static void initTriggerPin ( uint8_t  pin, port_register_t &  pinPort, pin_mask_t &  pinMask  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSec_DRZ400()

static void triggerSec_DRZ400 ( void  )

static

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSetup_DRZ400()

decoder_t triggerSetup_DRZ400

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

checkSyncToothCount

byte checkSyncToothCount

static

curGap

volatile unsigned long curGap

static

curGap2

volatile unsigned long curGap2

static

curGap3

volatile unsigned long curGap3

static

curTime

volatile unsigned long curTime

static

curTime2

volatile unsigned long curTime2

static

curTime3

volatile unsigned long curTime3

static

decoderStatus

TESTABLE_STATIC decoder_status_t decoderStatus

elapsedTime

unsigned long elapsedTime

static

ignition1EndTooth

TESTABLE_STATIC uint16_t ignition1EndTooth = 0

ignition2EndTooth

TESTABLE_STATIC uint16_t ignition2EndTooth = 0

ignition3EndTooth

TESTABLE_STATIC uint16_t ignition3EndTooth = 0

ignition4EndTooth

TESTABLE_STATIC uint16_t ignition4EndTooth = 0

lastCrankAngleCalc

unsigned long lastCrankAngleCalc

static

lastGap

volatile unsigned long lastGap

static

lastSyncRevolution

volatile unsigned long lastSyncRevolution = 0

static

lastVVTtime

unsigned long lastVVTtime

static

MAX_STALL_TIME

TESTABLE_STATIC unsigned long MAX_STALL_TIME = MICROS_PER_SEC/2U

revolutionOne

volatile bool revolutionOne = 0

static

secondaryLastToothTime1

volatile unsigned long secondaryLastToothTime1 = 0

static

secondaryToothCount

volatile unsigned int secondaryToothCount

static

targetGap

volatile unsigned long targetGap

static

targetGap2

volatile unsigned long targetGap2

static

targetGap3

volatile unsigned long targetGap3

static

toothAngles

int16_t toothAngles[24]

static

toothCurrentCount

TESTABLE_STATIC uint16_t toothCurrentCount = 0

toothLastMinusOneSecToothTime

volatile unsigned long toothLastMinusOneSecToothTime = 0

static

toothLastMinusOneToothTime

TESTABLE_STATIC volatile unsigned long toothLastMinusOneToothTime = 0

toothLastSecToothRisingTime

TESTABLE_STATIC volatile unsigned long toothLastSecToothRisingTime = 0

toothLastSecToothTime

volatile unsigned long toothLastSecToothTime = 0

static

toothLastThirdToothTime

volatile unsigned long toothLastThirdToothTime = 0

static

toothLastToothRisingTime

TESTABLE_STATIC volatile unsigned long toothLastToothRisingTime = 0

toothLastToothTime

TESTABLE_STATIC volatile unsigned long toothLastToothTime = 0

toothOneMinusOneTime

volatile unsigned long toothOneMinusOneTime = 0

static

toothOneTime

volatile unsigned long toothOneTime = 0

static

toothSystemCount

TESTABLE_STATIC volatile byte toothSystemCount = 0

toothSystemLastToothTime

TESTABLE_STATIC volatile unsigned long toothSystemLastToothTime = 0

triggerActualTeeth

uint16_t triggerActualTeeth

static

triggerFilterTime

TESTABLE_STATIC volatile unsigned long triggerFilterTime

triggerPri_pin_mask

pin_mask_t triggerPri_pin_mask

static

triggerPri_pin_port

port_register_t triggerPri_pin_port

static

triggerSec_pin_mask

pin_mask_t triggerSec_pin_mask

static

triggerSec_pin_port

port_register_t triggerSec_pin_port

static

triggerSecFilterTime

volatile unsigned long triggerSecFilterTime

static

triggerSecFilterTime_duration

unsigned int triggerSecFilterTime_duration

static

triggerThird_pin_mask

pin_mask_t triggerThird_pin_mask

static

triggerThird_pin_port

port_register_t triggerThird_pin_port

static

triggerThirdFilterTime

volatile unsigned long triggerThirdFilterTime

static

triggerToothAngle

TESTABLE_STATIC volatile uint16_t triggerToothAngle
