Dual wheels

Functions
void	triggerSetup_DualWheel (void)
void	triggerPri_DualWheel (void)
void	triggerSec_DualWheel (void)
uint16_t	getRPM_DualWheel (void)
int	getCrankAngle_DualWheel (void)
static uint16_t	calcEndTeeth_DualWheel (int ignitionAngle, uint8_t toothAdder)
void	triggerSetEndTeeth_DualWheel (void)

Detailed Description

Dual wheels - 2 wheels located either both on the crank or with the primary on the crank and the secondary on the cam. Note: There can be no missing teeth on the primary wheel.

Function Documentation

calcEndTeeth_DualWheel()

static uint16_t calcEndTeeth_DualWheel ( int  ignitionAngle, uint8_t  toothAdder  )

static

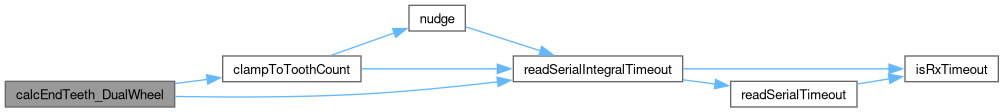

Here is the call graph for this function:

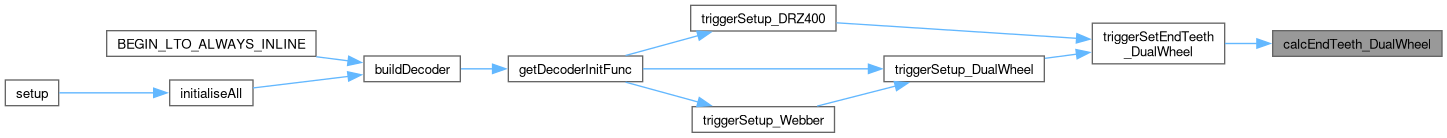

Here is the caller graph for this function:

getCrankAngle_DualWheel()

int getCrankAngle_DualWheel

(

void

)

Dual Wheel - Get Crank angle.

Here is the call graph for this function:

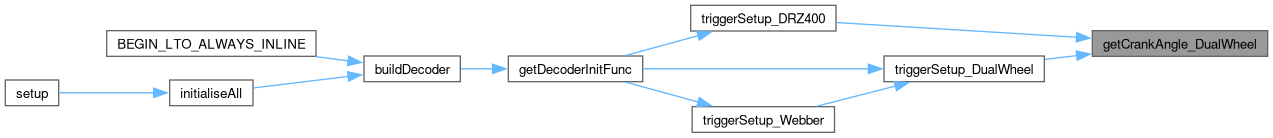

Here is the caller graph for this function:

getRPM_DualWheel()

uint16_t getRPM_DualWheel

(

void

)

Dual Wheel - Get RPM.

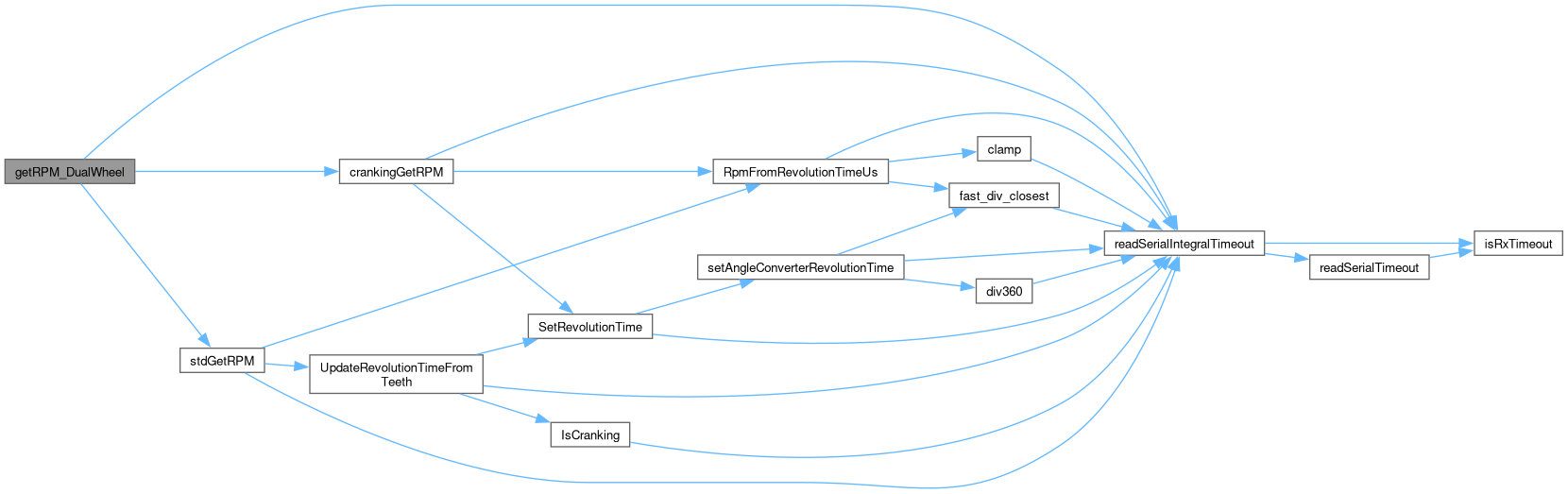

Here is the call graph for this function:

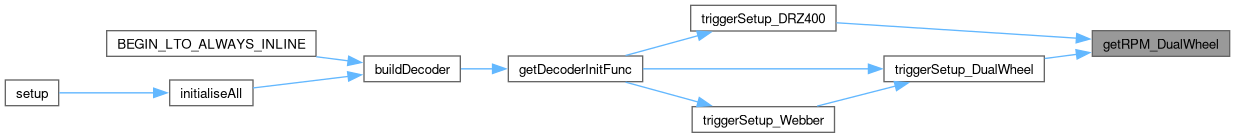

Here is the caller graph for this function:

triggerPri_DualWheel()

void triggerPri_DualWheel

(

void

)

Dual Wheel Primary.

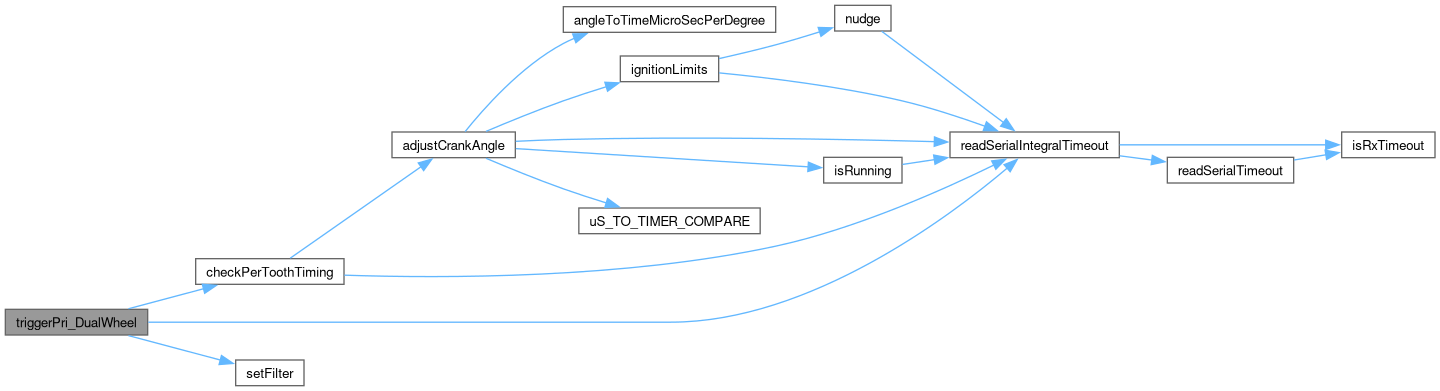

Here is the call graph for this function:

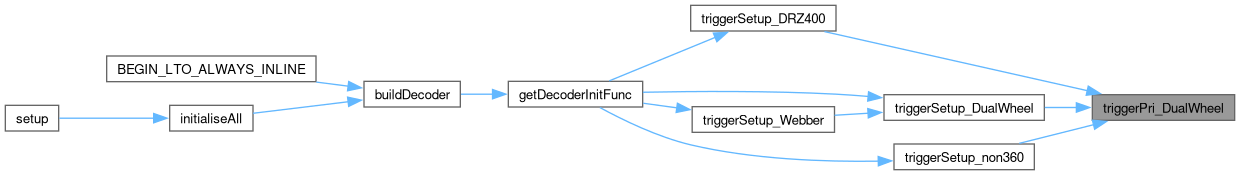

Here is the caller graph for this function:

triggerSec_DualWheel()

void triggerSec_DualWheel

(

void

)

Dual Wheel Secondary.

Here is the call graph for this function:

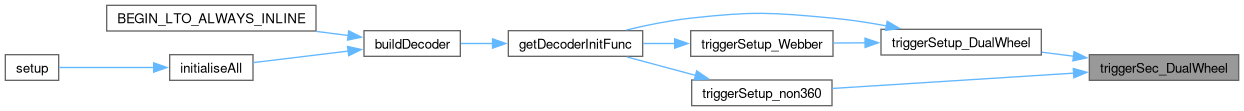

Here is the caller graph for this function:

triggerSetEndTeeth_DualWheel()

void triggerSetEndTeeth_DualWheel

(

void

)

Dual Wheel - Set End Teeth.

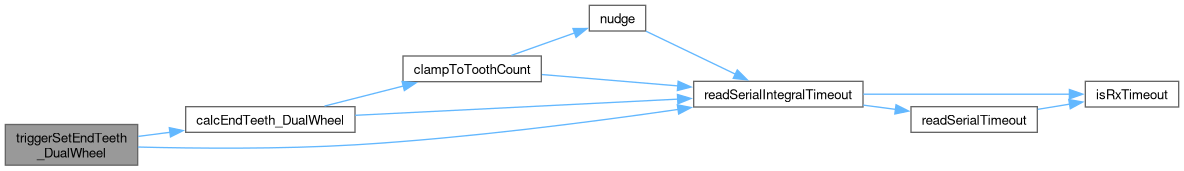

Here is the call graph for this function:

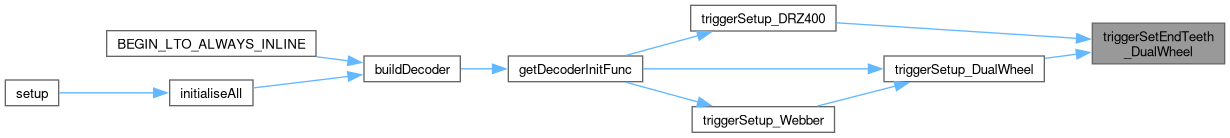

Here is the caller graph for this function:

triggerSetup_DualWheel()

void triggerSetup_DualWheel

(

void

)

Dual Wheel Setup.

Here is the call graph for this function:

Here is the caller graph for this function:
