36-2-2-2 Trigger wheel

Functions
void	triggerSetup_ThirtySixMinus222 (void)
void	triggerPri_ThirtySixMinus222 (void)
void	triggerSec_ThirtySixMinus222 (void)
uint16_t	getRPM_ThirtySixMinus222 (void)
int	getCrankAngle_ThirtySixMinus222 (void)
void	triggerSetEndTeeth_ThirtySixMinus222 (void)

Detailed Description

36-2-2-2 crank based trigger wheel. A crank based trigger with a nominal 36 teeth, but 6 of these removed in 3 groups of 2. 2 of these groups are located concurrently. Note: This decoder supports both the H4 version (13-missing-16-missing-1-missing) and the H6 version of 36-2-2-2 (19-missing-10-missing-1-missing). The decoder checks which pattern is selected in order to determine the tooth number Note: www.thefactoryfiveforum.com/attachment.php?attachmentid=34279&d=1412431418

Function Documentation

getCrankAngle_ThirtySixMinus222()

int getCrankAngle_ThirtySixMinus222

(

void

)

getRPM_ThirtySixMinus222()

uint16_t getRPM_ThirtySixMinus222

(

void

)

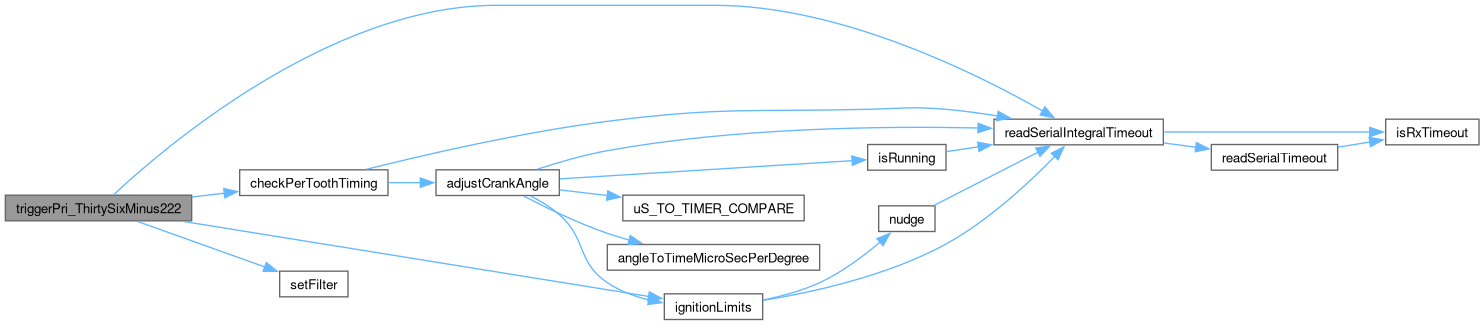

Here is the call graph for this function:

Here is the caller graph for this function:

triggerPri_ThirtySixMinus222()

void triggerPri_ThirtySixMinus222

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSec_ThirtySixMinus222()

void triggerSec_ThirtySixMinus222

(

void

)

Here is the caller graph for this function:

triggerSetEndTeeth_ThirtySixMinus222()

void triggerSetEndTeeth_ThirtySixMinus222

(

void

)

Here is the caller graph for this function:

triggerSetup_ThirtySixMinus222()

void triggerSetup_ThirtySixMinus222

(

void

)

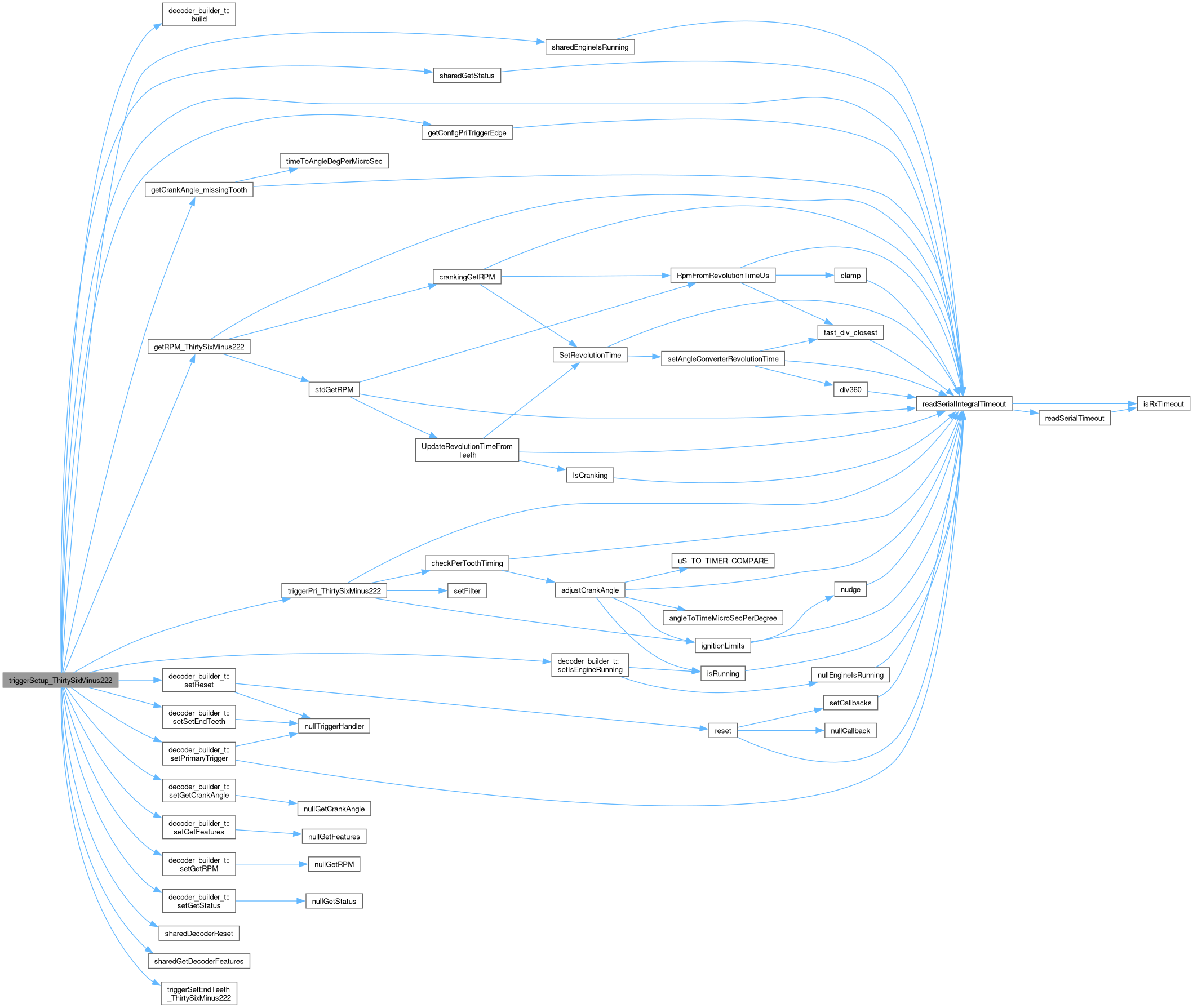

Here is the call graph for this function:

Here is the caller graph for this function:
