Ford TFI

Functions
static void	triggerPri_FordTFI (void)
static void	triggerSec_FordTFI (void)
static uint16_t	getRPM_FordTFI (void)
static int16_t	getCrankAngle_FordTFI (void)
static void	triggerSetEndTeeth_FordTFI (void)
decoder_t	triggerSetup_FordTFI (void)

Detailed Description

Ford TFI - Distributor mounted signal tooth wheel. Same number of teeth as cylinders. Evenly spaced rising edge triggers, Cylinder 1 has a narrow teeth and will have a signature falling edge

Function Documentation

getCrankAngle_FordTFI()

static int16_t getCrankAngle_FordTFI ( void  )

static

Ford TFI - Get Crank angle.

Here is the call graph for this function:

Here is the caller graph for this function:

getRPM_FordTFI()

static uint16_t getRPM_FordTFI ( void  )

static

Ford TFI - Get RPM.

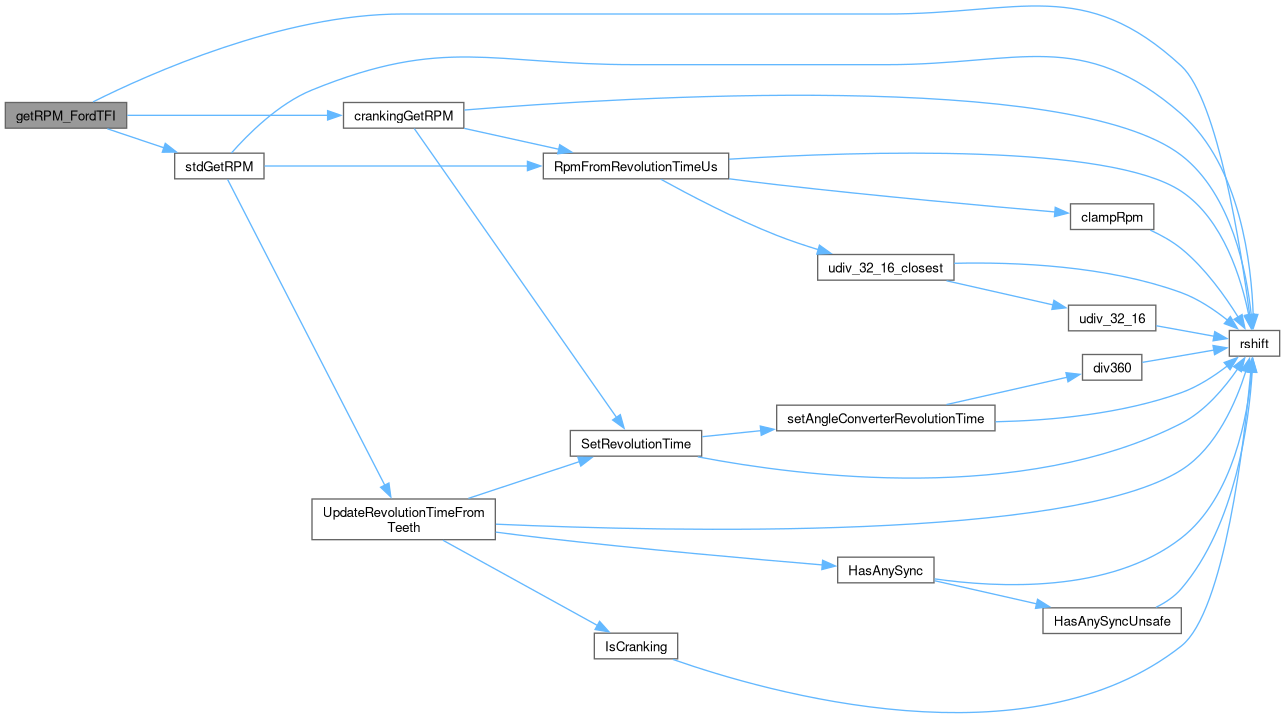

Here is the call graph for this function:

Here is the caller graph for this function:

triggerPri_FordTFI()

static void triggerPri_FordTFI ( void  )

static

Ford TFI Primary (Rising Edge).

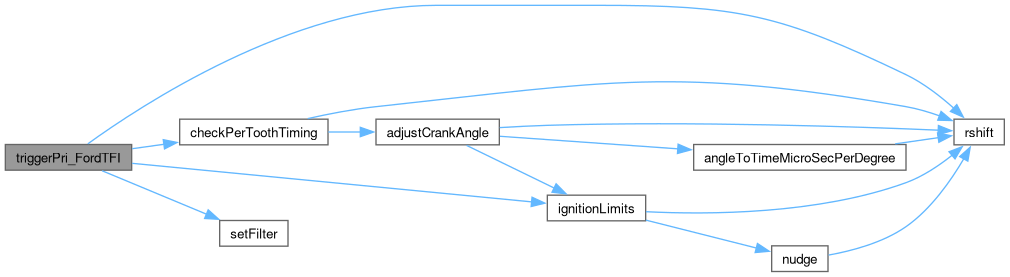

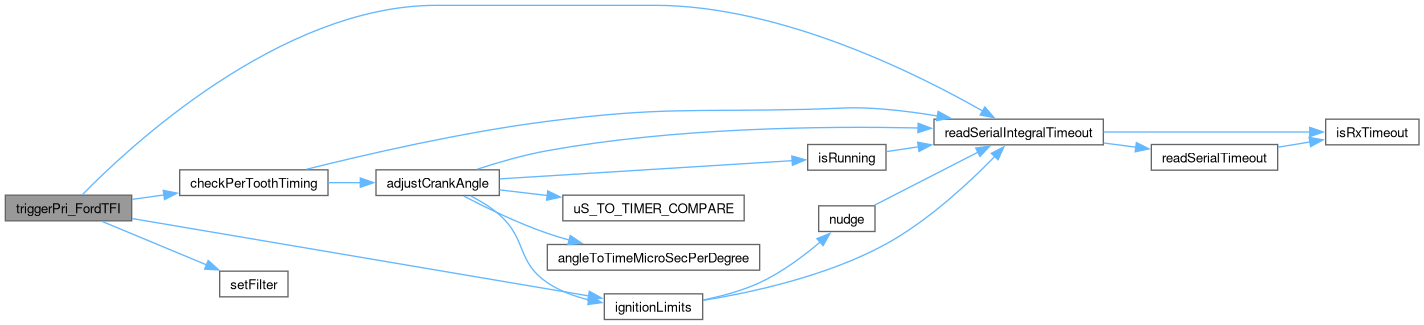

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSec_FordTFI()

static void triggerSec_FordTFI ( void  )

static

Ford TFI Secondary (Falling Edge).

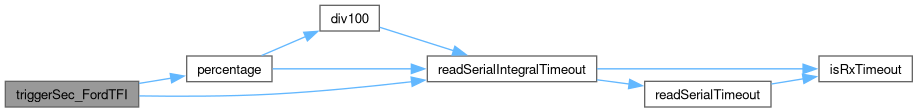

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSetEndTeeth_FordTFI()

static void triggerSetEndTeeth_FordTFI ( void  )

static

Ford TFI - Set End Teeth.

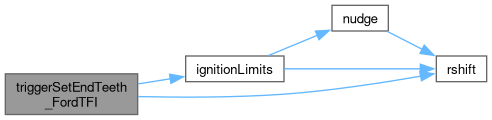

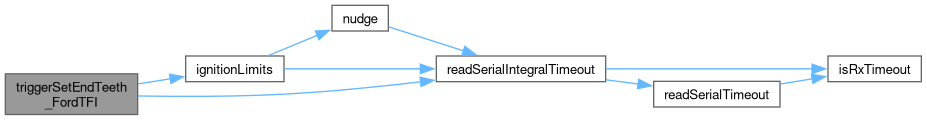

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSetup_FordTFI()

decoder_t triggerSetup_FordTFI

(

void

)

Ford TFI Setup.

Here is the call graph for this function:
