Audi 135

Functions
void	triggerSetup_Audi135 (void)
void	triggerPri_Audi135 (void)
void	triggerSec_Audi135 (void)
uint16_t	getRPM_Audi135 (void)
int	getCrankAngle_Audi135 (void)
void	triggerSetEndTeeth_Audi135 (void)

Detailed Description

Audi with 135 teeth on the crank and 1 tooth on the cam. This is very similar to the dual wheel decoder, however due to the 135 teeth not dividing evenly into 360, only every 3rd crank tooth is used in calculating the crank angle. This effectively makes it a 45 tooth dual wheel setup.

Function Documentation

getCrankAngle_Audi135()

int getCrankAngle_Audi135

(

void

)

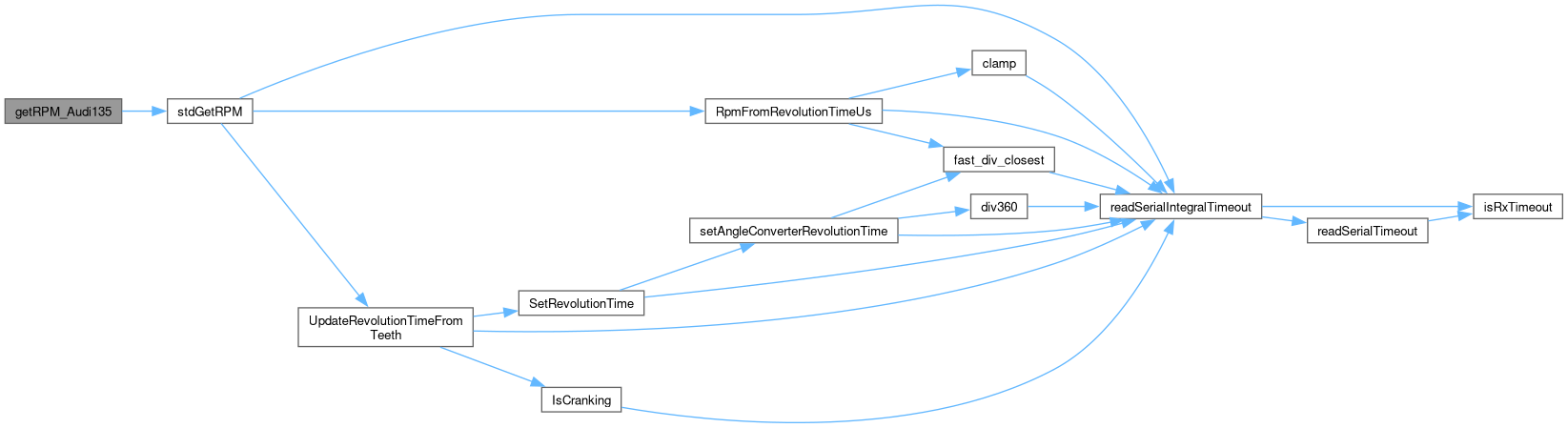

Here is the call graph for this function:

Here is the caller graph for this function:

getRPM_Audi135()

uint16_t getRPM_Audi135

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

triggerPri_Audi135()

void triggerPri_Audi135

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

triggerSec_Audi135()

void triggerSec_Audi135

(

void

)

Here is the caller graph for this function:

triggerSetEndTeeth_Audi135()

void triggerSetEndTeeth_Audi135

(

void

)

Here is the caller graph for this function:

triggerSetup_Audi135()

void triggerSetup_Audi135

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:
