#include "sensors.h"
#include "crankMaths.h"
#include "globals.h"
#include "maths.h"
#include "storage.h"
#include "comms.h"
#include "idle.h"
#include "corrections.h"
#include "pages.h"
#include "decoders.h"
#include "auxiliaries.h"
#include "utilities.h"
#include "unit_testing.h"
#include "sensors_map_structs.h"
#include "units.h"
#include "atomic.h"
#include "board_definition.h"
#include "preprocessor.h"
#include "static_for.hpp"
#include "polling.hpp"

Functions
TESTABLE_INLINE_STATIC int16_t	fastMap10Bit (uint16_t value, int16_t rangeMin, int16_t rangeMax)
	A specialist function to map a value in the range [0, 1023] (I.e. 10-bit) to a different range.

static uint16_t	readAnalogPin (uint8_t pin)

static uint16_t	readAnalogSensor (uint8_t pin)

static uint16_t	readMAPSensor (uint8_t pin)

void	initialiseADC (void)

TESTABLE_INLINE_STATIC bool	instanteneousMAPReading (void)

static bool	cycleAverageMAPReadingAccumulate (map_cycle_average_t &cycle_average, const map_adc_readings_t &sensorReadings)

static void	reset (const statuses &current, map_cycle_average_t &cycle_average, const map_adc_readings_t &sensorReadings)

static bool	cycleAverageEndCycle (const statuses &current, map_cycle_average_t &cycle_average, map_adc_readings_t &sensorReadings)

static bool	isCycleCurrent (const statuses &current, uint32_t cycleStartIndex)

static bool	isCycleCurrent (const statuses &current, const map_cycle_average_t &cycle_avg)

TESTABLE_INLINE_STATIC bool	canUseCycleAverage (const statuses &current, const config2 &page2)

TESTABLE_INLINE_STATIC bool	cycleAverageMAPReading (const statuses &current, const config2 &page2, map_cycle_average_t &cycle_average, map_adc_readings_t &sensorReadings)

static bool	cycleMinimumAccumulate (map_cycle_min_t &cycle_min, const map_adc_readings_t &sensorReadings)

static void	reset (const statuses &current, map_cycle_min_t &cycle_min, const map_adc_readings_t &sensorReadings)

static bool	cycleMinimumEndCycle (const statuses &current, map_cycle_min_t &cycle_min, map_adc_readings_t &sensorReadings)

static bool	isCycleCurrent (const statuses &current, const map_cycle_min_t &cycle_min)

TESTABLE_INLINE_STATIC bool	cycleMinimumMAPReading (const statuses &current, const config2 &page2, map_cycle_min_t &cycle_min, map_adc_readings_t &sensorReadings)

static bool	eventAverageAccumulate (map_event_average_t &eventAverage, const map_adc_readings_t &sensorReadings)

static bool	isIgnitionEventValid (const map_event_average_t &eventAverage)

static void	reset (map_event_average_t &eventAverage, const map_adc_readings_t &sensorReadings)

static bool	eventAverageEndEvent (map_event_average_t &eventAverage, map_adc_readings_t &sensorReadings)

static bool	isIgnitionEventCurrent (const map_event_average_t &eventAverage)

TESTABLE_INLINE_STATIC bool	canUseEventAverage (const statuses &current, const config2 &page2)

TESTABLE_INLINE_STATIC bool	eventAverageMAPReading (const statuses &current, const config2 &page2, map_event_average_t &eventAverage, map_adc_readings_t &sensorReadings)

static bool	isValidMapSensorReading (uint16_t reading)

TESTABLE_INLINE_STATIC uint16_t	validateFilterMapSensorReading (uint16_t reading, uint8_t alpha, uint16_t prior)

static uint16_t	readFilteredMapADC (uint8_t pin, uint8_t alpha, uint16_t prior)

static map_adc_readings_t	readMapSensors (const map_adc_readings_t &previousReadings, const config4 &page4, bool useEMAP)

static void	storeLastMAPReadings (map_last_read_t &lastRead, uint16_t oldMAPValue)

static uint16_t	mapADCToMAP (uint16_t mapADC, int8_t mapMin, uint16_t mapMax)

static void	setMAPValuesFromReadings (const map_adc_readings_t &readings, const config2 &page2, bool useEMAP, statuses &current)

static void	readMAP (void)

int16_t	getMAPDelta (void)
	Get the MAP change between the last 2 readings.

uint32_t	getMAPDeltaTime (void)
	Get the time in µS between the last 2 MAP readings.

static bool	isCTPSSensorActive (void)

static void	readTPS (uint8_t tpsADC)

static void	readTPS (void)

void	initialiseTPS (void)
	Initial reading of the TPS sensor, primarily to detect flood clear state.

static void	readCLT (void)

void	initialiseCLT (void)
	Initial reading of the coolant sensor, primarily to make sure the priming pulsewidth is correct.

static void	readIAT (void)

static bool	isValidBaro (uint8_t baro)

static void	setBaroFromSensorReading (uint16_t sensorReading)

static void	setBaroFromMAP (void)

static void	readBaro (void)

void	initialiseMAPBaro (void)
	Initialize the MAP calculation & Baro values.

void	resetMAPcycleAndEvent (void)

static void	readO2_1 (void)

static void	readO2_2 (void)

static void	readO2 (void)

static void	readBat (void)

static void	enableAnalogIsr (void)

static void	readSpeed (void)

static void	readGear (void)

static void	updateFuelPressure (void)

static void	updateOilPressure (void)

void	readPolledSensors (byte loopTimer)
	Read the sensors that are polled at every loop. This includes the TPS, MAP, CLT, IAT and O2 sensors.

uint32_t	vssGetPulseGap (uint8_t historyIndex)
	Returns the VSS pulse gap for a given history point.

static uint16_t	getSpeed (void)

static byte	getGear (void)

static byte	getFuelPressure (void)

static byte	getOilPressure (void)

uint8_t	getAnalogKnock (void)

void	flexPulse (void)

void	knockPulse (void)

void	vssPulse (void)
	The ISR function for VSS pulses.

uint16_t	readAuxanalog (uint8_t analogPin)

uint16_t	readAuxdigital (uint8_t digitalPin)

Variables
uint8_t	statusSensors = 0

static volatile uint32_t	vssTimes [VSS_SAMPLES] = {0}

static volatile uint8_t	vssIndex = 0U

volatile uint8_t	flexCounter = 0U

static volatile uint32_t	flexStartTime = 0UL

volatile uint32_t	flexPulseWidth = 0U

static map_algorithm_t	mapAlgorithmState

static uint16_t	cltCalibration_bins [32]

static uint16_t	cltCalibration_values [32]

static uint16_t	iatCalibration_bins [32]

static uint16_t	iatCalibration_values [32]

static uint16_t	o2Calibration_bins [32]

static uint8_t	o2Calibration_values [32]

static constexpr uint16_t	VALID_MAP_MAX =1022U

static constexpr uint16_t	VALID_MAP_MIN =2U

Detailed Description

Read sensors with appropriate timing / scheduling.

Function Documentation

◆ canUseCycleAverage()

TESTABLE_INLINE_STATIC bool canUseCycleAverage	(	const statuses &	current,
		const config2 &	page2
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canUseEventAverage()

TESTABLE_INLINE_STATIC bool canUseEventAverage	(	const statuses &	current,
		const config2 &	page2
	)

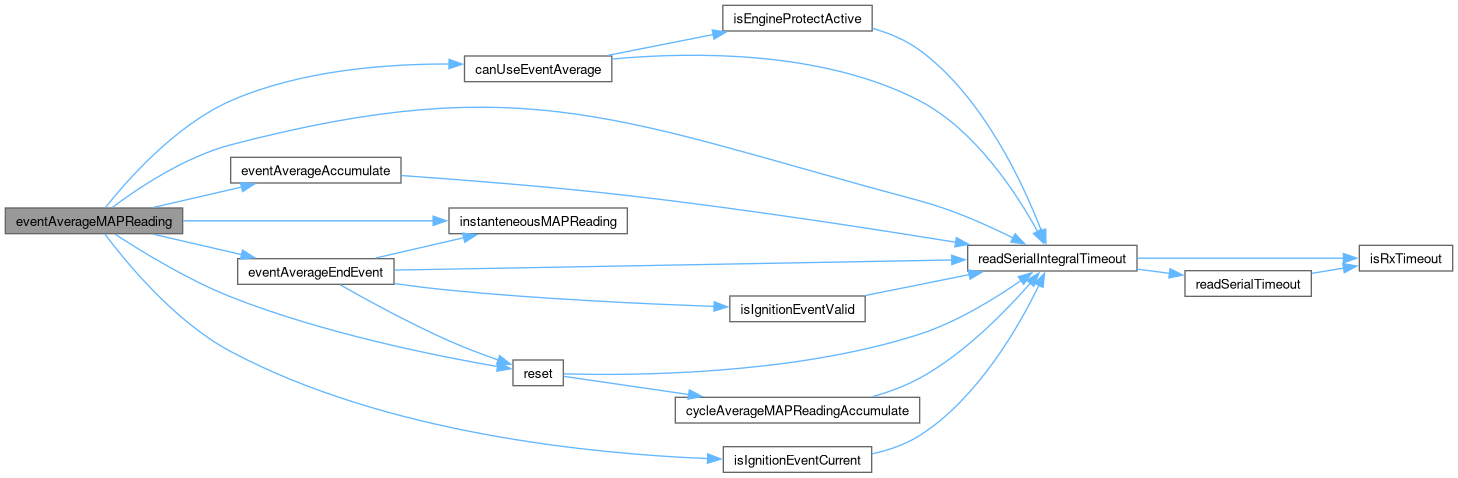

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleAverageEndCycle()

static bool cycleAverageEndCycle	(	const statuses &	current,
		map_cycle_average_t &	cycle_average,
		map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleAverageMAPReading()

TESTABLE_INLINE_STATIC bool cycleAverageMAPReading	(	const statuses &	current,
		const config2 &	page2,
		map_cycle_average_t &	cycle_average,
		map_adc_readings_t &	sensorReadings
	)

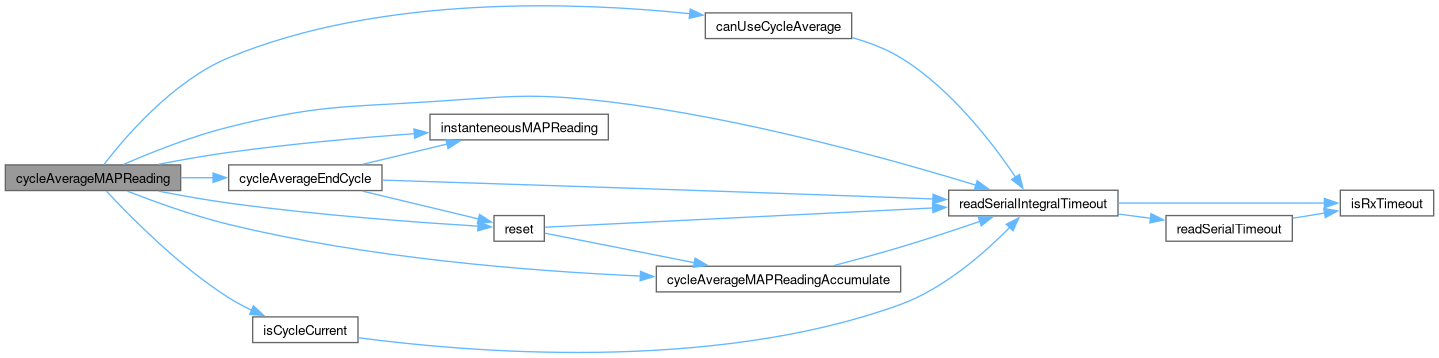

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleAverageMAPReadingAccumulate()

static bool cycleAverageMAPReadingAccumulate	(	map_cycle_average_t &	cycle_average,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleMinimumAccumulate()

static bool cycleMinimumAccumulate	(	map_cycle_min_t &	cycle_min,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleMinimumEndCycle()

static bool cycleMinimumEndCycle	(	const statuses &	current,
		map_cycle_min_t &	cycle_min,
		map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cycleMinimumMAPReading()

TESTABLE_INLINE_STATIC bool cycleMinimumMAPReading	(	const statuses &	current,
		const config2 &	page2,
		map_cycle_min_t &	cycle_min,
		map_adc_readings_t &	sensorReadings
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ enableAnalogIsr()

static void enableAnalogIsr ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ eventAverageAccumulate()

static bool eventAverageAccumulate	(	map_event_average_t &	eventAverage,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ eventAverageEndEvent()

static bool eventAverageEndEvent	(	map_event_average_t &	eventAverage,
		map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ eventAverageMAPReading()

TESTABLE_INLINE_STATIC bool eventAverageMAPReading	(	const statuses &	current,
		const config2 &	page2,
		map_event_average_t &	eventAverage,
		map_adc_readings_t &	sensorReadings
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fastMap10Bit()

TESTABLE_INLINE_STATIC int16_t fastMap10Bit	(	uint16_t	value,
		int16_t	rangeMin,
		int16_t	rangeMax
	)

A specialist function to map a value in the range [0, 1023] (I.e. 10-bit) to a different range.

Mostly used for analog input voltage level to real world value conversions.

analogRead returns a number in the range [0, 1023], representing the pin input voltage from min to max (typically 0V - 5V) We need to convert that value to the real world value the sensor is reading (pressure, temperature etc.) If:

rangeMin is the real world value when the sensor is reading 0V
rangeMax is the real world measurement when the sensor is reading 5V
There is a linear relationship between voltage output and the real world value.

then this function will return the real world measurement (kPa, °C etc)

Parameters

value	Value to map (should be in range [0, 1023])
rangeMin	Minimum of the output range
rangeMax	Maximum of the output range

Returns: int16_t

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flexPulse()

void flexPulse ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getAnalogKnock()

uint8_t getAnalogKnock ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFuelPressure()

static byte getFuelPressure ( void )

static

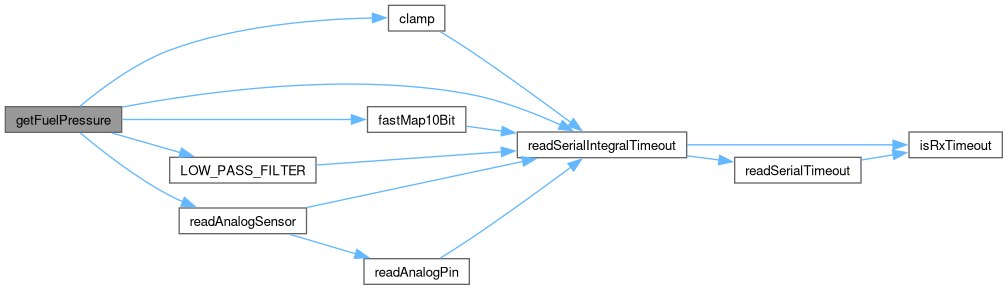

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getGear()

static byte getGear ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMAPDelta()

int16_t getMAPDelta ( void )

Get the MAP change between the last 2 readings.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getMAPDeltaTime()

uint32_t getMAPDeltaTime ( void )

Get the time in µS between the last 2 MAP readings.

Here is the caller graph for this function:

◆ getOilPressure()

static byte getOilPressure ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSpeed()

static uint16_t getSpeed ( void )

static

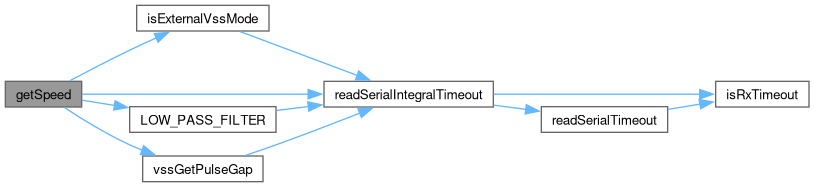

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialiseADC()

void initialiseADC ( void )

Init all ADC conversions by setting resolutions, etc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialiseCLT()

void initialiseCLT ( void )

Initial reading of the coolant sensor, primarily to make sure the priming pulsewidth is correct.

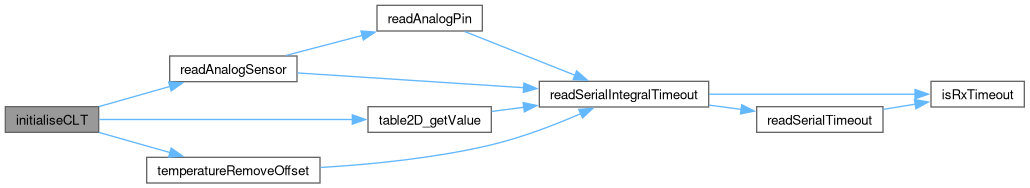

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialiseMAPBaro()

void initialiseMAPBaro ( void )

Initialize the MAP calculation & Baro values.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initialiseTPS()

void initialiseTPS ( void )

Initial reading of the TPS sensor, primarily to detect flood clear state.

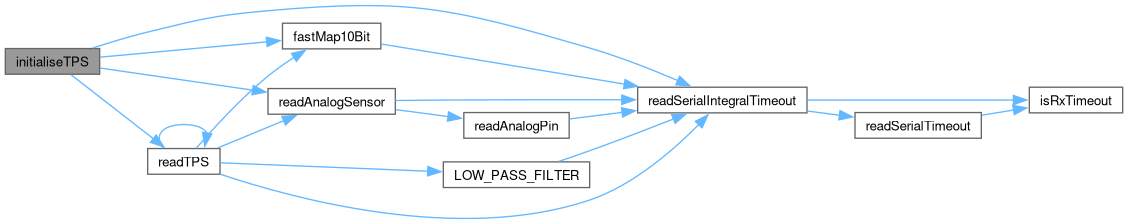

Here is the call graph for this function:

Here is the caller graph for this function:

◆ instanteneousMAPReading()

TESTABLE_INLINE_STATIC bool instanteneousMAPReading ( void )

Here is the caller graph for this function:

◆ isCTPSSensorActive()

static bool isCTPSSensorActive ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isCycleCurrent() [1/3]

static bool isCycleCurrent	(	const statuses &	current,
		const map_cycle_average_t &	cycle_avg
	)

inlinestatic

Here is the call graph for this function:

◆ isCycleCurrent() [2/3]

static bool isCycleCurrent	(	const statuses &	current,
		const map_cycle_min_t &	cycle_min
	)

inlinestatic

Here is the call graph for this function:

◆ isCycleCurrent() [3/3]

static bool isCycleCurrent	(	const statuses &	current,
		uint32_t	cycleStartIndex
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isIgnitionEventCurrent()

static bool isIgnitionEventCurrent ( const map_event_average_t & eventAverage )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isIgnitionEventValid()

static bool isIgnitionEventValid ( const map_event_average_t & eventAverage )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isValidBaro()

static bool isValidBaro ( uint8_t baro )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isValidMapSensorReading()

static bool isValidMapSensorReading ( uint16_t reading )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ knockPulse()

void knockPulse ( void )

Here is the caller graph for this function:

◆ mapADCToMAP()

static uint16_t mapADCToMAP	(	uint16_t	mapADC,
		int8_t	mapMin,
		uint16_t	mapMax
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

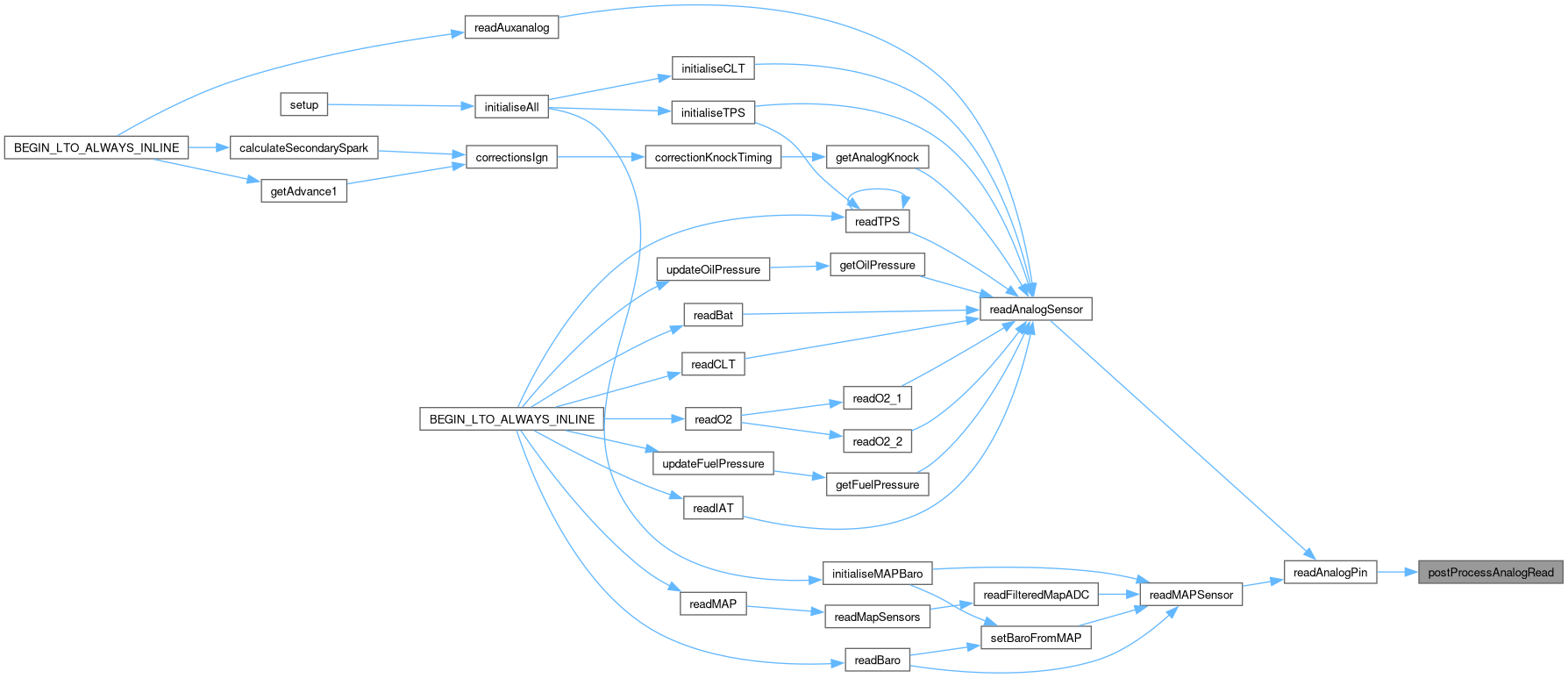

◆ readAnalogPin()

static uint16_t readAnalogPin ( uint8_t pin )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAnalogSensor()

static uint16_t readAnalogSensor ( uint8_t pin )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAuxanalog()

uint16_t readAuxanalog ( uint8_t analogPin )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAuxdigital()

uint16_t readAuxdigital ( uint8_t digitalPin )

Here is the call graph for this function:

Here is the caller graph for this function:

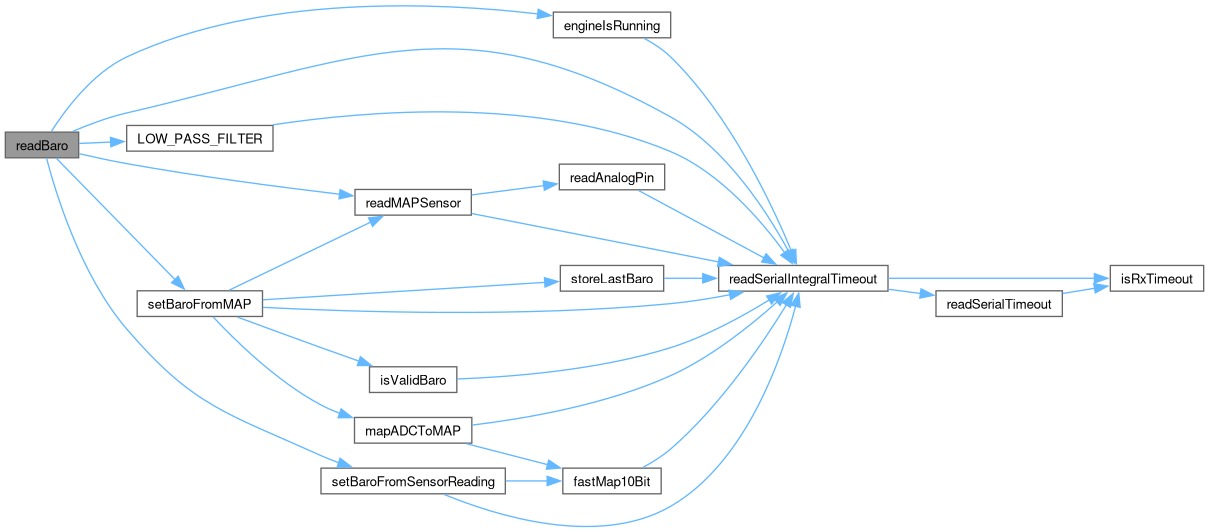

◆ readBaro()

static void readBaro ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

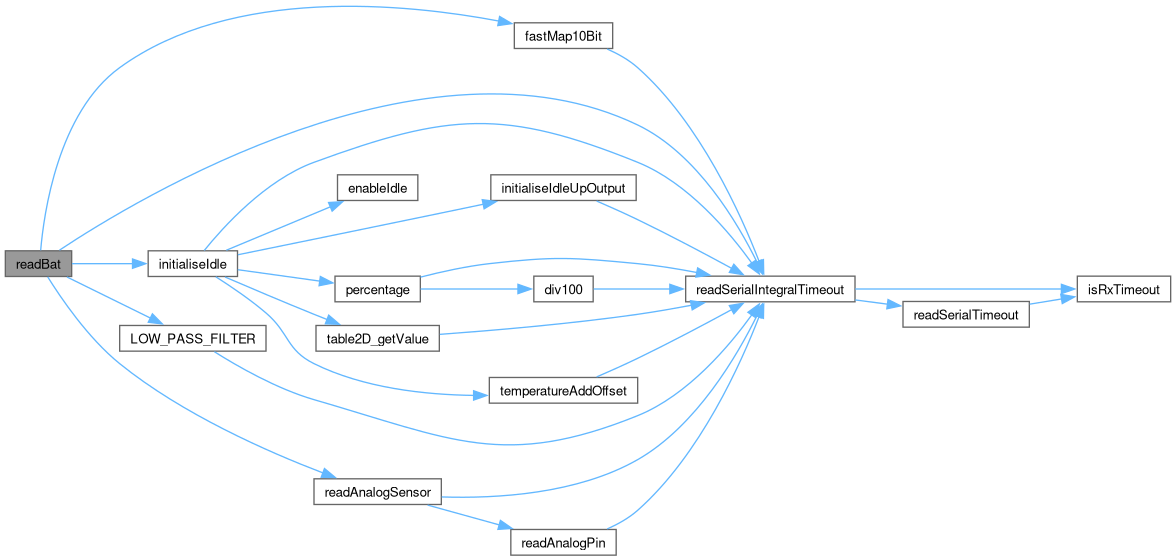

◆ readBat()

static void readBat ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

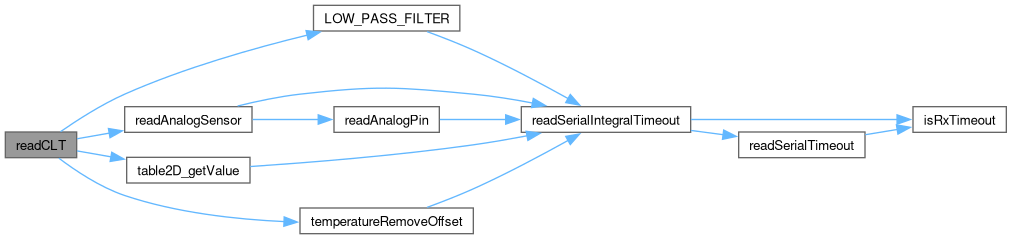

◆ readCLT()

static void readCLT ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readFilteredMapADC()

static uint16_t readFilteredMapADC	(	uint8_t	pin,
		uint8_t	alpha,
		uint16_t	prior
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readGear()

static void readGear ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readIAT()

static void readIAT ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readMAP()

static void readMAP ( void )

inlinestatic

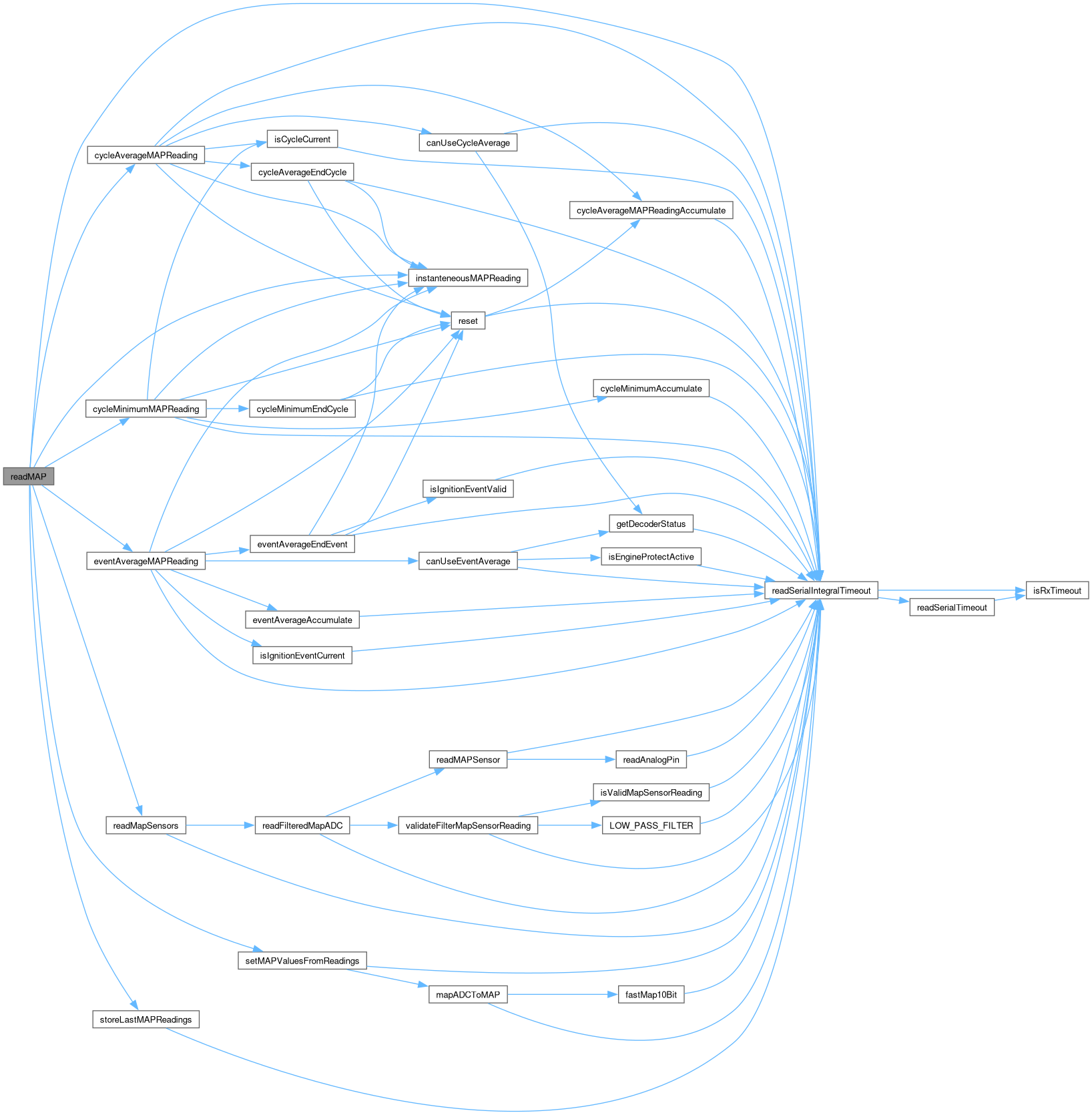

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readMAPSensor()

static uint16_t readMAPSensor ( uint8_t pin )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readMapSensors()

static map_adc_readings_t readMapSensors	(	const map_adc_readings_t &	previousReadings,
		const config4 &	page4,
		bool	useEMAP
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readO2()

static void readO2 ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readO2_1()

static void readO2_1 ( void )

inlinestatic

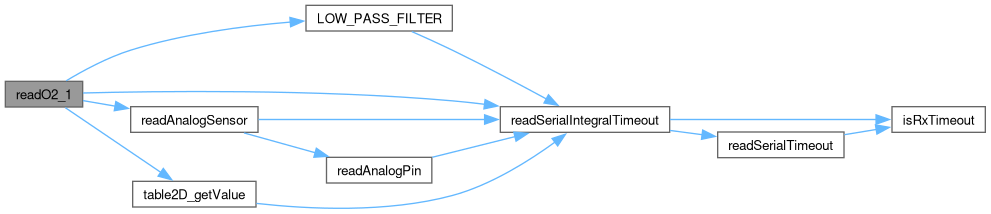

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readO2_2()

static void readO2_2 ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

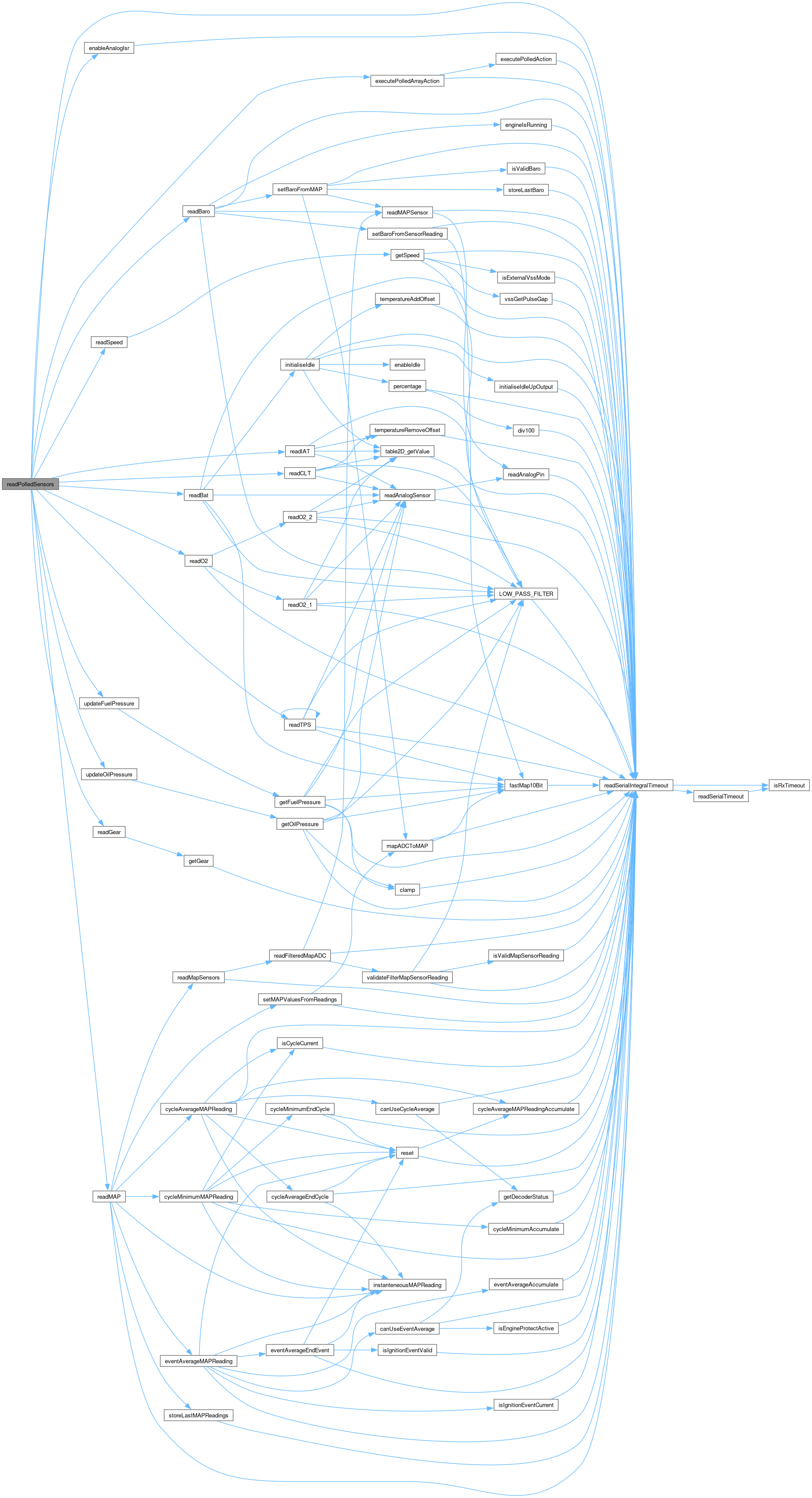

◆ readPolledSensors()

void readPolledSensors ( byte loopTimer )

Read the sensors that are polled at every loop. This includes the TPS, MAP, CLT, IAT and O2 sensors.

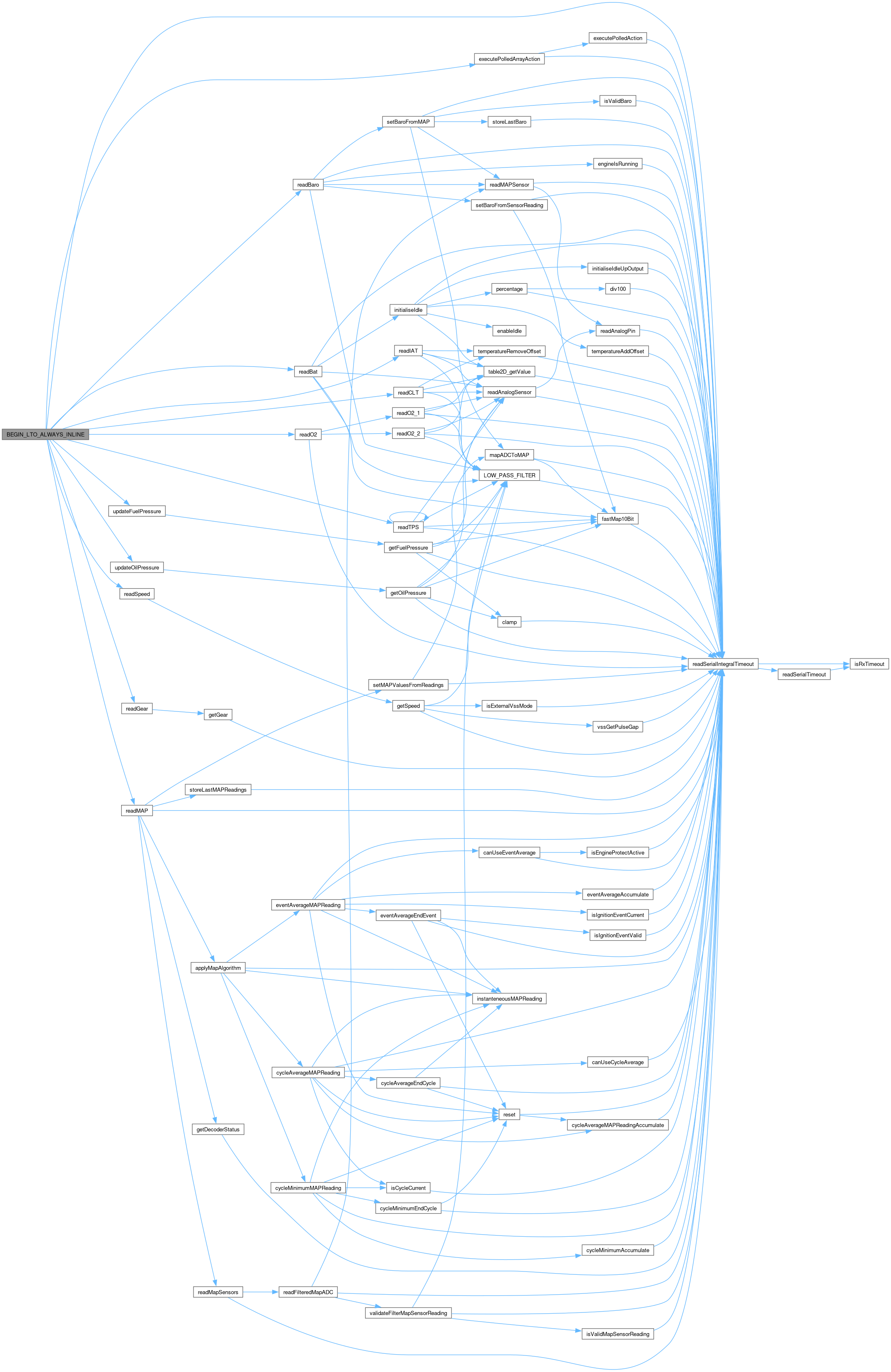

Here is the call graph for this function:

Here is the caller graph for this function:

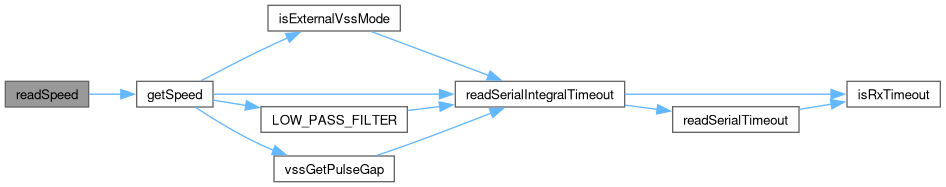

◆ readSpeed()

static void readSpeed ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readTPS() [1/2]

static void readTPS ( uint8_t tpsADC )

inlinestatic

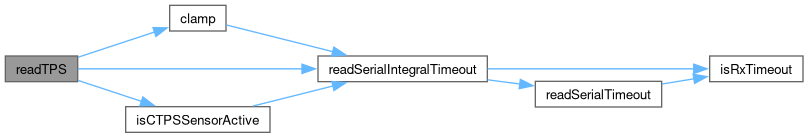

Here is the call graph for this function:

◆ readTPS() [2/2]

static void readTPS ( void )

inlinestatic

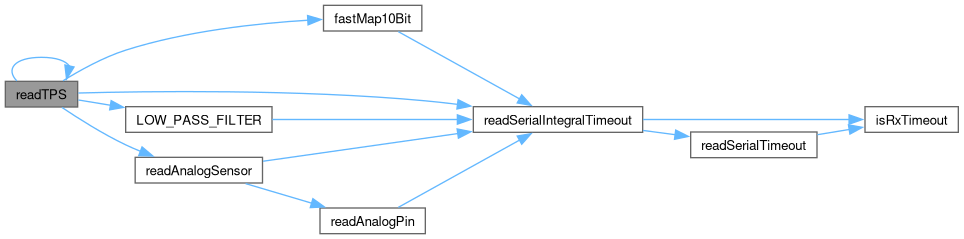

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [1/3]

static void reset	(	const statuses &	current,
		map_cycle_average_t &	cycle_average,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/3]

static void reset	(	const statuses &	current,
		map_cycle_min_t &	cycle_min,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

◆ reset() [3/3]

static void reset	(	map_event_average_t &	eventAverage,
		const map_adc_readings_t &	sensorReadings
	)

inlinestatic

Here is the call graph for this function:

◆ resetMAPcycleAndEvent()

void resetMAPcycleAndEvent ( void )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBaroFromMAP()

static void setBaroFromMAP ( void )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBaroFromSensorReading()

static void setBaroFromSensorReading ( uint16_t sensorReading )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMAPValuesFromReadings()

static void setMAPValuesFromReadings	(	const map_adc_readings_t &	readings,
		const config2 &	page2,
		bool	useEMAP,
		statuses &	current
	)

inlinestatic

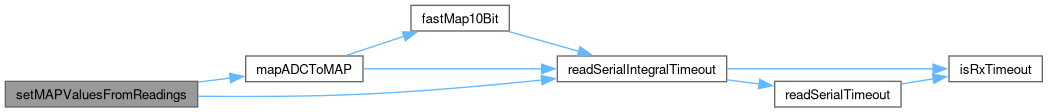

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storeLastMAPReadings()

static void storeLastMAPReadings	(	map_last_read_t &	lastRead,
		uint16_t	oldMAPValue
	)

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

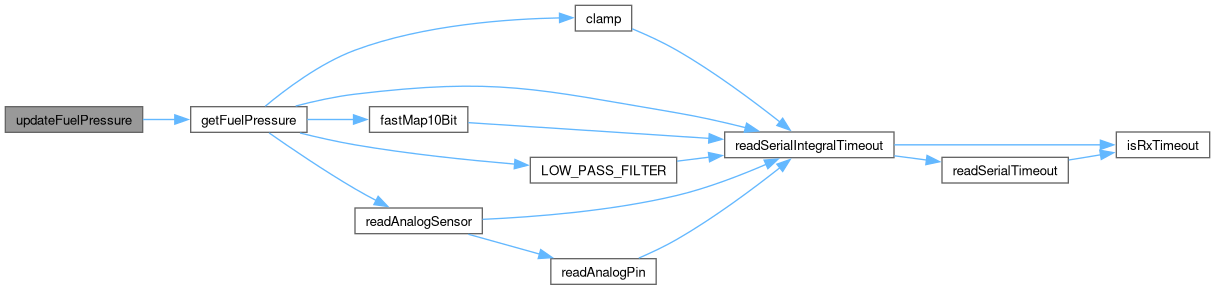

◆ updateFuelPressure()

static void updateFuelPressure ( void )

static

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateOilPressure()

static void updateOilPressure ( void )

static

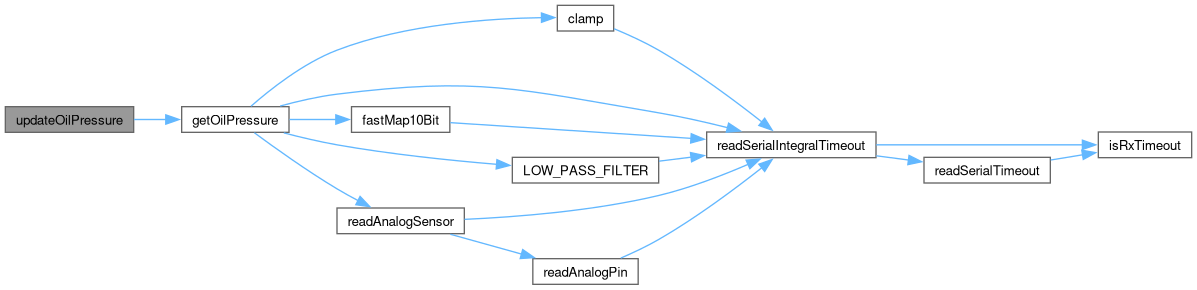

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validateFilterMapSensorReading()

TESTABLE_INLINE_STATIC uint16_t validateFilterMapSensorReading	(	uint16_t	reading,
		uint8_t	alpha,
		uint16_t	prior
	)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vssGetPulseGap()

uint32_t vssGetPulseGap ( uint8_t historyIndex )

Returns the VSS pulse gap for a given history point.

Parameters

historyIndex The gap number that is wanted. EG: historyIndex = 0 = Latest entry historyIndex = 1 = 2nd entry entry

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vssPulse()

void vssPulse ( void )

The ISR function for VSS pulses.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ cltCalibration_bins

table2D_u16_u16_32 cltCalibrationTable & cltCalibration_bins

static

◆ cltCalibration_values

uint16_t cltCalibration_values[32]

static

◆ flexCounter

volatile uint8_t flexCounter = 0U

◆ flexPulseWidth

volatile uint32_t flexPulseWidth = 0U

◆ flexStartTime

volatile uint32_t flexStartTime = 0UL

static

◆ iatCalibration_bins

table2D_u16_u16_32 iatCalibrationTable & iatCalibration_bins

static

◆ iatCalibration_values

uint16_t iatCalibration_values[32]

static

◆ mapAlgorithmState

map_algorithm_t mapAlgorithmState

static

◆ o2Calibration_bins

table2D_u16_u8_32 o2CalibrationTable & o2Calibration_bins

static

◆ o2Calibration_values

uint8_t o2Calibration_values[32]

static

◆ statusSensors

uint8_t statusSensors = 0

◆ VALID_MAP_MAX

constexpr uint16_t VALID_MAP_MAX =1022U

staticconstexpr

◆ VALID_MAP_MIN

constexpr uint16_t VALID_MAP_MIN =2U

staticconstexpr

◆ vssIndex

volatile uint8_t vssIndex = 0U

static

◆ vssTimes

volatile uint32_t vssTimes[VSS_SAMPLES] = {0}

static

Functions

Variables

Detailed Description

Function Documentation

◆ canUseCycleAverage()

◆ canUseEventAverage()

◆ cycleAverageEndCycle()

◆ cycleAverageMAPReading()

◆ cycleAverageMAPReadingAccumulate()

◆ cycleMinimumAccumulate()

◆ cycleMinimumEndCycle()

◆ cycleMinimumMAPReading()

◆ enableAnalogIsr()

◆ eventAverageAccumulate()

◆ eventAverageEndEvent()

◆ eventAverageMAPReading()

◆ fastMap10Bit()

◆ flexPulse()

◆ getAnalogKnock()

◆ getFuelPressure()

◆ getGear()

◆ getMAPDelta()

◆ getMAPDeltaTime()

◆ getOilPressure()

◆ getSpeed()

◆ initialiseADC()

◆ initialiseCLT()

◆ initialiseMAPBaro()

◆ initialiseTPS()

◆ instanteneousMAPReading()

◆ isCTPSSensorActive()

◆ isCycleCurrent() [1/3]

◆ isCycleCurrent() [2/3]

◆ isCycleCurrent() [3/3]

◆ isIgnitionEventCurrent()

◆ isIgnitionEventValid()

◆ isValidBaro()

◆ isValidMapSensorReading()

◆ knockPulse()

◆ mapADCToMAP()

◆ readAnalogPin()

◆ readAnalogSensor()

◆ readAuxanalog()

◆ readAuxdigital()

◆ readBaro()

◆ readBat()

◆ readCLT()

◆ readFilteredMapADC()

◆ readGear()

◆ readIAT()

◆ readMAP()

◆ readMAPSensor()

◆ readMapSensors()

◆ readO2()

◆ readO2_1()

◆ readO2_2()

◆ readPolledSensors()

◆ readSpeed()

◆ readTPS() [1/2]

◆ readTPS() [2/2]

◆ reset() [1/3]

◆ reset() [2/3]

◆ reset() [3/3]

◆ resetMAPcycleAndEvent()

◆ setBaroFromMAP()

◆ setBaroFromSensorReading()

◆ setMAPValuesFromReadings()

◆ storeLastMAPReadings()

◆ updateFuelPressure()

◆ updateOilPressure()

◆ validateFilterMapSensorReading()

◆ vssGetPulseGap()

◆ vssPulse()

Variable Documentation

◆ cltCalibration_bins

◆ cltCalibration_values

◆ flexCounter

◆ flexPulseWidth

◆ flexStartTime

◆ iatCalibration_bins
