boostController.h File Reference

#include "../../../statuses.h"
#include "../../../config_pages.h"
#include "../../pins/pinNumbers_t.h"

Go to the source code of this file.

Functions
void	initialiseBoost (statuses &current, const config2 &page2, const config6 &page6, const config10 &page10, const pinNumbers_t &pins)
	Initialise the boost controller.
void	boostControl (statuses &current, const config2 &page2, const config4 &page4, const config6 &page6, const config9 &page9, const config10 &page10, const config15 &page15)
	Run the boost control algorithm. Should be called periodically from the main loop.
void	boostInterrupt (void)
	Boost timer ISR. The board needs to hook this into a timer.

Function Documentation

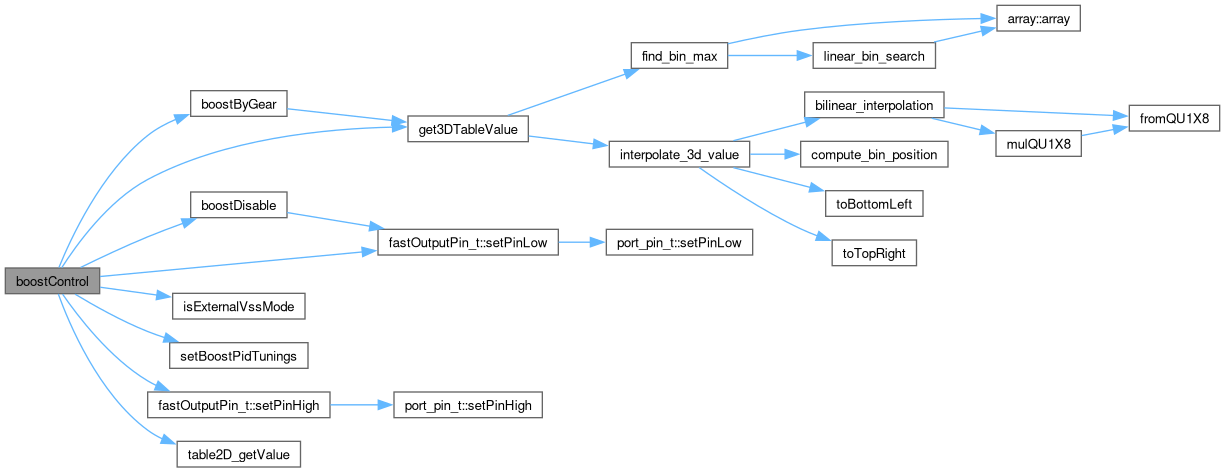

boostControl()

void boostControl	(	statuses &	current,
		const config2 &	page2,
		const config4 &	page4,
		const config6 &	page6,
		const config9 &	page9,
		const config10 &	page10,
		const config15 &	page15
	)

Run the boost control algorithm. Should be called periodically from the main loop.

Parameters

current	System state
page2	Tune
page4	Tune
page6	Tune
page9	Tune
page10	Tune
page15	Tune

boostInterrupt()

void boostInterrupt

(

void

)

Boost timer ISR. The board needs to hook this into a timer.

initialiseBoost()

void initialiseBoost	(	statuses &	current,
		const config2 &	page2,
		const config6 &	page6,
		const config10 &	page10,
		const pinNumbers_t &	pins
	)

Initialise the boost controller.

Parameters

current	System state
page2	Tune
page6	Tune
page10	Tune
pins	Board pin numbers
