IgnitionSchedule Struct Reference

An ignition schedule. More...

#include <scheduler.h>

Inheritance diagram for IgnitionSchedule:

Collaboration diagram for IgnitionSchedule:

Public Member Functions
void	reset (void) override
constexpr	Schedule (counter_t &counter, compare_t &compare)
	Construct a new Schedule object.
Public Member Functions inherited from Schedule
constexpr	Schedule (counter_t &counter, compare_t &compare)
	Construct a new Schedule object.

Public Attributes
volatile uint32_t	_startTime
	The system time (in uS) that the schedule started, used by the overdwell protection in timers.ino.
int16_t	chargeAngle
	Angle the coil should begin charging.
int16_t	dischargeAngle
	Angle the coil should discharge at. I.e. spark.
int16_t	channelDegrees
	The number of crank degrees until cylinder is at TDC
Public Attributes inherited from Schedule
volatile COMPARE_TYPE	duration = 0U
	Scheduled duration (timer ticks)
volatile ScheduleStatus	Status = OFF
	Schedule status: OFF, PENDING, STAGED, RUNNING.
callback	pStartCallback = &nullCallback
	Start Callback function for schedule.
callback	pEndCallback = &nullCallback
	End Callback function for schedule.
COMPARE_TYPE	nextStartCompare = 0U
	Planned start of next schedule (when current schedule is RUNNING)
counter_t &	_counter
	Reference to the counter register. E.g. TCNT3
compare_t &	_compare
	**Reference**to the compare register. E.g. OCR3A

Additional Inherited Members
Public Types inherited from Schedule
using	counter_t = decltype(FUEL1_COUNTER)
	The type of a timer counter register (this varies between platforms)
using	compare_t = decltype(FUEL1_COMPARE)
	The type of a timer compare register (this varies between platforms)
using	callback = void(*)(void)

Detailed Description

An ignition schedule.

Goal is to fire the spark as close to the requested angle as possible.

<--------------- Delay ---------------><---- Charge Coil ---->
                                                             ^
                                                           Spark

Terminology: dwell is the period when the ignition system applies an electric current to the ignition coil's primary winding in order to charge up the coil so it can generate a spark.

Note that dwell times use uint16_t & therefore maximum dwell is 65.535ms. This limit is imposed elsewhere in Speeduino also.

Member Function Documentation

reset()

void IgnitionSchedule::reset ( void  )

overridevirtual

Reimplemented from Schedule.

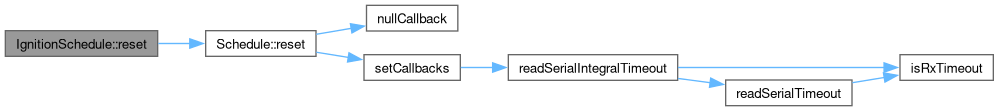

Here is the call graph for this function:

Here is the caller graph for this function:

Schedule()

constexpr Schedule::Schedule ( counter_t &  counter, compare_t &  compare  )

inlineconstexpr

Construct a new Schedule object.

Parameters

counter	A reference to the timer counter
compare	A reference to the timer comparator

Member Data Documentation

_startTime

volatile uint32_t IgnitionSchedule::_startTime

The system time (in uS) that the schedule started, used by the overdwell protection in timers.ino.

channelDegrees

int16_t IgnitionSchedule::channelDegrees

The number of crank degrees until cylinder is at TDC

chargeAngle

int16_t IgnitionSchedule::chargeAngle

Angle the coil should begin charging.

dischargeAngle

int16_t IgnitionSchedule::dischargeAngle

Angle the coil should discharge at. I.e. spark.

---

The documentation for this struct was generated from the following files:

• speeduino/scheduler.h
• speeduino/scheduler.cpp
