#include "globals.h"

Functions
bool	pinIsOutput (byte pin)

bool	pinIsUsed (byte pin)

Variables
const char	TSfirmwareVersion [] = "Speeduino"

const byte	data_structure_version = 2

struct table3d16RpmLoad	fuelTable
	16x16 fuel map More...

struct table3d16RpmLoad	fuelTable2
	16x16 fuel map More...

struct table3d16RpmLoad	ignitionTable
	16x16 ignition map More...

struct table3d16RpmLoad	ignitionTable2
	16x16 ignition map More...

struct table3d16RpmLoad	afrTable
	16x16 afr target map More...

struct table3d8RpmLoad	stagingTable
	8x8 fuel staging table More...

struct table3d8RpmLoad	boostTable
	8x8 boost map More...

struct table3d8RpmLoad	boostTableLookupDuty
	8x8 boost map lookup table More...

struct table3d8RpmLoad	vvtTable
	8x8 vvt map More...

struct table3d8RpmLoad	vvt2Table
	8x8 vvt2 map More...

struct table3d8RpmLoad	wmiTable
	8x8 wmi map More...

trimTable3d	trim1Table
	6x6 Fuel trim 1 map More...

trimTable3d	trim2Table
	6x6 Fuel trim 2 map More...

trimTable3d	trim3Table
	6x6 Fuel trim 3 map More...

trimTable3d	trim4Table
	6x6 Fuel trim 4 map More...

trimTable3d	trim5Table
	6x6 Fuel trim 5 map More...

trimTable3d	trim6Table
	6x6 Fuel trim 6 map More...

trimTable3d	trim7Table
	6x6 Fuel trim 7 map More...

trimTable3d	trim8Table
	6x6 Fuel trim 8 map More...

struct table3d4RpmLoad	dwellTable
	4x4 Dwell map More...

struct table2D	taeTable
	4 bin TPS Acceleration Enrichment map (2D) More...

struct table2D	maeTable

struct table2D	WUETable
	10 bin Warm Up Enrichment map (2D) More...

struct table2D	ASETable
	4 bin After Start Enrichment map (2D) More...

struct table2D	ASECountTable
	4 bin After Start duration map (2D) More...

struct table2D	PrimingPulseTable
	4 bin Priming pulsewidth map (2D) More...

struct table2D	crankingEnrichTable
	4 bin cranking Enrichment map (2D) More...

struct table2D	dwellVCorrectionTable
	6 bin dwell voltage correction (2D) More...

struct table2D	injectorVCorrectionTable
	6 bin injector voltage correction (2D) More...

struct table2D	injectorAngleTable
	4 bin injector angle curve (2D) More...

struct table2D	IATDensityCorrectionTable
	9 bin inlet air temperature density correction (2D) More...

struct table2D	baroFuelTable
	8 bin baro correction curve (2D) More...

struct table2D	IATRetardTable
	6 bin ignition adjustment based on inlet air temperature (2D) More...

struct table2D	idleTargetTable
	10 bin idle target table for idle timing (2D) More...

struct table2D	idleAdvanceTable
	6 bin idle advance adjustment table based on RPM difference (2D) More...

struct table2D	CLTAdvanceTable
	6 bin ignition adjustment based on coolant temperature (2D) More...

struct table2D	rotarySplitTable
	8 bin ignition split curve for rotary leading/trailing (2D) More...

struct table2D	flexFuelTable
	6 bin flex fuel correction table for fuel adjustments (2D) More...

struct table2D	flexAdvTable
	6 bin flex fuel correction table for timing advance (2D) More...

struct table2D	flexBoostTable
	6 bin flex fuel correction table for boost adjustments (2D) More...

struct table2D	fuelTempTable
	6 bin flex fuel correction table for fuel adjustments (2D) More...

struct table2D	knockWindowStartTable

struct table2D	knockWindowDurationTable

struct table2D	oilPressureProtectTable

struct table2D	wmiAdvTable

struct table2D	coolantProtectTable

struct table2D	fanPWMTable

struct table2D	rollingCutTable

volatile PORT_TYPE *	inj1_pin_port
	volatile inj_pin_port and inj_pin_mask vars are for the direct port manipulation of the injectors, coils and aux outputs. More...

volatile PINMASK_TYPE	inj1_pin_mask

volatile PORT_TYPE *	inj2_pin_port

volatile PINMASK_TYPE	inj2_pin_mask

volatile PORT_TYPE *	inj3_pin_port

volatile PINMASK_TYPE	inj3_pin_mask

volatile PORT_TYPE *	inj4_pin_port

volatile PINMASK_TYPE	inj4_pin_mask

volatile PORT_TYPE *	inj5_pin_port

volatile PINMASK_TYPE	inj5_pin_mask

volatile PORT_TYPE *	inj6_pin_port

volatile PINMASK_TYPE	inj6_pin_mask

volatile PORT_TYPE *	inj7_pin_port

volatile PINMASK_TYPE	inj7_pin_mask

volatile PORT_TYPE *	inj8_pin_port

volatile PINMASK_TYPE	inj8_pin_mask

volatile PORT_TYPE *	ign1_pin_port

volatile PINMASK_TYPE	ign1_pin_mask

volatile PORT_TYPE *	ign2_pin_port

volatile PINMASK_TYPE	ign2_pin_mask

volatile PORT_TYPE *	ign3_pin_port

volatile PINMASK_TYPE	ign3_pin_mask

volatile PORT_TYPE *	ign4_pin_port

volatile PINMASK_TYPE	ign4_pin_mask

volatile PORT_TYPE *	ign5_pin_port

volatile PINMASK_TYPE	ign5_pin_mask

volatile PORT_TYPE *	ign6_pin_port

volatile PINMASK_TYPE	ign6_pin_mask

volatile PORT_TYPE *	ign7_pin_port

volatile PINMASK_TYPE	ign7_pin_mask

volatile PORT_TYPE *	ign8_pin_port

volatile PINMASK_TYPE	ign8_pin_mask

volatile PORT_TYPE *	tach_pin_port

volatile PINMASK_TYPE	tach_pin_mask

volatile PORT_TYPE *	pump_pin_port

volatile PINMASK_TYPE	pump_pin_mask

volatile PORT_TYPE *	flex_pin_port

volatile PINMASK_TYPE	flex_pin_mask

volatile PORT_TYPE *	triggerPri_pin_port

volatile PINMASK_TYPE	triggerPri_pin_mask

volatile PORT_TYPE *	triggerSec_pin_port

volatile PINMASK_TYPE	triggerSec_pin_mask

volatile PORT_TYPE *	triggerThird_pin_port

volatile PINMASK_TYPE	triggerThird_pin_mask

bool	initialisationComplete = false
	Tracks whether the setup() function has run completely (true = has run) More...

byte	fpPrimeTime = 0
	The time (in seconds, based on statuses::secl) that the fuel pump started priming. More...

uint8_t	softLimitTime = 0

volatile uint16_t	mainLoopCount

unsigned long	revolutionTime

volatile unsigned long	timer5_overflow_count = 0

volatile unsigned long	ms_counter = 0

uint16_t	fixedCrankingOverride = 0

bool	clutchTrigger

bool	previousClutchTrigger

volatile uint32_t	toothHistory [TOOTH_LOG_SIZE]
	Tooth trigger history - delta time (in uS) from last tooth (Indexed by toothHistoryIndex) More...

volatile uint8_t	compositeLogHistory [TOOTH_LOG_SIZE]

volatile bool	fpPrimed = false
	Tracks whether or not the fuel pump priming has been completed yet. More...

volatile bool	injPrimed = false
	Tracks whether or not the injectors priming has been completed yet. More...

volatile unsigned int	toothHistoryIndex = 0
	Current index to toothHistory array. More...

unsigned long	currentLoopTime

volatile uint16_t	ignitionCount

byte	primaryTriggerEdge

byte	secondaryTriggerEdge

byte	tertiaryTriggerEdge

int	CRANK_ANGLE_MAX_IGN = 360

int	CRANK_ANGLE_MAX_INJ = 360
	The number of crank degrees that the system track over. 360 for wasted / timed batch and 720 for sequential. More...

volatile uint32_t	runSecsX10

volatile uint32_t	seclx10

volatile byte	HWTest_INJ = 0

volatile byte	HWTest_INJ_50pc = 0

volatile byte	HWTest_IGN = 0

volatile byte	HWTest_IGN_50pc = 0

byte	maxIgnOutputs = 1

byte	maxInjOutputs = 1

byte	resetControl = RESET_CONTROL_DISABLED
	resetControl needs to be here (as global) because using the config page (4) directly can prevent burning the setting More...

volatile byte	TIMER_mask

volatile byte	LOOP_TIMER

byte	pinInjector1
	Various pin numbering (Injectors, Ign outputs, CAS, Cam, Sensors. etc.) assignments. More...

byte	pinInjector2
	Output pin injector 2. More...

byte	pinInjector3
	Output pin injector 3. More...

byte	pinInjector4
	Output pin injector 4. More...

byte	pinInjector5
	Output pin injector 5. More...

byte	pinInjector6
	Output pin injector 6. More...

byte	pinInjector7
	Output pin injector 7. More...

byte	pinInjector8
	Output pin injector 8. More...

byte	injectorOutputControl = OUTPUT_CONTROL_DIRECT

byte	pinCoil1
	Pin for coil 1. More...

byte	pinCoil2
	Pin for coil 2. More...

byte	pinCoil3
	Pin for coil 3. More...

byte	pinCoil4
	Pin for coil 4. More...

byte	pinCoil5
	Pin for coil 5. More...

byte	pinCoil6
	Pin for coil 6. More...

byte	pinCoil7
	Pin for coil 7. More...

byte	pinCoil8
	Pin for coil 8. More...

byte	ignitionOutputControl = OUTPUT_CONTROL_DIRECT

byte	pinTrigger
	RPM1 (Typically CAS=crankshaft angle sensor) pin. More...

byte	pinTrigger2
	RPM2 (Typically the Cam Sensor) pin. More...

byte	pinTrigger3
	the 2nd cam sensor pin More...

byte	pinTPS

byte	pinMAP

byte	pinEMAP

byte	pinMAP2

byte	pinIAT

byte	pinCLT

byte	pinO2

byte	pinO2_2

byte	pinBat

byte	pinDisplayReset

byte	pinTachOut

byte	pinFuelPump

byte	pinIdle1

byte	pinIdle2

byte	pinIdleUp

byte	pinIdleUpOutput

byte	pinCTPS

byte	pinFuel2Input

byte	pinSpark2Input

byte	pinSpareTemp1

byte	pinSpareTemp2

byte	pinSpareOut1

byte	pinSpareOut2

byte	pinSpareOut3

byte	pinSpareOut4

byte	pinSpareOut5

byte	pinSpareOut6

byte	pinSpareHOut1

byte	pinSpareHOut2

byte	pinSpareLOut1

byte	pinSpareLOut2

byte	pinSpareLOut3

byte	pinSpareLOut4

byte	pinSpareLOut5

byte	pinBoost

byte	pinVVT_1
	vvt (variable valve timing) output 1 More...

byte	pinVVT_2
	vvt (variable valve timing) output 2 More...

byte	pinFan
	Cooling fan output (on/off? See: auxiliaries.ino) More...

byte	pinStepperDir

byte	pinStepperStep

byte	pinStepperEnable

byte	pinLaunch

byte	pinIgnBypass

byte	pinFlex

byte	pinVSS

byte	pinBaro

byte	pinResetControl

byte	pinFuelPressure

byte	pinOilPressure

byte	pinWMIEmpty

byte	pinWMIIndicator

byte	pinWMIEnabled

byte	pinMC33810_1_CS

byte	pinMC33810_2_CS

byte	pinSDEnable

byte	pinAirConComp

byte	pinAirConFan

byte	pinAirConRequest

struct statuses	currentStatus

struct config2	configPage2

struct config4	configPage4

struct config6	configPage6

struct config9	configPage9

struct config10	configPage10

struct config13	configPage13

struct config15	configPage15

uint16_t	cltCalibration_bins [32]

uint16_t	cltCalibration_values [32]

struct table2D	cltCalibrationTable

uint16_t	iatCalibration_bins [32]

uint16_t	iatCalibration_values [32]

struct table2D	iatCalibrationTable

uint16_t	o2Calibration_bins [32]

uint8_t	o2Calibration_values [32]

struct table2D	o2CalibrationTable

Detailed Description

Instantiation of various (table2D, table3D) tables, volatile (interrupt modified) variables, Injector (1...8) enablement flags, etc.

Function Documentation

◆ pinIsOutput()

bool pinIsOutput ( byte pin )

inline

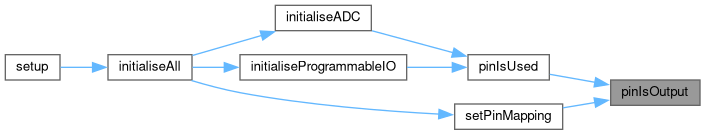

Here is the caller graph for this function:

◆ pinIsUsed()

bool pinIsUsed ( byte pin )

inline

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ afrTable

struct table3d16RpmLoad afrTable

16x16 afr target map

◆ ASECountTable

struct table2D ASECountTable

4 bin After Start duration map (2D)

◆ ASETable

struct table2D ASETable

4 bin After Start Enrichment map (2D)

◆ baroFuelTable

struct table2D baroFuelTable

8 bin baro correction curve (2D)

◆ boostTable

struct table3d8RpmLoad boostTable

8x8 boost map

◆ boostTableLookupDuty

struct table3d8RpmLoad boostTableLookupDuty

8x8 boost map lookup table

◆ CLTAdvanceTable

struct table2D CLTAdvanceTable

6 bin ignition adjustment based on coolant temperature (2D)

◆ cltCalibration_bins

uint16_t cltCalibration_bins[32]

◆ cltCalibration_values

uint16_t cltCalibration_values[32]

◆ cltCalibrationTable

struct table2D cltCalibrationTable

A 32 bin array containing the coolant temperature sensor calibration values

◆ clutchTrigger

bool clutchTrigger

◆ compositeLogHistory

volatile uint8_t compositeLogHistory[TOOTH_LOG_SIZE]

◆ configPage10

struct config10 configPage10

◆ configPage13

struct config13 configPage13

◆ configPage15

struct config15 configPage15

◆ configPage2

struct config2 configPage2

◆ configPage4

struct config4 configPage4

◆ configPage6

struct config6 configPage6

◆ configPage9

struct config9 configPage9

◆ coolantProtectTable

struct table2D coolantProtectTable

◆ CRANK_ANGLE_MAX_IGN

int CRANK_ANGLE_MAX_IGN = 360

◆ CRANK_ANGLE_MAX_INJ

int CRANK_ANGLE_MAX_INJ = 360

The number of crank degrees that the system track over. 360 for wasted / timed batch and 720 for sequential.

◆ crankingEnrichTable

struct table2D crankingEnrichTable

4 bin cranking Enrichment map (2D)

◆ currentLoopTime

unsigned long currentLoopTime

The time (in uS) that the current mainloop started

◆ currentStatus

struct statuses currentStatus

The master global "live" status struct. Contains all values that are updated frequently and used across modules

◆ data_structure_version

const byte data_structure_version = 2

◆ dwellTable

struct table3d4RpmLoad dwellTable

4x4 Dwell map

◆ dwellVCorrectionTable

struct table2D dwellVCorrectionTable

6 bin dwell voltage correction (2D)

◆ fanPWMTable

struct table2D fanPWMTable

◆ fixedCrankingOverride

uint16_t fixedCrankingOverride = 0

◆ flex_pin_mask

volatile PINMASK_TYPE flex_pin_mask

◆ flex_pin_port

volatile PORT_TYPE* flex_pin_port

◆ flexAdvTable

struct table2D flexAdvTable

6 bin flex fuel correction table for timing advance (2D)

◆ flexBoostTable

struct table2D flexBoostTable

6 bin flex fuel correction table for boost adjustments (2D)

◆ flexFuelTable

struct table2D flexFuelTable

6 bin flex fuel correction table for fuel adjustments (2D)

◆ fpPrimed

volatile bool fpPrimed = false

Tracks whether or not the fuel pump priming has been completed yet.

◆ fpPrimeTime

byte fpPrimeTime = 0

The time (in seconds, based on statuses::secl) that the fuel pump started priming.

◆ fuelTable

struct table3d16RpmLoad fuelTable

16x16 fuel map

◆ fuelTable2

struct table3d16RpmLoad fuelTable2

16x16 fuel map

◆ fuelTempTable

struct table2D fuelTempTable

6 bin flex fuel correction table for fuel adjustments (2D)

◆ HWTest_IGN

volatile byte HWTest_IGN = 0

Each bit in this variable represents one of the ignition channels and it's HW test status

◆ HWTest_IGN_50pc

volatile byte HWTest_IGN_50pc = 0

Each bit in this variable represents one of the ignition channels and it's 50% HW test status

◆ HWTest_INJ

volatile byte HWTest_INJ = 0

Each bit in this variable represents one of the injector channels and it's HW test status

◆ HWTest_INJ_50pc

volatile byte HWTest_INJ_50pc = 0

Each bit in this variable represents one of the injector channels and it's 50% HW test status

◆ iatCalibration_bins

uint16_t iatCalibration_bins[32]

◆ iatCalibration_values

uint16_t iatCalibration_values[32]

◆ iatCalibrationTable

struct table2D iatCalibrationTable

A 32 bin array containing the inlet air temperature sensor calibration values

◆ IATDensityCorrectionTable

struct table2D IATDensityCorrectionTable

9 bin inlet air temperature density correction (2D)

◆ IATRetardTable

struct table2D IATRetardTable

6 bin ignition adjustment based on inlet air temperature (2D)

◆ idleAdvanceTable

struct table2D idleAdvanceTable

6 bin idle advance adjustment table based on RPM difference (2D)

◆ idleTargetTable

struct table2D idleTargetTable

10 bin idle target table for idle timing (2D)

◆ ign1_pin_mask

volatile PINMASK_TYPE ign1_pin_mask

◆ ign1_pin_port

volatile PORT_TYPE* ign1_pin_port

◆ ign2_pin_mask

volatile PINMASK_TYPE ign2_pin_mask

◆ ign2_pin_port

volatile PORT_TYPE* ign2_pin_port

◆ ign3_pin_mask

volatile PINMASK_TYPE ign3_pin_mask

◆ ign3_pin_port

volatile PORT_TYPE* ign3_pin_port

◆ ign4_pin_mask

volatile PINMASK_TYPE ign4_pin_mask

◆ ign4_pin_port

volatile PORT_TYPE* ign4_pin_port

◆ ign5_pin_mask

volatile PINMASK_TYPE ign5_pin_mask

◆ ign5_pin_port

volatile PORT_TYPE* ign5_pin_port

◆ ign6_pin_mask

volatile PINMASK_TYPE ign6_pin_mask

◆ ign6_pin_port

volatile PORT_TYPE* ign6_pin_port

◆ ign7_pin_mask

volatile PINMASK_TYPE ign7_pin_mask

◆ ign7_pin_port

volatile PORT_TYPE* ign7_pin_port

◆ ign8_pin_mask

volatile PINMASK_TYPE ign8_pin_mask

◆ ign8_pin_port

volatile PORT_TYPE* ign8_pin_port

◆ ignitionCount

volatile uint16_t ignitionCount

The count of ignition events that have taken place since the engine started

◆ ignitionOutputControl

byte ignitionOutputControl = OUTPUT_CONTROL_DIRECT

Specifies whether the coils are controlled directly (Via an IO pin) or using something like the MC33810. 0 = Direct (OUTPUT_CONTROL_DIRECT), 10 = MC33810 (OUTPUT_CONTROL_MC33810)

◆ ignitionTable

struct table3d16RpmLoad ignitionTable

16x16 ignition map

◆ ignitionTable2

struct table3d16RpmLoad ignitionTable2

16x16 ignition map

◆ initialisationComplete

bool initialisationComplete = false

Tracks whether the setup() function has run completely (true = has run)

◆ inj1_pin_mask

volatile PINMASK_TYPE inj1_pin_mask

◆ inj1_pin_port

volatile PORT_TYPE* inj1_pin_port

volatile inj*_pin_port and inj*_pin_mask vars are for the direct port manipulation of the injectors, coils and aux outputs.

◆ inj2_pin_mask

volatile PINMASK_TYPE inj2_pin_mask

◆ inj2_pin_port

volatile PORT_TYPE* inj2_pin_port

◆ inj3_pin_mask

volatile PINMASK_TYPE inj3_pin_mask

◆ inj3_pin_port

volatile PORT_TYPE* inj3_pin_port

◆ inj4_pin_mask

volatile PINMASK_TYPE inj4_pin_mask

◆ inj4_pin_port

volatile PORT_TYPE* inj4_pin_port

◆ inj5_pin_mask

volatile PINMASK_TYPE inj5_pin_mask

◆ inj5_pin_port

volatile PORT_TYPE* inj5_pin_port

◆ inj6_pin_mask

volatile PINMASK_TYPE inj6_pin_mask

◆ inj6_pin_port

volatile PORT_TYPE* inj6_pin_port

◆ inj7_pin_mask

volatile PINMASK_TYPE inj7_pin_mask

◆ inj7_pin_port

volatile PORT_TYPE* inj7_pin_port

◆ inj8_pin_mask

volatile PINMASK_TYPE inj8_pin_mask

◆ inj8_pin_port

volatile PORT_TYPE* inj8_pin_port

◆ injectorAngleTable

struct table2D injectorAngleTable

4 bin injector angle curve (2D)

◆ injectorOutputControl

byte injectorOutputControl = OUTPUT_CONTROL_DIRECT

Specifies whether the injectors are controlled directly (Via an IO pin) or using something like the MC33810. 0 = Direct (OUTPUT_CONTROL_DIRECT), 10 = MC33810 (OUTPUT_CONTROL_MC33810)

◆ injectorVCorrectionTable

struct table2D injectorVCorrectionTable

6 bin injector voltage correction (2D)

◆ injPrimed

volatile bool injPrimed = false

Tracks whether or not the injectors priming has been completed yet.

◆ knockWindowDurationTable

struct table2D knockWindowDurationTable

◆ knockWindowStartTable

struct table2D knockWindowStartTable

◆ LOOP_TIMER

volatile byte LOOP_TIMER

◆ maeTable

struct table2D maeTable

◆ mainLoopCount

volatile uint16_t mainLoopCount

◆ maxIgnOutputs

byte maxIgnOutputs = 1

Number of ignition outputs being used by the current tune configuration

◆ maxInjOutputs

byte maxInjOutputs = 1

Number of injection outputs being used by the current tune configuration

◆ ms_counter

volatile unsigned long ms_counter = 0

◆ o2Calibration_bins

uint16_t o2Calibration_bins[32]

◆ o2Calibration_values

uint8_t o2Calibration_values[32]

◆ o2CalibrationTable

struct table2D o2CalibrationTable

A 32 bin array containing the O2 sensor calibration values

◆ oilPressureProtectTable

struct table2D oilPressureProtectTable

◆ pinAirConComp

byte pinAirConComp

◆ pinAirConFan

byte pinAirConFan

◆ pinAirConRequest

byte pinAirConRequest

◆ pinBaro

byte pinBaro

◆ pinBat

byte pinBat

◆ pinBoost

byte pinBoost

◆ pinCLT

byte pinCLT

◆ pinCoil1

byte pinCoil1

Pin for coil 1.

◆ pinCoil2

byte pinCoil2

Pin for coil 2.

◆ pinCoil3

byte pinCoil3

Pin for coil 3.

◆ pinCoil4

byte pinCoil4

Pin for coil 4.

◆ pinCoil5

byte pinCoil5

Pin for coil 5.

◆ pinCoil6

byte pinCoil6

Pin for coil 6.

◆ pinCoil7

byte pinCoil7

Pin for coil 7.

◆ pinCoil8

byte pinCoil8

Pin for coil 8.

◆ pinCTPS

byte pinCTPS

◆ pinDisplayReset

byte pinDisplayReset

◆ pinEMAP

byte pinEMAP

◆ pinFan

byte pinFan

Cooling fan output (on/off? See: auxiliaries.ino)

◆ pinFlex

byte pinFlex

◆ pinFuel2Input

byte pinFuel2Input

◆ pinFuelPressure

byte pinFuelPressure

◆ pinFuelPump

byte pinFuelPump

◆ pinIAT

byte pinIAT

◆ pinIdle1

byte pinIdle1

◆ pinIdle2

byte pinIdle2

◆ pinIdleUp

byte pinIdleUp

◆ pinIdleUpOutput

byte pinIdleUpOutput

◆ pinIgnBypass

byte pinIgnBypass

◆ pinInjector1

byte pinInjector1

Various pin numbering (Injectors, Ign outputs, CAS, Cam, Sensors. etc.) assignments.

Output pin injector 1

◆ pinInjector2

byte pinInjector2

Output pin injector 2.

◆ pinInjector3

byte pinInjector3

Output pin injector 3.

◆ pinInjector4

byte pinInjector4

Output pin injector 4.

◆ pinInjector5

byte pinInjector5

Output pin injector 5.

◆ pinInjector6

byte pinInjector6

Output pin injector 6.

◆ pinInjector7

byte pinInjector7

Output pin injector 7.

◆ pinInjector8

byte pinInjector8

Output pin injector 8.

◆ pinLaunch

byte pinLaunch

◆ pinMAP

byte pinMAP

◆ pinMAP2

byte pinMAP2

◆ pinMC33810_1_CS

byte pinMC33810_1_CS

◆ pinMC33810_2_CS

byte pinMC33810_2_CS

◆ pinO2

byte pinO2

◆ pinO2_2

byte pinO2_2

◆ pinOilPressure

byte pinOilPressure

◆ pinResetControl

byte pinResetControl

◆ pinSDEnable

byte pinSDEnable

◆ pinSpareHOut1

byte pinSpareHOut1

◆ pinSpareHOut2

byte pinSpareHOut2

◆ pinSpareLOut1

byte pinSpareLOut1

◆ pinSpareLOut2

byte pinSpareLOut2

◆ pinSpareLOut3

byte pinSpareLOut3

◆ pinSpareLOut4

byte pinSpareLOut4

◆ pinSpareLOut5

byte pinSpareLOut5

◆ pinSpareOut1

byte pinSpareOut1

◆ pinSpareOut2

byte pinSpareOut2

◆ pinSpareOut3

byte pinSpareOut3

◆ pinSpareOut4

byte pinSpareOut4

◆ pinSpareOut5

byte pinSpareOut5

◆ pinSpareOut6

byte pinSpareOut6

◆ pinSpareTemp1

byte pinSpareTemp1

◆ pinSpareTemp2

byte pinSpareTemp2

◆ pinSpark2Input

byte pinSpark2Input

◆ pinStepperDir

byte pinStepperDir

◆ pinStepperEnable

byte pinStepperEnable

◆ pinStepperStep

byte pinStepperStep

◆ pinTachOut

byte pinTachOut

◆ pinTPS

byte pinTPS

◆ pinTrigger

byte pinTrigger

RPM1 (Typically CAS=crankshaft angle sensor) pin.

◆ pinTrigger2

byte pinTrigger2

RPM2 (Typically the Cam Sensor) pin.

◆ pinTrigger3

byte pinTrigger3

the 2nd cam sensor pin

◆ pinVSS

byte pinVSS

◆ pinVVT_1

byte pinVVT_1

vvt (variable valve timing) output 1

◆ pinVVT_2

byte pinVVT_2

vvt (variable valve timing) output 2

◆ pinWMIEmpty

byte pinWMIEmpty

◆ pinWMIEnabled

byte pinWMIEnabled

◆ pinWMIIndicator

byte pinWMIIndicator

◆ previousClutchTrigger

bool previousClutchTrigger

◆ primaryTriggerEdge

byte primaryTriggerEdge

◆ PrimingPulseTable

struct table2D PrimingPulseTable

4 bin Priming pulsewidth map (2D)

◆ pump_pin_mask

volatile PINMASK_TYPE pump_pin_mask

◆ pump_pin_port

volatile PORT_TYPE* pump_pin_port

◆ resetControl

byte resetControl = RESET_CONTROL_DISABLED

resetControl needs to be here (as global) because using the config page (4) directly can prevent burning the setting

◆ revolutionTime

unsigned long revolutionTime

◆ rollingCutTable

struct table2D rollingCutTable

◆ rotarySplitTable

struct table2D rotarySplitTable

8 bin ignition split curve for rotary leading/trailing (2D)

◆ runSecsX10

volatile uint32_t runSecsX10

Counter of seconds since cranking commenced (similar to runSecs) but in increments of 0.1 seconds

◆ seclx10

volatile uint32_t seclx10

Counter of seconds since powered commenced (similar to secl) but in increments of 0.1 seconds

◆ secondaryTriggerEdge

byte secondaryTriggerEdge

◆ softLimitTime

uint8_t softLimitTime = 0

◆ stagingTable

struct table3d8RpmLoad stagingTable

8x8 fuel staging table

◆ tach_pin_mask

volatile PINMASK_TYPE tach_pin_mask

◆ tach_pin_port

volatile PORT_TYPE* tach_pin_port

◆ taeTable

struct table2D taeTable

4 bin TPS Acceleration Enrichment map (2D)

◆ tertiaryTriggerEdge

byte tertiaryTriggerEdge

◆ timer5_overflow_count

volatile unsigned long timer5_overflow_count = 0

◆ TIMER_mask

volatile byte TIMER_mask

◆ toothHistory

volatile uint32_t toothHistory[TOOTH_LOG_SIZE]

Tooth trigger history - delta time (in uS) from last tooth (Indexed by toothHistoryIndex)

◆ toothHistoryIndex

volatile unsigned int toothHistoryIndex = 0

Current index to toothHistory array.

◆ triggerPri_pin_mask

volatile PINMASK_TYPE triggerPri_pin_mask

◆ triggerPri_pin_port

volatile PORT_TYPE* triggerPri_pin_port

◆ triggerSec_pin_mask

volatile PINMASK_TYPE triggerSec_pin_mask

◆ triggerSec_pin_port

volatile PORT_TYPE* triggerSec_pin_port

◆ triggerThird_pin_mask

volatile PINMASK_TYPE triggerThird_pin_mask

◆ triggerThird_pin_port

volatile PORT_TYPE* triggerThird_pin_port

◆ trim1Table

trimTable3d trim1Table

6x6 Fuel trim 1 map

◆ trim2Table

trimTable3d trim2Table

6x6 Fuel trim 2 map

◆ trim3Table

trimTable3d trim3Table

6x6 Fuel trim 3 map

◆ trim4Table

trimTable3d trim4Table

6x6 Fuel trim 4 map

◆ trim5Table

trimTable3d trim5Table

6x6 Fuel trim 5 map

◆ trim6Table

trimTable3d trim6Table

6x6 Fuel trim 6 map

◆ trim7Table

trimTable3d trim7Table

6x6 Fuel trim 7 map

◆ trim8Table

trimTable3d trim8Table

6x6 Fuel trim 8 map

◆ TSfirmwareVersion

const char TSfirmwareVersion[] = "Speeduino"

◆ vvt2Table

struct table3d8RpmLoad vvt2Table

8x8 vvt2 map

◆ vvtTable

struct table3d8RpmLoad vvtTable

8x8 vvt map

◆ wmiAdvTable

struct table2D wmiAdvTable

◆ wmiTable

struct table3d8RpmLoad wmiTable

8x8 wmi map

◆ WUETable

struct table2D WUETable

10 bin Warm Up Enrichment map (2D)

Functions

Variables
