programmableIOControl_details::channel_state_t Struct Reference

#include <programmableIOControl_details.h>

Public Member Functions
	channel_state_t ()
void	initialize (config13 &page13, uint8_t index)
bool	isPhysicalPin (void) const
bool	isPinValid (void) const
void	updateStatus (bool ruleActive) noexcept

Public Attributes
bool	isRuleActive: 1
bool	isOutputActive: 1
bool	isOutputInverted: 1
	Invert (on/off) value before writing to output pin (for all programmable I/O:s).
uint8_t	_index: 3
uint8_t	activationDelayCount = 0
uint8_t	outputDelayCount = 0
uint8_t	_pin = NOT_A_PIN

Constructor & Destructor Documentation

channel_state_t()

programmableIOControl_details::channel_state_t::channel_state_t ( )

inline

Member Function Documentation

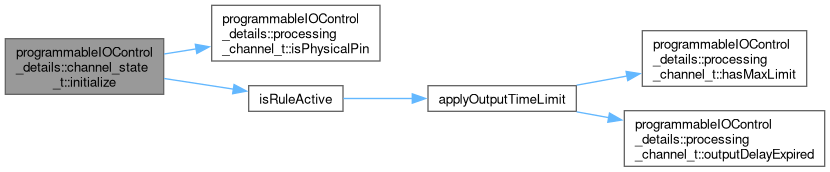

initialize()

void programmableIOControl_details::channel_state_t::initialize	(	config13 &	page13,
		uint8_t	index
	)

isPhysicalPin()

bool programmableIOControl_details::channel_state_t::isPhysicalPin ( void  ) const

inline

isPinValid()

bool programmableIOControl_details::channel_state_t::isPinValid ( void  ) const

inline

updateStatus()

void programmableIOControl_details::channel_state_t::updateStatus ( bool  ruleActive )

noexcept

Member Data Documentation

_index

uint8_t programmableIOControl_details::channel_state_t::_index

_pin

uint8_t programmableIOControl_details::channel_state_t::_pin = NOT_A_PIN

activationDelayCount

uint8_t programmableIOControl_details::channel_state_t::activationDelayCount = 0

isOutputActive

bool programmableIOControl_details::channel_state_t::isOutputActive

isOutputInverted

bool programmableIOControl_details::channel_state_t::isOutputInverted

Invert (on/off) value before writing to output pin (for all programmable I/O:s).

isRuleActive

bool programmableIOControl_details::channel_state_t::isRuleActive

outputDelayCount

uint8_t programmableIOControl_details::channel_state_t::outputDelayCount = 0

---

The documentation for this struct was generated from the following files:

• speeduino/src/controllers/progammableIO/programmableIOControl_details.h
• speeduino/src/controllers/progammableIO/programmableIOControl_details.cpp
