programmableIOControl_details Namespace Reference

Classes
struct	channel_state_t
struct	compOperation_t
struct	processing_channel_t
	A struct that captures enough information to process a channel. Instances of this class are ephemeral and created on the fly as needed. More...
struct	rule_t
struct	state_t

Typedefs
using	getDataFn = int16_t(*)(uint16_t index)

Enumerations
enum class	LimitingType : uint8_t { Min = 0 , Max = 1 }

Functions
static bool	isValidOutputPin (uint8_t pin)

Variables
constexpr uint8_t	COMPARATOR_EQUAL = 0
constexpr uint8_t	COMPARATOR_NOT_EQUAL = 1
constexpr uint8_t	COMPARATOR_GREATER = 2
constexpr uint8_t	COMPARATOR_GREATER_EQUAL = 3
constexpr uint8_t	COMPARATOR_LESS = 4
constexpr uint8_t	COMPARATOR_LESS_EQUAL = 5
constexpr uint8_t	COMPARATOR_AND = 6
constexpr uint8_t	COMPARATOR_XOR = 7
constexpr uint8_t	COMBINE_DISABLED = 0
constexpr uint8_t	COMBINE_AND = 1
constexpr uint8_t	COMBINE_OR = 2
constexpr uint8_t	COMBINE_XOR = 3
constexpr uint8_t	REUSE_RULES = 240

Typedef Documentation

getDataFn

using programmableIOControl_details::getDataFn = typedef int16_t (*)(uint16_t index)

Enumeration Type Documentation

LimitingType

enum class programmableIOControl_details::LimitingType : uint8_t

strong

Enumerator
Min
Max

Function Documentation

isValidOutputPin()

static bool programmableIOControl_details::isValidOutputPin ( uint8_t  pin )

inlinestatic

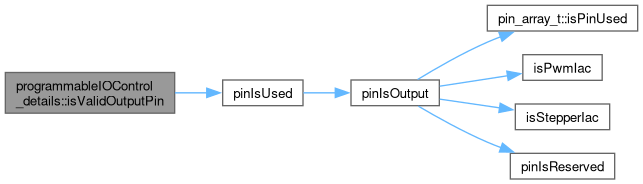

Here is the call graph for this function:

Variable Documentation

COMBINE_AND

constexpr uint8_t programmableIOControl_details::COMBINE_AND = 1

constexpr

COMBINE_DISABLED

constexpr uint8_t programmableIOControl_details::COMBINE_DISABLED = 0

constexpr

COMBINE_OR

constexpr uint8_t programmableIOControl_details::COMBINE_OR = 2

constexpr

COMBINE_XOR

constexpr uint8_t programmableIOControl_details::COMBINE_XOR = 3

constexpr

COMPARATOR_AND

constexpr uint8_t programmableIOControl_details::COMPARATOR_AND = 6

constexpr

COMPARATOR_EQUAL

constexpr uint8_t programmableIOControl_details::COMPARATOR_EQUAL = 0

constexpr

COMPARATOR_GREATER

constexpr uint8_t programmableIOControl_details::COMPARATOR_GREATER = 2

constexpr

COMPARATOR_GREATER_EQUAL

constexpr uint8_t programmableIOControl_details::COMPARATOR_GREATER_EQUAL = 3

constexpr

COMPARATOR_LESS

constexpr uint8_t programmableIOControl_details::COMPARATOR_LESS = 4

constexpr

COMPARATOR_LESS_EQUAL

constexpr uint8_t programmableIOControl_details::COMPARATOR_LESS_EQUAL = 5

constexpr

COMPARATOR_NOT_EQUAL

constexpr uint8_t programmableIOControl_details::COMPARATOR_NOT_EQUAL = 1

constexpr

COMPARATOR_XOR

constexpr uint8_t programmableIOControl_details::COMPARATOR_XOR = 7

constexpr

REUSE_RULES

constexpr uint8_t programmableIOControl_details::REUSE_RULES = 240

constexpr
