board_definition.h File Reference

Inclusion of board specific header files and board related definitions. More...

#include <stdint.h>
#include <Arduino.h>
#include "type_traits.h"

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SET_COMPARE(compare, value)   (compare) = (COMPARE_TYPE)(value)

Functions
void	initBoard (uint32_t baudRate)
	Initialise the board, including USB comms.
void	boardInitPins (void)
	Pin specific initialisation (optional - can be empty)
uint16_t	freeRam (void)
	Calculate free RAM for display in TunerStudio.
void	doSystemReset (void)
	Reset the board (optional)
void	jumpToBootloader (void)
	Trigger the boot loader (optional)
uint8_t	getSystemTemp (void)
	Get the board temp for display in TunerStudio (optional)
uint16_t	getEepromWriteBlockSize (const statuses &current)
	The maximum number of write operations that will be performed in one go.
EEPROM_t &	getEEPROM (void)
	Access the EEPROM singleton.

Variables
constexpr uint32_t	MAX_TIMER_PERIOD = ticksToMicros((numeric_limits<COMPARE_TYPE>::max)())
	The longest period of time (in uS) that the timer can permit.

Detailed Description

Inclusion of board specific header files and board related definitions.

Note

This file should be named "board.h", but one of the STM32 Arduino implementations has a <board.h> include. Which picks up this file instead of the intended file :-(

Macro Definition Documentation

SET_COMPARE

#define SET_COMPARE	(		compare,
			value
	)		(compare) = (COMPARE_TYPE)(value)

Function Documentation

boardInitPins()

void boardInitPins

(

void

)

Pin specific initialisation (optional - can be empty)

This is called after the pins are assigned and therefore after initBoard()

Here is the caller graph for this function:

doSystemReset()

void doSystemReset

(

void

)

Reset the board (optional)

Here is the caller graph for this function:

freeRam()

uint16_t freeRam

(

void

)

Calculate free RAM for display in TunerStudio.

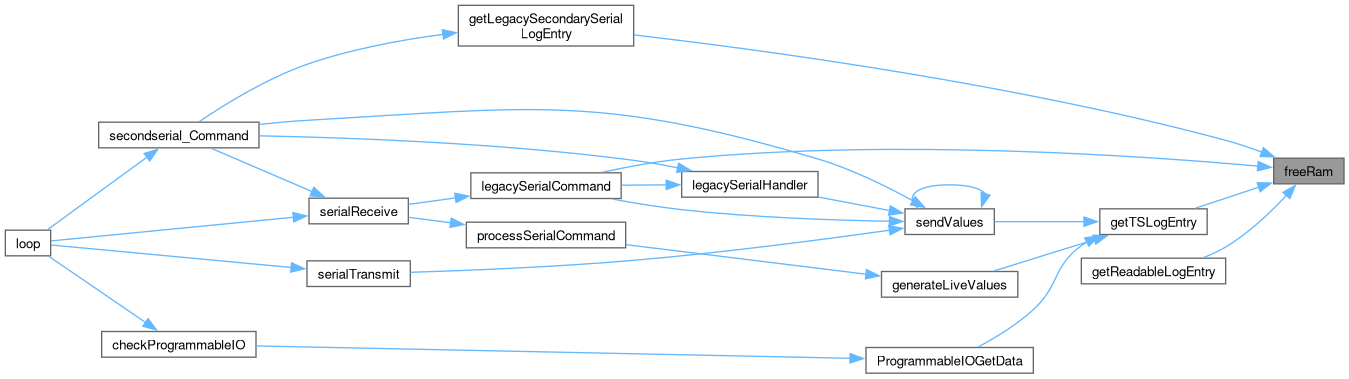

Here is the caller graph for this function:

getEEPROM()

EEPROM_t & getEEPROM

(

void

)

Access the EEPROM singleton.

Here is the caller graph for this function:

getEepromWriteBlockSize()

uint16_t getEepromWriteBlockSize

(

const statuses &

current

)

The maximum number of write operations that will be performed in one go.

If this number is too large, we will kill system responsiveness since EEPROM writes are slow. E.g. Each write takes ~3ms on the AVR

This is board specific, since EEPROM write speed is dependent on the EEPROM type and CPU speed.

Parameters

current

So the function can scale the number of writes based on system state

Returns

uint8_t The maximum number of writes.

Here is the caller graph for this function:

getSystemTemp()

uint8_t getSystemTemp

(

void

)

Get the board temp for display in TunerStudio (optional)

Here is the caller graph for this function:

initBoard()

void initBoard

(

uint32_t

baudRate

)

Initialise the board, including USB comms.

This is called after the tune is loaded from EEPROM, but before pins are assigned.

Parameters

baudRate

The Serial comms baud rate

Here is the caller graph for this function:

jumpToBootloader()

void jumpToBootloader

(

void

)

Trigger the boot loader (optional)

Here is the caller graph for this function:

Variable Documentation

MAX_TIMER_PERIOD

constexpr uint32_t MAX_TIMER_PERIOD = ticksToMicros((numeric_limits<COMPARE_TYPE>::max)())

constexpr

The longest period of time (in uS) that the timer can permit.
