fanController.cpp File Reference

#include "../../pins/boardOutputPin.h"
#include "../../../units.h"
#include "../../../unit_testing.h"
#include "../../../globals.h"
#include "src/pins/invertableOutputPin.h"
#include "src/pins/outputPin.h"
#include "src/pwm/PwmOutputChannel.h"
#include "src/pwm/interruptHandlers.h"

Typedefs
using	fanPwmChannel_t = PwmOutputChannel< invertableOutputPinAdaper_t< outputPin_t > >

Functions
static void	applyDutyToPwm (const statuses &current)
void	initialiseFan (statuses &current, config2 &page2, const config6 &page6, const pinNumbers_t &pins)
static bool	airConTurnsFanOn (const statuses &current, const config15 &page15)
static bool	isFanPermitted (const statuses &current, const config2 &page2)
static uint8_t	calculateDutyOnOffMode (const statuses &current, const config2 &page2, const config6 &page6, const config15 &page15)
static uint8_t	calculateDuty (const statuses &current, const config2 &page2, const config6 &page6, const config15 &page15)
TESTABLE_STATIC void	fanControlCore (statuses &current, const config2 &page2, const config6 &page6, const config15 &page15)
void	fanControl (statuses &current, const config2 &page2, const config6 &page6, const config15 &page15)
void	fanInterrupt (void)

Variables
TESTABLE_CONSTEXPR table2D_u8_u8_4 fanPWMTable &	configPage6
TESTABLE_STATIC fanPwmChannel_t	_fanPwm

Typedef Documentation

fanPwmChannel_t

using fanPwmChannel_t = PwmOutputChannel<invertableOutputPinAdaper_t<outputPin_t> >

Function Documentation

airConTurnsFanOn()

static bool airConTurnsFanOn ( const statuses &  current, const config15 &  page15  )

static

applyDutyToPwm()

static void applyDutyToPwm ( const statuses &  current )

static

calculateDuty()

static uint8_t calculateDuty ( const statuses &  current, const config2 &  page2, const config6 &  page6, const config15 &  page15  )

static

calculateDutyOnOffMode()

static uint8_t calculateDutyOnOffMode ( const statuses &  current, const config2 &  page2, const config6 &  page6, const config15 &  page15  )

static

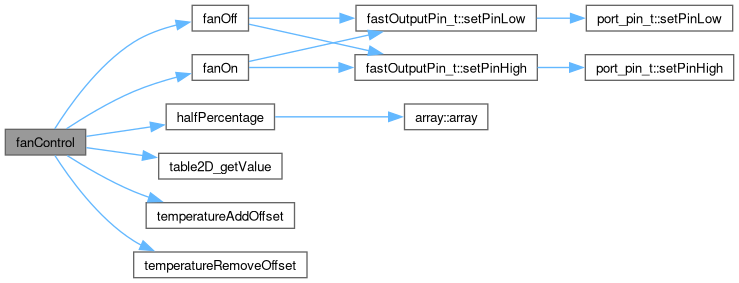

fanControl()

void fanControl	(	statuses &	current,
		const config2 &	page2,
		const config6 &	page6,
		const config15 &	page15
	)

fanControlCore()

TESTABLE_STATIC void fanControlCore	(	statuses &	current,
		const config2 &	page2,
		const config6 &	page6,
		const config15 &	page15
	)

fanInterrupt()

void fanInterrupt

(

void

)

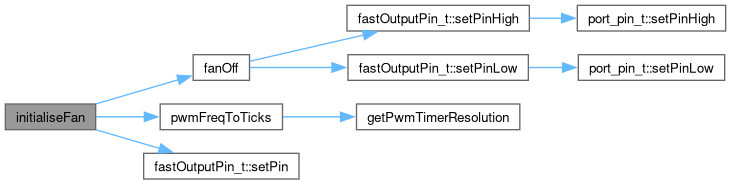

initialiseFan()

void initialiseFan	(	statuses &	current,
		config2 &	page2,
		const config6 &	page6,
		const pinNumbers_t &	pins
	)

isFanPermitted()

static bool isFanPermitted ( const statuses &  current, const config2 &  page2  )

static

Variable Documentation

_fanPwm

TESTABLE_STATIC fanPwmChannel_t _fanPwm

configPage6

TESTABLE_CONSTEXPR table2D_u8_u8_4 fanPWMTable& configPage6

constexpr
