tsCommandController.h File Reference
#include "../../../statuses.h"
#include "../../../config_pages.h"

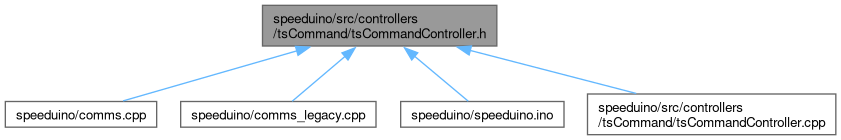

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

bool handleTsCommand (uint16_t command, statuses &current, config2 &page2)
 Process a command from TunerStudio.

void pulsedCommandController (const statuses &current, const config13 &page13)
 Start/stop pulsing injectors & coils based on configuration set by handleTsCommand.


Variables

static constexpr uint16_t TS_CMD_TEST_DSBL = 256

static constexpr uint16_t TS_CMD_TEST_ENBL = 257

static constexpr uint16_t TS_CMD_INJ1_ON = 513

static constexpr uint16_t TS_CMD_INJ1_OFF = 514

static constexpr uint16_t TS_CMD_INJ1_PULSED = 515

static constexpr uint16_t TS_CMD_INJ2_ON = 516

static constexpr uint16_t TS_CMD_INJ2_OFF = 517

static constexpr uint16_t TS_CMD_INJ2_PULSED = 518

static constexpr uint16_t TS_CMD_INJ3_ON = 519

static constexpr uint16_t TS_CMD_INJ3_OFF = 520

static constexpr uint16_t TS_CMD_INJ3_PULSED = 521

static constexpr uint16_t TS_CMD_INJ4_ON = 522

static constexpr uint16_t TS_CMD_INJ4_OFF = 523

static constexpr uint16_t TS_CMD_INJ4_PULSED = 524

static constexpr uint16_t TS_CMD_INJ5_ON = 525

static constexpr uint16_t TS_CMD_INJ5_OFF = 526

static constexpr uint16_t TS_CMD_INJ5_PULSED = 527

static constexpr uint16_t TS_CMD_INJ6_ON = 528

static constexpr uint16_t TS_CMD_INJ6_OFF = 529

static constexpr uint16_t TS_CMD_INJ6_PULSED = 530

static constexpr uint16_t TS_CMD_INJ7_ON = 531

static constexpr uint16_t TS_CMD_INJ7_OFF = 532

static constexpr uint16_t TS_CMD_INJ7_PULSED = 533

static constexpr uint16_t TS_CMD_INJ8_ON = 534

static constexpr uint16_t TS_CMD_INJ8_OFF = 535

static constexpr uint16_t TS_CMD_INJ8_PULSED = 536

static constexpr uint16_t TS_CMD_IGN1_ON = 769

static constexpr uint16_t TS_CMD_IGN1_OFF = 770

static constexpr uint16_t TS_CMD_IGN1_PULSED = 771

static constexpr uint16_t TS_CMD_IGN2_ON = 772

static constexpr uint16_t TS_CMD_IGN2_OFF = 773

static constexpr uint16_t TS_CMD_IGN2_PULSED = 774

static constexpr uint16_t TS_CMD_IGN3_ON = 775

static constexpr uint16_t TS_CMD_IGN3_OFF = 776

static constexpr uint16_t TS_CMD_IGN3_PULSED = 777

static constexpr uint16_t TS_CMD_IGN4_ON = 778

static constexpr uint16_t TS_CMD_IGN4_OFF = 779

static constexpr uint16_t TS_CMD_IGN4_PULSED = 780

static constexpr uint16_t TS_CMD_IGN5_ON = 781

static constexpr uint16_t TS_CMD_IGN5_OFF = 782

static constexpr uint16_t TS_CMD_IGN5_PULSED = 783

static constexpr uint16_t TS_CMD_IGN6_ON = 784

static constexpr uint16_t TS_CMD_IGN6_OFF = 785

static constexpr uint16_t TS_CMD_IGN6_PULSED = 786

static constexpr uint16_t TS_CMD_IGN7_ON = 787

static constexpr uint16_t TS_CMD_IGN7_OFF = 788

static constexpr uint16_t TS_CMD_IGN7_PULSED = 789

static constexpr uint16_t TS_CMD_IGN8_ON = 790

static constexpr uint16_t TS_CMD_IGN8_OFF = 791

static constexpr uint16_t TS_CMD_IGN8_PULSED = 792

static constexpr uint16_t TS_CMD_STM32_REBOOT = 12800

static constexpr uint16_t TS_CMD_STM32_BOOTLOADER = 12801

static constexpr uint16_t TS_CMD_SD_FORMAT = 13057

static constexpr uint16_t TS_CMD_VSS_60KMH = 39168U

static constexpr uint16_t TS_CMD_VSS_RATIO1 = 39169U

static constexpr uint16_t TS_CMD_VSS_RATIO2 = 39170U

static constexpr uint16_t TS_CMD_VSS_RATIO3 = 39171U

static constexpr uint16_t TS_CMD_VSS_RATIO4 = 39172U

static constexpr uint16_t TS_CMD_VSS_RATIO5 = 39173U

static constexpr uint16_t TS_CMD_VSS_RATIO6 = 39174U


Detailed Description

Header file for the TunerStudio command handler The command handler manages all the inputs FROM TS which are issued when a command button is clicked by the user

Function Documentation

◆ handleTsCommand()

bool handleTsCommand ( uint16_t  command,
statuses &  current,
config2 &  page2
)

Process a command from TunerStudio.

Parameters
commandOne of the above commands.
Returns
true if the command was processed, false otherwise
Parameters
commandThe command number of the button that was clicked. See TS_CommendButtonHandler.h for a list of button IDs

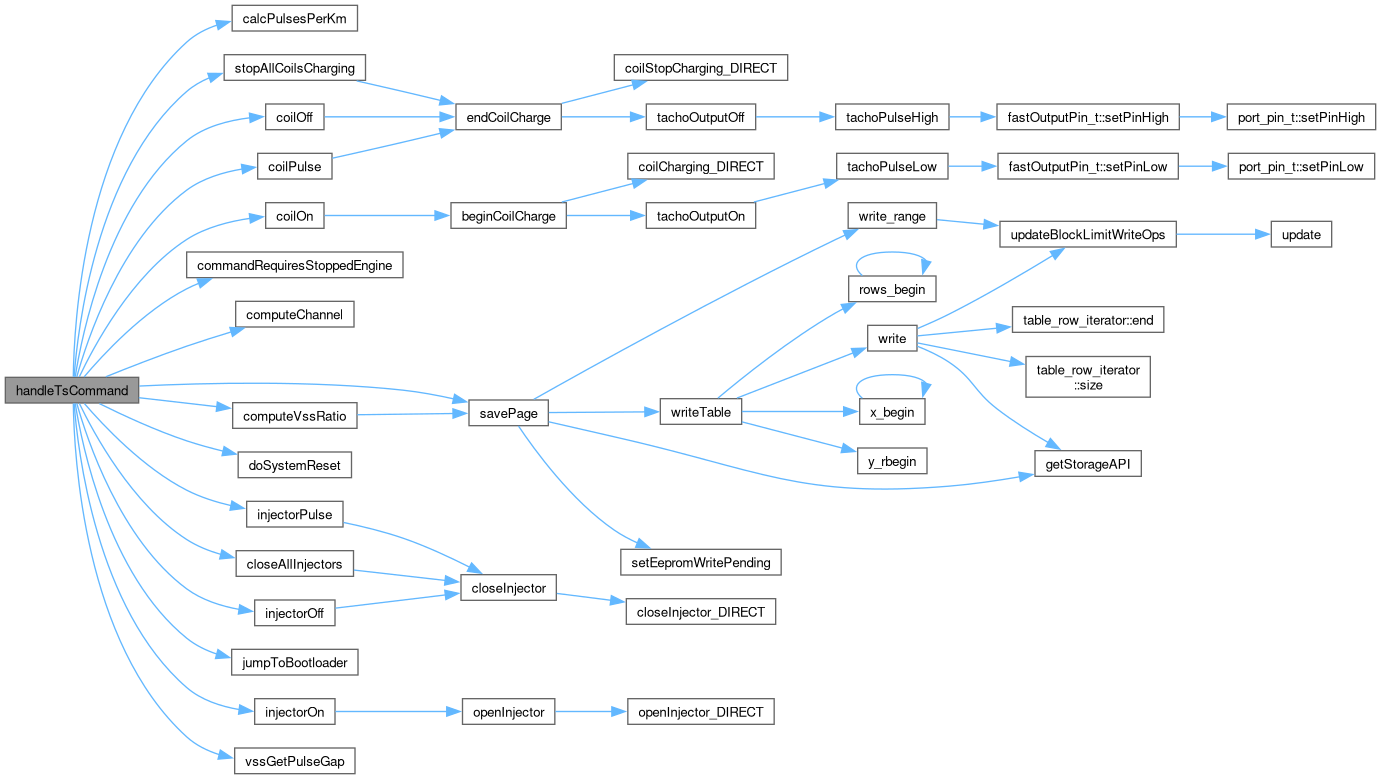

Here is the call graph for this function:
Here is the caller graph for this function:

◆ pulsedCommandController()

void pulsedCommandController ( const statuses &  current,
const config13 &  page13
)

Start/stop pulsing injectors & coils based on configuration set by handleTsCommand.

Must be called at least once a millisecond from the main loop

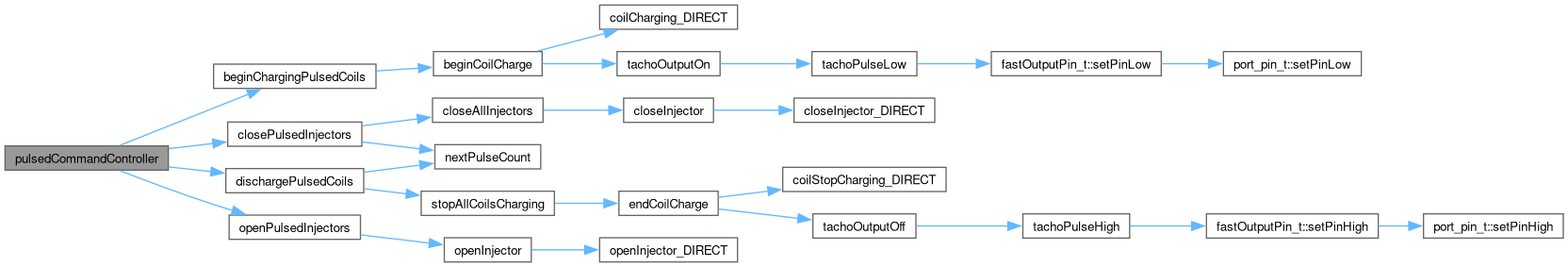

Here is the call graph for this function:
Here is the caller graph for this function:

Variable Documentation

◆ TS_CMD_IGN1_OFF

constexpr uint16_t TS_CMD_IGN1_OFF = 770
staticconstexpr

◆ TS_CMD_IGN1_ON

constexpr uint16_t TS_CMD_IGN1_ON = 769
staticconstexpr

◆ TS_CMD_IGN1_PULSED

constexpr uint16_t TS_CMD_IGN1_PULSED = 771
staticconstexpr

◆ TS_CMD_IGN2_OFF

constexpr uint16_t TS_CMD_IGN2_OFF = 773
staticconstexpr

◆ TS_CMD_IGN2_ON

constexpr uint16_t TS_CMD_IGN2_ON = 772
staticconstexpr

◆ TS_CMD_IGN2_PULSED

constexpr uint16_t TS_CMD_IGN2_PULSED = 774
staticconstexpr

◆ TS_CMD_IGN3_OFF

constexpr uint16_t TS_CMD_IGN3_OFF = 776
staticconstexpr

◆ TS_CMD_IGN3_ON

constexpr uint16_t TS_CMD_IGN3_ON = 775
staticconstexpr

◆ TS_CMD_IGN3_PULSED

constexpr uint16_t TS_CMD_IGN3_PULSED = 777
staticconstexpr

◆ TS_CMD_IGN4_OFF

constexpr uint16_t TS_CMD_IGN4_OFF = 779
staticconstexpr

◆ TS_CMD_IGN4_ON

constexpr uint16_t TS_CMD_IGN4_ON = 778
staticconstexpr

◆ TS_CMD_IGN4_PULSED

constexpr uint16_t TS_CMD_IGN4_PULSED = 780
staticconstexpr

◆ TS_CMD_IGN5_OFF

constexpr uint16_t TS_CMD_IGN5_OFF = 782
staticconstexpr

◆ TS_CMD_IGN5_ON

constexpr uint16_t TS_CMD_IGN5_ON = 781
staticconstexpr

◆ TS_CMD_IGN5_PULSED

constexpr uint16_t TS_CMD_IGN5_PULSED = 783
staticconstexpr

◆ TS_CMD_IGN6_OFF

constexpr uint16_t TS_CMD_IGN6_OFF = 785
staticconstexpr

◆ TS_CMD_IGN6_ON

constexpr uint16_t TS_CMD_IGN6_ON = 784
staticconstexpr

◆ TS_CMD_IGN6_PULSED

constexpr uint16_t TS_CMD_IGN6_PULSED = 786
staticconstexpr

◆ TS_CMD_IGN7_OFF

constexpr uint16_t TS_CMD_IGN7_OFF = 788
staticconstexpr

◆ TS_CMD_IGN7_ON

constexpr uint16_t TS_CMD_IGN7_ON = 787
staticconstexpr

◆ TS_CMD_IGN7_PULSED

constexpr uint16_t TS_CMD_IGN7_PULSED = 789
staticconstexpr

◆ TS_CMD_IGN8_OFF

constexpr uint16_t TS_CMD_IGN8_OFF = 791
staticconstexpr

◆ TS_CMD_IGN8_ON

constexpr uint16_t TS_CMD_IGN8_ON = 790
staticconstexpr

◆ TS_CMD_IGN8_PULSED

constexpr uint16_t TS_CMD_IGN8_PULSED = 792
staticconstexpr

◆ TS_CMD_INJ1_OFF

constexpr uint16_t TS_CMD_INJ1_OFF = 514
staticconstexpr

◆ TS_CMD_INJ1_ON

constexpr uint16_t TS_CMD_INJ1_ON = 513
staticconstexpr

◆ TS_CMD_INJ1_PULSED

constexpr uint16_t TS_CMD_INJ1_PULSED = 515
staticconstexpr

◆ TS_CMD_INJ2_OFF

constexpr uint16_t TS_CMD_INJ2_OFF = 517
staticconstexpr

◆ TS_CMD_INJ2_ON

constexpr uint16_t TS_CMD_INJ2_ON = 516
staticconstexpr

◆ TS_CMD_INJ2_PULSED

constexpr uint16_t TS_CMD_INJ2_PULSED = 518
staticconstexpr

◆ TS_CMD_INJ3_OFF

constexpr uint16_t TS_CMD_INJ3_OFF = 520
staticconstexpr

◆ TS_CMD_INJ3_ON

constexpr uint16_t TS_CMD_INJ3_ON = 519
staticconstexpr

◆ TS_CMD_INJ3_PULSED

constexpr uint16_t TS_CMD_INJ3_PULSED = 521
staticconstexpr

◆ TS_CMD_INJ4_OFF

constexpr uint16_t TS_CMD_INJ4_OFF = 523
staticconstexpr

◆ TS_CMD_INJ4_ON

constexpr uint16_t TS_CMD_INJ4_ON = 522
staticconstexpr

◆ TS_CMD_INJ4_PULSED

constexpr uint16_t TS_CMD_INJ4_PULSED = 524
staticconstexpr

◆ TS_CMD_INJ5_OFF

constexpr uint16_t TS_CMD_INJ5_OFF = 526
staticconstexpr

◆ TS_CMD_INJ5_ON

constexpr uint16_t TS_CMD_INJ5_ON = 525
staticconstexpr

◆ TS_CMD_INJ5_PULSED

constexpr uint16_t TS_CMD_INJ5_PULSED = 527
staticconstexpr

◆ TS_CMD_INJ6_OFF

constexpr uint16_t TS_CMD_INJ6_OFF = 529
staticconstexpr

◆ TS_CMD_INJ6_ON

constexpr uint16_t TS_CMD_INJ6_ON = 528
staticconstexpr

◆ TS_CMD_INJ6_PULSED

constexpr uint16_t TS_CMD_INJ6_PULSED = 530
staticconstexpr

◆ TS_CMD_INJ7_OFF

constexpr uint16_t TS_CMD_INJ7_OFF = 532
staticconstexpr

◆ TS_CMD_INJ7_ON

constexpr uint16_t TS_CMD_INJ7_ON = 531
staticconstexpr

◆ TS_CMD_INJ7_PULSED

constexpr uint16_t TS_CMD_INJ7_PULSED = 533
staticconstexpr

◆ TS_CMD_INJ8_OFF

constexpr uint16_t TS_CMD_INJ8_OFF = 535
staticconstexpr

◆ TS_CMD_INJ8_ON

constexpr uint16_t TS_CMD_INJ8_ON = 534
staticconstexpr

◆ TS_CMD_INJ8_PULSED

constexpr uint16_t TS_CMD_INJ8_PULSED = 536
staticconstexpr

◆ TS_CMD_SD_FORMAT

constexpr uint16_t TS_CMD_SD_FORMAT = 13057
staticconstexpr

◆ TS_CMD_STM32_BOOTLOADER

constexpr uint16_t TS_CMD_STM32_BOOTLOADER = 12801
staticconstexpr

◆ TS_CMD_STM32_REBOOT

constexpr uint16_t TS_CMD_STM32_REBOOT = 12800
staticconstexpr

◆ TS_CMD_TEST_DSBL

constexpr uint16_t TS_CMD_TEST_DSBL = 256
staticconstexpr

◆ TS_CMD_TEST_ENBL

constexpr uint16_t TS_CMD_TEST_ENBL = 257
staticconstexpr

◆ TS_CMD_VSS_60KMH

constexpr uint16_t TS_CMD_VSS_60KMH = 39168U
staticconstexpr

◆ TS_CMD_VSS_RATIO1

constexpr uint16_t TS_CMD_VSS_RATIO1 = 39169U
staticconstexpr

◆ TS_CMD_VSS_RATIO2

constexpr uint16_t TS_CMD_VSS_RATIO2 = 39170U
staticconstexpr

◆ TS_CMD_VSS_RATIO3

constexpr uint16_t TS_CMD_VSS_RATIO3 = 39171U
staticconstexpr

◆ TS_CMD_VSS_RATIO4

constexpr uint16_t TS_CMD_VSS_RATIO4 = 39172U
staticconstexpr

◆ TS_CMD_VSS_RATIO5

constexpr uint16_t TS_CMD_VSS_RATIO5 = 39173U
staticconstexpr

◆ TS_CMD_VSS_RATIO6

constexpr uint16_t TS_CMD_VSS_RATIO6 = 39174U
staticconstexpr
