programmableIOControl_details::processing_channel_t Struct Reference

A struct that captures enough information to process a channel. Instances of this class are ephemeral and created on the fly as needed. More...

#include <programmableIOControl_details.h>

Collaboration diagram for programmableIOControl_details::processing_channel_t:

Public Member Functions
	processing_channel_t (const config13 &page13, channel_state_t &channel_state)
bool	isPhysicalPin (void) const
bool	hasMaxLimit (void) const
bool	outputDelayExpired (void) const
bool	activationDelayExpired (void) const
void	incrementOutputDelay (void)
void	incrementActivationDelay (void)

Public Attributes
channel_state_t &	_channel_state
uint8_t	outputPin = 0
	Disable(0) or enable (set to valid pin number) Programmable Pin (output/target pin to set)
bool	isPinValid: 1
bool	isOutputInverted: 1
	Invert (on/off) value before writing to output pin (for all programmable I/O:s).
LimitingType	limitType
	Select which kind of output limiting are active (0 - minimum | 1 - maximum)
uint8_t	outputTimeLimit = 0
	Output delay for each programmable I/O, kindOfLimiting bit dependent(Unit: 0.1S)
uint8_t	activationDelay = 0
	Output write delay for each programmable I/O (Unit: 0.1S)

Detailed Description

A struct that captures enough information to process a channel. Instances of this class are ephemeral and created on the fly as needed.

This only exists to lower memory pressure: without that constraint, this would be merged with stateful_channel_t (or access the config13 arrays directly).

Constructor & Destructor Documentation

processing_channel_t()

programmableIOControl_details::processing_channel_t::processing_channel_t	(	const config13 &	page13,
		channel_state_t &	channel_state
	)

Member Function Documentation

activationDelayExpired()

bool programmableIOControl_details::processing_channel_t::activationDelayExpired ( void  ) const

inline

Here is the caller graph for this function:

hasMaxLimit()

bool programmableIOControl_details::processing_channel_t::hasMaxLimit ( void  ) const

inline

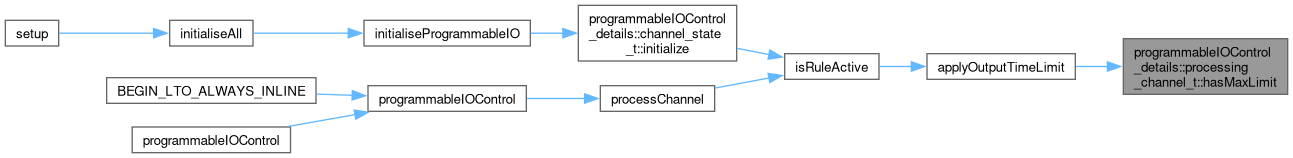

Here is the caller graph for this function:

incrementActivationDelay()

void programmableIOControl_details::processing_channel_t::incrementActivationDelay ( void  )

inline

Here is the caller graph for this function:

incrementOutputDelay()

void programmableIOControl_details::processing_channel_t::incrementOutputDelay

(

void

)

Here is the caller graph for this function:

isPhysicalPin()

bool programmableIOControl_details::processing_channel_t::isPhysicalPin ( void  ) const

inline

Here is the caller graph for this function:

outputDelayExpired()

bool programmableIOControl_details::processing_channel_t::outputDelayExpired ( void  ) const

inline

Here is the caller graph for this function:

Member Data Documentation

_channel_state

channel_state_t& programmableIOControl_details::processing_channel_t::_channel_state

activationDelay

uint8_t programmableIOControl_details::processing_channel_t::activationDelay = 0

Output write delay for each programmable I/O (Unit: 0.1S)

isOutputInverted

bool programmableIOControl_details::processing_channel_t::isOutputInverted

Invert (on/off) value before writing to output pin (for all programmable I/O:s).

isPinValid

bool programmableIOControl_details::processing_channel_t::isPinValid

limitType

LimitingType programmableIOControl_details::processing_channel_t::limitType

Select which kind of output limiting are active (0 - minimum | 1 - maximum)

outputPin

uint8_t programmableIOControl_details::processing_channel_t::outputPin = 0

Disable(0) or enable (set to valid pin number) Programmable Pin (output/target pin to set)

outputTimeLimit

uint8_t programmableIOControl_details::processing_channel_t::outputTimeLimit = 0

Output delay for each programmable I/O, kindOfLimiting bit dependent(Unit: 0.1S)

---

The documentation for this struct was generated from the following files:

• speeduino/src/controllers/progammableIO/programmableIOControl_details.h
• speeduino/src/controllers/progammableIO/programmableIOControl_details.cpp
