corrections.ino File Reference

#include "globals.h"
#include "corrections.h"
#include "speeduino.h"
#include "timers.h"
#include "maths.h"
#include "sensors.h"
#include "src/PID_v1/PID_v1.h"

Functions
void	initialiseCorrections (void)
uint16_t	correctionsFuel (void)
static byte	correctionsFuel_new (void)
byte	correctionWUE (void)
uint16_t	correctionCranking (void)
byte	correctionASE (void)
uint16_t	correctionAccel (void)
byte	correctionFloodClear (void)
byte	correctionBatVoltage (void)
byte	correctionIATDensity (void)
byte	correctionBaro (void)
byte	correctionLaunch (void)
bool	correctionDFCO (void)
byte	correctionFlex (void)
byte	correctionFuelTemp (void)
byte	correctionAFRClosedLoop (void)
int8_t	correctionsIgn (int8_t base_advance)
int8_t	correctionFixedTiming (int8_t advance)
int8_t	correctionCrankingFixedTiming (int8_t advance)
int8_t	correctionFlexTiming (int8_t advance)
int8_t	correctionWMITiming (int8_t advance)
int8_t	correctionIATretard (int8_t advance)
int8_t	correctionCLTadvance (int8_t advance)
int8_t	correctionIdleAdvance (int8_t advance)
int8_t	correctionSoftRevLimit (int8_t advance)
int8_t	correctionNitrous (int8_t advance)
int8_t	correctionSoftLaunch (int8_t advance)
int8_t	correctionSoftFlatShift (int8_t advance)
int8_t	correctionKnock (int8_t advance)
uint16_t	correctionsDwell (uint16_t dwell)

Variables
long	PID_O2
long	PID_output
long	PID_AFRTarget
byte	activateMAPDOT
byte	activateTPSDOT
bool	idleAdvActive = false
uint16_t	AFRnextCycle
unsigned long	knockStartTime
byte	lastKnockCount
int16_t	knockWindowMin
int16_t	knockWindowMax
uint8_t	aseTaper
uint8_t	dfcoTaper
uint8_t	idleAdvTaper
uint8_t	crankingEnrichTaper

Detailed Description

Corrections to injection pulsewidth. The corrections functions in this file affect the fuel pulsewidth (Either increasing or decreasing) based on factors other than the VE lookup.

These factors include:

• Temperature (Warmup Enrichment and After Start Enrichment)
• Acceleration/Deceleration
• Flood clear mode
• etc.

Most correction functions return value 100 (like 100% == 1) for no need for correction.

There are 2 top level functions that call more detailed corrections for Fuel and Ignition respectively:

• correctionsFuel() - All fuel related corrections
• correctionsIgn() - All ignition related corrections

Function Documentation

correctionAccel()

uint16_t correctionAccel

(

void

)

Acceleration enrichment correction calculation.

Calculates the % change of the throttle over time (%/second) and performs a lookup based on this Coolant-based modifier is applied on the top of this. When the enrichment is turned on, it runs at that amount for a fixed period of time (taeTime)

Returns

uint16_t The Acceleration enrichment modifier as a %. 100% = No modification.

As the maximum enrichment amount is +255% and maximum cold adjustment for this is 255%, the overall return value from this function can be 100+(255*255/100)=750. Hence this function returns a uint16_t rather than byte.

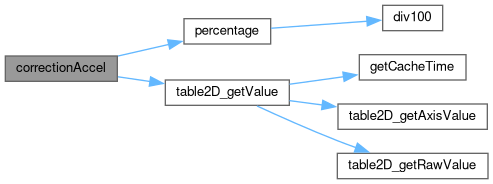

Here is the call graph for this function:

Here is the caller graph for this function:

correctionAFRClosedLoop()

byte correctionAFRClosedLoop

(

void

)

Lookup the AFR target table and perform either a simple or PID adjustment based on this.

Simple (Best suited to narrowband sensors): If the O2 sensor reports that the mixture is lean/rich compared to the desired AFR target, it will make a 1% adjustment It then waits egoDelta number of ignition events and compares O2 against the target table again. If it is still lean/rich then the adjustment is increased to 2%.

This continues until either:

• the O2 reading flips from lean to rich, at which point the adjustment cycle starts again at 1% or
• the adjustment amount increases to egoLimit at which point it stays at this level until the O2 state (rich/lean) changes

PID (Best suited to wideband sensors):

Here is the call graph for this function:

Here is the caller graph for this function:

correctionASE()

byte correctionASE

(

void

)

After Start Enrichment calculation. This is a short period (Usually <20 seconds) immediately after the engine first fires (But not when cranking) where an additional amount of fuel is added (Over and above the WUE amount).

Returns

uint8_t The After Start Enrichment modifier as a %. 100% = No modification.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionBaro()

byte correctionBaro

(

void

)

Correction for current barometric / ambient pressure.

Returns

A percentage value indicating the amount the fuelling should be changed based on the barometric reading. 100 = No change. 110 = 10% increase. 90 = 10% decrease

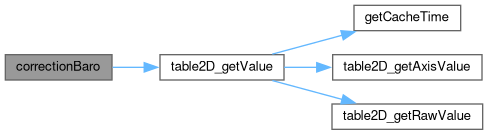

Here is the call graph for this function:

Here is the caller graph for this function:

correctionBatVoltage()

byte correctionBatVoltage

(

void

)

Battery Voltage correction. Uses a 2D enrichment table (WUETable) where the X axis is engine temp and the Y axis is the amount of extra fuel to add.

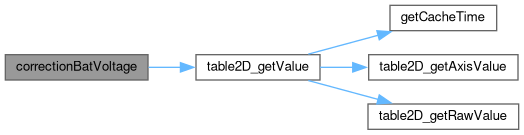

Here is the call graph for this function:

Here is the caller graph for this function:

correctionCLTadvance()

int8_t correctionCLTadvance

(

int8_t

advance

)

Ignition correction for coolant temperature (CLT).

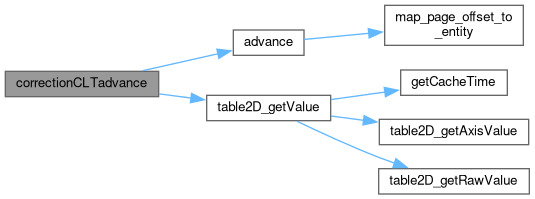

Here is the call graph for this function:

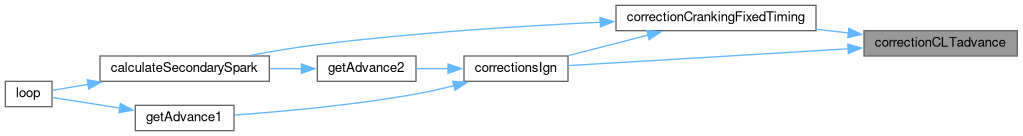

Here is the caller graph for this function:

correctionCranking()

uint16_t correctionCranking

(

void

)

Cranking Enrichment corrections. Additional fuel % to be added when the engine is cranking

Here is the call graph for this function:

Here is the caller graph for this function:

correctionCrankingFixedTiming()

int8_t correctionCrankingFixedTiming

(

int8_t

advance

)

Correct ignition timing to configured fixed value to use during craning. Must be called near end to override all other corrections.

Here is the call graph for this function:

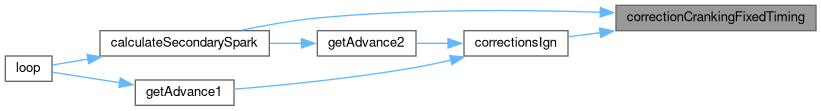

Here is the caller graph for this function:

correctionDFCO()

bool correctionDFCO

(

void

)

Here is the caller graph for this function:

correctionFixedTiming()

int8_t correctionFixedTiming

(

int8_t

advance

)

Correct ignition timing to configured fixed value. Must be called near end to override all other corrections.

Here is the call graph for this function:

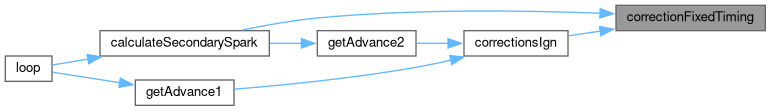

Here is the caller graph for this function:

correctionFlex()

byte correctionFlex

(

void

)

Flex fuel adjustment to vary fuel based on ethanol content. The amount of extra fuel required is a linear relationship based on the % of ethanol.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionFlexTiming()

int8_t correctionFlexTiming

(

int8_t

advance

)

Here is the call graph for this function:

Here is the caller graph for this function:

correctionFloodClear()

byte correctionFloodClear

(

void

)

Simple check to see whether we are cranking with the TPS above the flood clear threshold.

Returns

100 (not cranking and thus no need for flood-clear) or 0 (Engine cranking and TPS above config4::floodClear limit).

Here is the caller graph for this function:

correctionFuelTemp()

byte correctionFuelTemp

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

correctionIATDensity()

byte correctionIATDensity

(

void

)

Simple temperature based corrections lookup based on the inlet air temperature (IAT). This corrects for changes in air density from movement of the temperature.

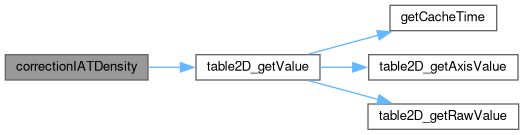

Here is the call graph for this function:

Here is the caller graph for this function:

correctionIATretard()

int8_t correctionIATretard

(

int8_t

advance

)

Ignition correction for inlet air temperature (IAT).

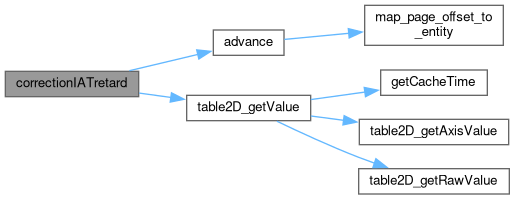

Here is the call graph for this function:

Here is the caller graph for this function:

correctionIdleAdvance()

int8_t correctionIdleAdvance

(

int8_t

advance

)

Ignition Idle advance correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionKnock()

int8_t correctionKnock

(

int8_t

advance

)

Ignition knock (retard) correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionLaunch()

byte correctionLaunch

(

void

)

Launch control has a setting to increase the fuel load to assist in bringing up boost. This simple check applies the extra fuel if we're currently launching

Here is the caller graph for this function:

correctionNitrous()

int8_t correctionNitrous

(

int8_t

advance

)

Ignition Nitrous oxide correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionsDwell()

uint16_t correctionsDwell

(

uint16_t

dwell

)

Ignition Dwell Correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionsFuel()

uint16_t correctionsFuel

(

void

)

Dispatch calculations for all fuel related corrections. Calls all the other corrections functions and combines their results. This is the only function that should be called from anywhere outside the file

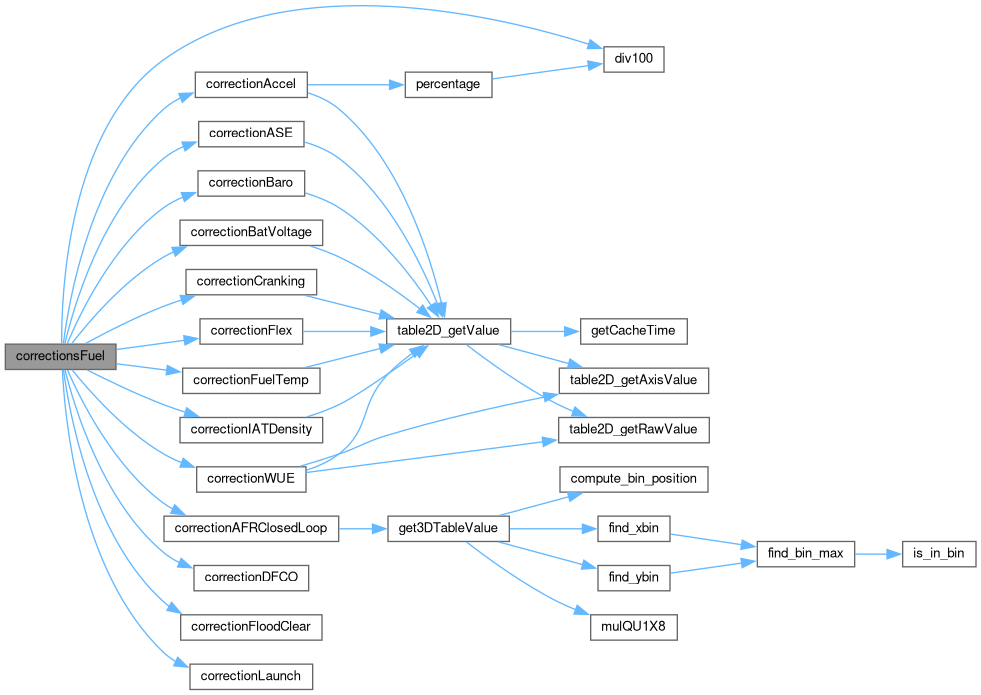

Here is the call graph for this function:

Here is the caller graph for this function:

correctionsFuel_new()

static byte correctionsFuel_new ( void  )

inlinestatic

Here is the call graph for this function:

correctionsIgn()

int8_t correctionsIgn

(

int8_t

base_advance

)

Dispatch calculations for all ignition related corrections.

Parameters

base_advance

- Base ignition advance (deg. ?)

Returns

Advance considering all (~12) individual corrections

Here is the call graph for this function:

Here is the caller graph for this function:

correctionSoftFlatShift()

int8_t correctionSoftFlatShift

(

int8_t

advance

)

Ignition correction for soft flat shift.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionSoftLaunch()

int8_t correctionSoftLaunch

(

int8_t

advance

)

Ignition soft launch correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionSoftRevLimit()

int8_t correctionSoftRevLimit

(

int8_t

advance

)

Ignition soft revlimit correction.

Here is the call graph for this function:

Here is the caller graph for this function:

correctionWMITiming()

int8_t correctionWMITiming

(

int8_t

advance

)

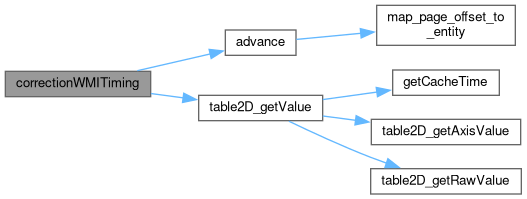

Here is the call graph for this function:

Here is the caller graph for this function:

correctionWUE()

byte correctionWUE

(

void

)

Warm Up Enrichment (WUE) corrections. Uses a 2D enrichment table (WUETable) where the X axis is engine temp and the Y axis is the amount of extra fuel to add

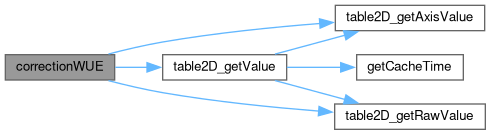

Here is the call graph for this function:

Here is the caller graph for this function:

initialiseCorrections()

void initialiseCorrections

(

void

)

Initialise instances and vars related to corrections (at ECU boot-up).

Here is the caller graph for this function:

Variable Documentation

activateMAPDOT

byte activateMAPDOT

activateTPSDOT

byte activateTPSDOT

AFRnextCycle

uint16_t AFRnextCycle

aseTaper

uint8_t aseTaper

crankingEnrichTaper

uint8_t crankingEnrichTaper

dfcoTaper

uint8_t dfcoTaper

idleAdvActive

bool idleAdvActive = false

idleAdvTaper

uint8_t idleAdvTaper

knockStartTime

unsigned long knockStartTime

knockWindowMax

int16_t knockWindowMax

knockWindowMin

int16_t knockWindowMin

lastKnockCount

byte lastKnockCount

PID_AFRTarget

long PID_AFRTarget

PID_O2

PID egoPID & PID_O2

Instance of the PID object in case that algorithm is used (Always instantiated). Needs to be global as it maintains state outside of each function call. Comes from Arduino (?) PID library.

PID_output

long PID_output
