auxiliaries.h File Reference

#include <BOARD_H>

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SIMPLE_BOOST_P   1
#define	SIMPLE_BOOST_I   1
#define	SIMPLE_BOOST_D   1
#define	BOOST_PIN_LOW()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *boost_pin_port &= ~(boost_pin_mask); }
#define	BOOST_PIN_HIGH()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *boost_pin_port |= (boost_pin_mask); }
#define	VVT1_PIN_LOW()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt1_pin_port &= ~(vvt1_pin_mask); }
#define	VVT1_PIN_HIGH()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt1_pin_port |= (vvt1_pin_mask); }
#define	VVT2_PIN_LOW()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt2_pin_port &= ~(vvt2_pin_mask); }
#define	VVT2_PIN_HIGH()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt2_pin_port |= (vvt2_pin_mask); }
#define	N2O_STAGE1_PIN_LOW()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage1_pin_port &= ~(n2o_stage1_pin_mask); }
#define	N2O_STAGE1_PIN_HIGH()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage1_pin_port |= (n2o_stage1_pin_mask); }
#define	N2O_STAGE2_PIN_LOW()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage2_pin_port &= ~(n2o_stage2_pin_mask); }
#define	N2O_STAGE2_PIN_HIGH()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage2_pin_port |= (n2o_stage2_pin_mask); }
#define	FUEL_PUMP_ON()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *pump_pin_port |= (pump_pin_mask); }
#define	FUEL_PUMP_OFF()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *pump_pin_port &= ~(pump_pin_mask); }
#define	FAN_PIN_LOW()   *fan_pin_port &= ~(fan_pin_mask)
#define	FAN_PIN_HIGH()   *fan_pin_port |= (fan_pin_mask)
#define	AIRCON_PIN_LOW()   *aircon_comp_pin_port &= ~(aircon_comp_pin_mask)
#define	AIRCON_PIN_HIGH()   *aircon_comp_pin_port |= (aircon_comp_pin_mask)
#define	AIRCON_FAN_PIN_LOW()   *aircon_fan_pin_port &= ~(aircon_fan_pin_mask)
#define	AIRCON_FAN_PIN_HIGH()   *aircon_fan_pin_port |= (aircon_fan_pin_mask)
#define	AIRCON_ON()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConCompPol)==1)) ? AIRCON_PIN_LOW() : AIRCON_PIN_HIGH()); BIT_SET(currentStatus.airConStatus, BIT_AIRCON_COMPRESSOR); }
#define	AIRCON_OFF()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConCompPol)==1)) ? AIRCON_PIN_HIGH() : AIRCON_PIN_LOW()); BIT_CLEAR(currentStatus.airConStatus, BIT_AIRCON_COMPRESSOR); }
#define	AIRCON_FAN_ON()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConFanPol)==1)) ? AIRCON_FAN_PIN_LOW() : AIRCON_FAN_PIN_HIGH()); BIT_SET(currentStatus.airConStatus, BIT_AIRCON_FAN); }
#define	AIRCON_FAN_OFF()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConFanPol)==1)) ? AIRCON_FAN_PIN_HIGH() : AIRCON_FAN_PIN_LOW()); BIT_CLEAR(currentStatus.airConStatus, BIT_AIRCON_FAN); }
#define	FAN_ON()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((configPage6.fanInv) ? FAN_PIN_LOW() : FAN_PIN_HIGH()); }
#define	FAN_OFF()   ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((configPage6.fanInv) ? FAN_PIN_HIGH() : FAN_PIN_LOW()); }
#define	READ_N2O_ARM_PIN()   ((*n2o_arming_pin_port & n2o_arming_pin_mask) ? true : false)
#define	VVT1_PIN_ON()   VVT1_PIN_HIGH();
#define	VVT1_PIN_OFF()   VVT1_PIN_LOW();
#define	VVT2_PIN_ON()   VVT2_PIN_HIGH();
#define	VVT2_PIN_OFF()   VVT2_PIN_LOW();
#define	VVT_TIME_DELAY_MULTIPLIER   50
#define	WMI_TANK_IS_EMPTY()   ((configPage10.wmiEmptyEnabled) ? ((configPage10.wmiEmptyPolarity) ? digitalRead(pinWMIEmpty) : !digitalRead(pinWMIEmpty)) : 1)

Functions
void	initialiseAuxPWM (void)
void	boostControl (void)
void	boostDisable (void)
void	boostByGear (void)
void	vvtControl (void)
void	initialiseFan (void)
void	initialiseAirCon (void)
void	nitrousControl (void)
void	fanControl (void)
void	airConControl (void)
bool	READ_AIRCON_REQUEST (void)
void	wmiControl (void)
void	boostInterrupt (void)
void	vvtInterrupt (void)

Variables
volatile PORT_TYPE *	vvt1_pin_port
volatile PINMASK_TYPE	vvt1_pin_mask
volatile PORT_TYPE *	vvt2_pin_port
volatile PINMASK_TYPE	vvt2_pin_mask
volatile PORT_TYPE *	fan_pin_port
volatile PINMASK_TYPE	fan_pin_mask
uint16_t	vvt_pwm_max_count
uint16_t	boost_pwm_max_count

Macro Definition Documentation

AIRCON_FAN_OFF

#define AIRCON_FAN_OFF

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConFanPol)==1)) ? AIRCON_FAN_PIN_HIGH() : AIRCON_FAN_PIN_LOW()); BIT_CLEAR(currentStatus.airConStatus, BIT_AIRCON_FAN); }

AIRCON_FAN_ON

#define AIRCON_FAN_ON

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConFanPol)==1)) ? AIRCON_FAN_PIN_LOW() : AIRCON_FAN_PIN_HIGH()); BIT_SET(currentStatus.airConStatus, BIT_AIRCON_FAN); }

AIRCON_FAN_PIN_HIGH

#define AIRCON_FAN_PIN_HIGH

(

)

*aircon_fan_pin_port |= (aircon_fan_pin_mask)

AIRCON_FAN_PIN_LOW

#define AIRCON_FAN_PIN_LOW

(

)

*aircon_fan_pin_port &= ~(aircon_fan_pin_mask)

AIRCON_OFF

#define AIRCON_OFF

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConCompPol)==1)) ? AIRCON_PIN_HIGH() : AIRCON_PIN_LOW()); BIT_CLEAR(currentStatus.airConStatus, BIT_AIRCON_COMPRESSOR); }

AIRCON_ON

#define AIRCON_ON

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((((configPage15.airConCompPol)==1)) ? AIRCON_PIN_LOW() : AIRCON_PIN_HIGH()); BIT_SET(currentStatus.airConStatus, BIT_AIRCON_COMPRESSOR); }

AIRCON_PIN_HIGH

#define AIRCON_PIN_HIGH

(

)

*aircon_comp_pin_port |= (aircon_comp_pin_mask)

AIRCON_PIN_LOW

#define AIRCON_PIN_LOW

(

)

*aircon_comp_pin_port &= ~(aircon_comp_pin_mask)

BOOST_PIN_HIGH

#define BOOST_PIN_HIGH

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *boost_pin_port |= (boost_pin_mask); }

BOOST_PIN_LOW

#define BOOST_PIN_LOW

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *boost_pin_port &= ~(boost_pin_mask); }

FAN_OFF

#define FAN_OFF

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((configPage6.fanInv) ? FAN_PIN_HIGH() : FAN_PIN_LOW()); }

FAN_ON

#define FAN_ON

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { ((configPage6.fanInv) ? FAN_PIN_LOW() : FAN_PIN_HIGH()); }

FAN_PIN_HIGH

#define FAN_PIN_HIGH

(

)

*fan_pin_port |= (fan_pin_mask)

FAN_PIN_LOW

#define FAN_PIN_LOW

(

)

*fan_pin_port &= ~(fan_pin_mask)

FUEL_PUMP_OFF

#define FUEL_PUMP_OFF

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *pump_pin_port &= ~(pump_pin_mask); }

FUEL_PUMP_ON

#define FUEL_PUMP_ON

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *pump_pin_port |= (pump_pin_mask); }

N2O_STAGE1_PIN_HIGH

#define N2O_STAGE1_PIN_HIGH

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage1_pin_port |= (n2o_stage1_pin_mask); }

N2O_STAGE1_PIN_LOW

#define N2O_STAGE1_PIN_LOW

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage1_pin_port &= ~(n2o_stage1_pin_mask); }

N2O_STAGE2_PIN_HIGH

#define N2O_STAGE2_PIN_HIGH

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage2_pin_port |= (n2o_stage2_pin_mask); }

N2O_STAGE2_PIN_LOW

#define N2O_STAGE2_PIN_LOW

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *n2o_stage2_pin_port &= ~(n2o_stage2_pin_mask); }

READ_N2O_ARM_PIN

#define READ_N2O_ARM_PIN

(

)

((*n2o_arming_pin_port & n2o_arming_pin_mask) ? true : false)

SIMPLE_BOOST_D

#define SIMPLE_BOOST_D   1

SIMPLE_BOOST_I

#define SIMPLE_BOOST_I   1

SIMPLE_BOOST_P

#define SIMPLE_BOOST_P   1

VVT1_PIN_HIGH

#define VVT1_PIN_HIGH

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt1_pin_port |= (vvt1_pin_mask); }

VVT1_PIN_LOW

#define VVT1_PIN_LOW

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt1_pin_port &= ~(vvt1_pin_mask); }

VVT1_PIN_OFF

#define VVT1_PIN_OFF

(

)

VVT1_PIN_LOW();

VVT1_PIN_ON

#define VVT1_PIN_ON

(

)

VVT1_PIN_HIGH();

VVT2_PIN_HIGH

#define VVT2_PIN_HIGH

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt2_pin_port |= (vvt2_pin_mask); }

VVT2_PIN_LOW

#define VVT2_PIN_LOW

(

)

ATOMIC_BLOCK(ATOMIC_RESTORESTATE) { *vvt2_pin_port &= ~(vvt2_pin_mask); }

VVT2_PIN_OFF

#define VVT2_PIN_OFF

(

)

VVT2_PIN_LOW();

VVT2_PIN_ON

#define VVT2_PIN_ON

(

)

VVT2_PIN_HIGH();

VVT_TIME_DELAY_MULTIPLIER

#define VVT_TIME_DELAY_MULTIPLIER   50

WMI_TANK_IS_EMPTY

#define WMI_TANK_IS_EMPTY

(

)

((configPage10.wmiEmptyEnabled) ? ((configPage10.wmiEmptyPolarity) ? digitalRead(pinWMIEmpty) : !digitalRead(pinWMIEmpty)) : 1)

Function Documentation

airConControl()

void airConControl

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

boostByGear()

void boostByGear

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

boostControl()

void boostControl

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

boostDisable()

void boostDisable

(

void

)

Here is the caller graph for this function:

boostInterrupt()

void boostInterrupt

(

void

)

fanControl()

void fanControl

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

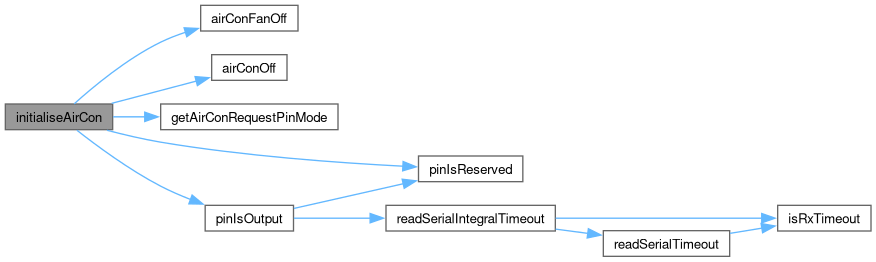

initialiseAirCon()

void initialiseAirCon

(

void

)

Here is the caller graph for this function:

initialiseAuxPWM()

void initialiseAuxPWM

(

void

)

Here is the caller graph for this function:

initialiseFan()

void initialiseFan

(

void

)

Here is the caller graph for this function:

nitrousControl()

void nitrousControl

(

void

)

Here is the caller graph for this function:

READ_AIRCON_REQUEST()

bool READ_AIRCON_REQUEST

(

void

)

Here is the caller graph for this function:

vvtControl()

void vvtControl

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

vvtInterrupt()

void vvtInterrupt

(

void

)

wmiControl()

void wmiControl

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

boost_pwm_max_count

uint16_t boost_pwm_max_count

extern

fan_pin_mask

volatile PINMASK_TYPE fan_pin_mask

extern

fan_pin_port

volatile PORT_TYPE* fan_pin_port

extern

vvt1_pin_mask

volatile PINMASK_TYPE vvt1_pin_mask

extern

vvt1_pin_port

volatile PORT_TYPE* vvt1_pin_port

extern

vvt2_pin_mask

volatile PINMASK_TYPE vvt2_pin_mask

extern

vvt2_pin_port

volatile PORT_TYPE* vvt2_pin_port

extern

vvt_pwm_max_count

uint16_t vvt_pwm_max_count

extern
