schedule_calcs.h File Reference

#include <stdint.h>
#include "scheduler.h"
#include "schedule_calcs.hpp"

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
static uint16_t	calculateInjectorStartAngle (uint16_t PWdivTimerPerDegree, int16_t injChannelDegrees, uint16_t injAngle)
static uint32_t	calculateInjectorTimeout (const FuelSchedule &schedule, int channelInjDegrees, int injectorStartAngle, int crankAngle)
static void	calculateIgnitionAngle (const uint16_t dwellAngle, const uint16_t channelIgnDegrees, int8_t advance, int *pEndAngle, int *pStartAngle)
static void	calculateIgnitionTrailingRotary (uint16_t dwellAngle, int rotarySplitDegrees, int leadIgnitionAngle, int *pEndAngle, int *pStartAngle)
static uint32_t	calculateIgnitionTimeout (const IgnitionSchedule &schedule, int startAngle, int channelIgnDegrees, int crankAngle)

Variables
int	ignition1StartAngle
int	ignition1EndAngle
int	channel1IgnDegrees
int	ignition2StartAngle
int	ignition2EndAngle
int	channel2IgnDegrees
int	ignition3StartAngle
int	ignition3EndAngle
int	channel3IgnDegrees
int	ignition4StartAngle
int	ignition4EndAngle
int	channel4IgnDegrees
int	channel1InjDegrees
int	channel2InjDegrees
int	channel3InjDegrees
int	channel4InjDegrees

Function Documentation

calculateIgnitionAngle()

static void calculateIgnitionAngle ( const uint16_t  dwellAngle, const uint16_t  channelIgnDegrees, int8_t  advance, int *  pEndAngle, int *  pStartAngle  )

inlinestatic

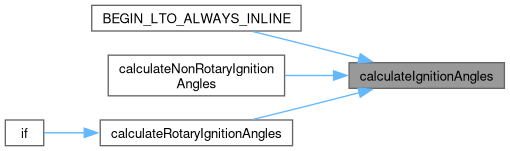

Here is the caller graph for this function:

calculateIgnitionTimeout()

static uint32_t calculateIgnitionTimeout ( const IgnitionSchedule &  schedule, int  startAngle, int  channelIgnDegrees, int  crankAngle  )

inlinestatic

Here is the caller graph for this function:

calculateIgnitionTrailingRotary()

static void calculateIgnitionTrailingRotary ( uint16_t  dwellAngle, int  rotarySplitDegrees, int  leadIgnitionAngle, int *  pEndAngle, int *  pStartAngle  )

inlinestatic

Here is the caller graph for this function:

calculateInjectorStartAngle()

static uint16_t calculateInjectorStartAngle ( uint16_t  PWdivTimerPerDegree, int16_t  injChannelDegrees, uint16_t  injAngle  )

inlinestatic

Here is the caller graph for this function:

calculateInjectorTimeout()

static uint32_t calculateInjectorTimeout ( const FuelSchedule &  schedule, int  channelInjDegrees, int  injectorStartAngle, int  crankAngle  )

inlinestatic

Here is the caller graph for this function:

Variable Documentation

channel1IgnDegrees

int channel1IgnDegrees

extern

The number of crank degrees until cylinder 1 is at TDC (This is obviously 0 for virtually ALL engines, but there's some weird ones)

channel1InjDegrees

int channel1InjDegrees

extern

The number of crank degrees until cylinder 1 is at TDC (This is obviously 0 for virtually ALL engines, but there's some weird ones)

channel2IgnDegrees

int channel2IgnDegrees

extern

The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

channel2InjDegrees

int channel2InjDegrees

extern

The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

channel3IgnDegrees

int channel3IgnDegrees

extern

The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

channel3InjDegrees

int channel3InjDegrees

extern

The number of crank degrees until cylinder 3 (and 5/6/7/8) is at TDC

channel4IgnDegrees

int channel4IgnDegrees

extern

The number of crank degrees until cylinder 2 (and 5/6/7/8) is at TDC

channel4InjDegrees

int channel4InjDegrees

extern

The number of crank degrees until cylinder 4 (and 5/6/7/8) is at TDC

ignition1EndAngle

int ignition1EndAngle

extern

ignition1StartAngle

int ignition1StartAngle

extern

ignition2EndAngle

int ignition2EndAngle

extern

ignition2StartAngle

int ignition2StartAngle

extern

ignition3EndAngle

int ignition3EndAngle

extern

ignition3StartAngle

int ignition3StartAngle

extern

ignition4EndAngle

int ignition4EndAngle

extern

ignition4StartAngle

int ignition4StartAngle

extern
