programmableIOControl.cpp File Reference

#include "programmableIOControl.h"
#include "logger.h"
#include "units.h"
#include "unit_testing.h"

Functions
void	initialiseProgrammableIO (statuses &current, const config13 &page13)
TESTABLE_STATIC void	checkProgrammableIO (statuses &current, const config13 &page13, int16_t(*getData)(uint16_t index))
void	checkProgrammableIO (statuses &current, const config13 &page13)
TESTABLE_STATIC int16_t	ProgrammableIOGetData (uint16_t index, byte(*pGetLogEntry)(uint16_t byteNum))
int16_t	ProgrammableIOGetData (uint16_t index)

Variables
TESTABLE_STATIC uint8_t	ioDelay [_countof(config13::outputPin)]
TESTABLE_STATIC uint8_t	ioOutDelay [_countof(config13::outputPin)]
TESTABLE_STATIC uint8_t	pinIsValid = 0
TESTABLE_STATIC uint8_t	currentRuleStatus = 0
constexpr uint8_t	COMPARATOR_EQUAL = 0
constexpr uint8_t	COMPARATOR_NOT_EQUAL = 1
constexpr uint8_t	COMPARATOR_GREATER = 2
constexpr uint8_t	COMPARATOR_GREATER_EQUAL = 3
constexpr uint8_t	COMPARATOR_LESS = 4
constexpr uint8_t	COMPARATOR_LESS_EQUAL = 5
constexpr uint8_t	COMPARATOR_AND = 6
constexpr uint8_t	COMPARATOR_XOR = 7
constexpr uint8_t	BITWISE_DISABLED = 0
constexpr uint8_t	BITWISE_AND = 1
constexpr uint8_t	BITWISE_OR = 2
constexpr uint8_t	BITWISE_XOR = 3
constexpr uint8_t	REUSE_RULES = 240

Detailed Description

Custom Programmable I/O. The config related to Programmable I/O is found on page13 (of type config13).

Function Documentation

checkProgrammableIO() [1/2]

void checkProgrammableIO	(	statuses &	current,
		const config13 &	page13
	)

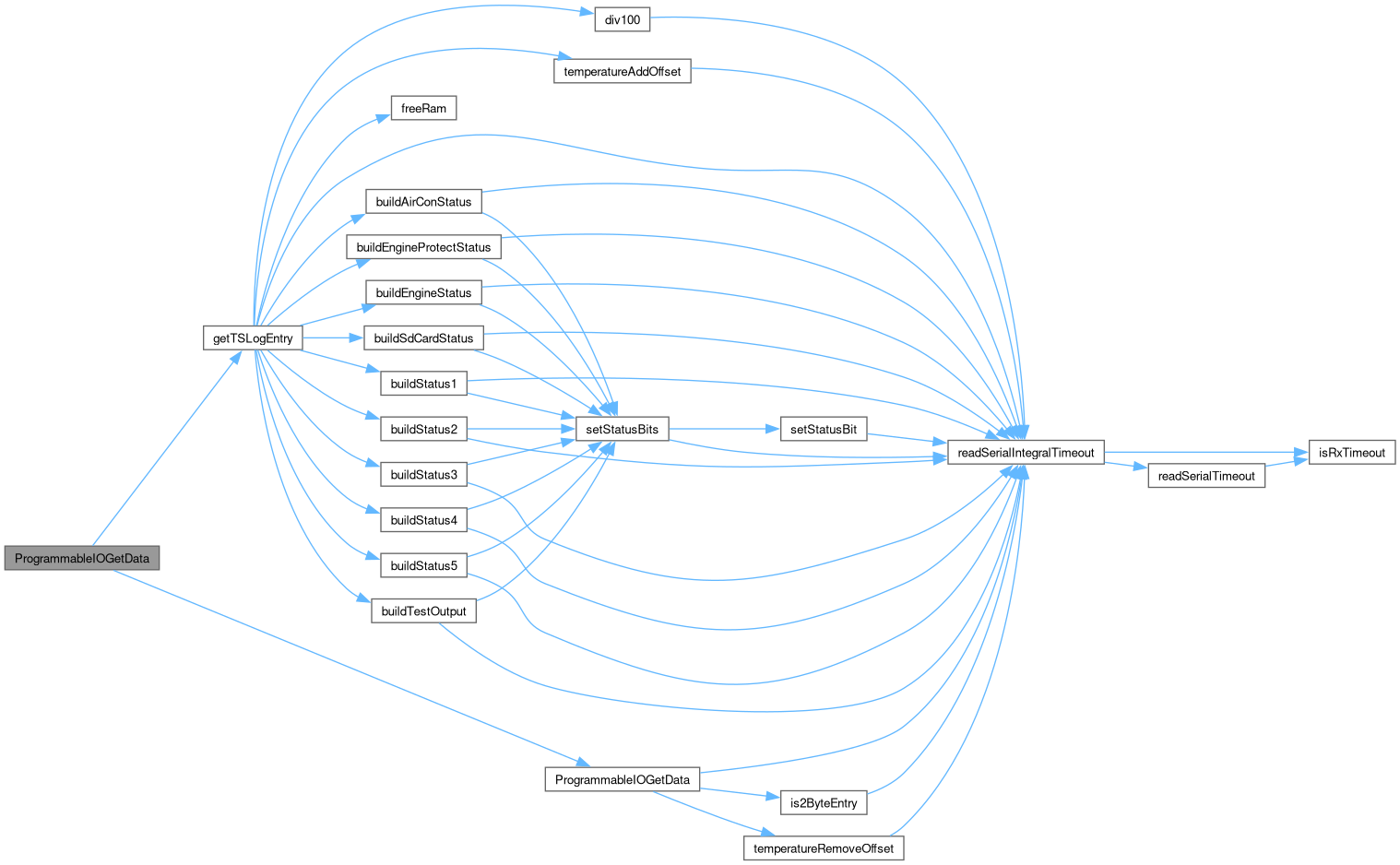

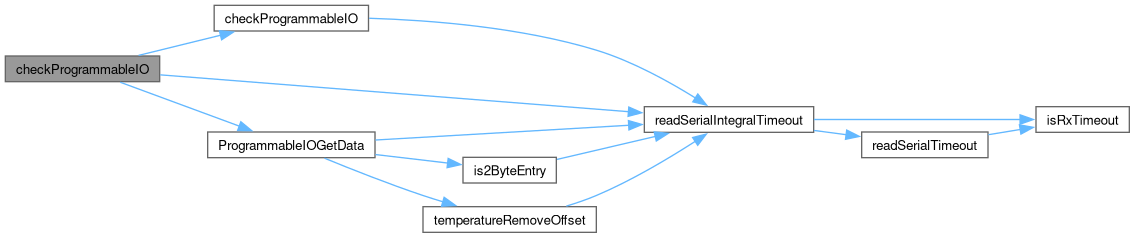

Here is the call graph for this function:

checkProgrammableIO() [2/2]

TESTABLE_STATIC void checkProgrammableIO	(	statuses &	current,
		const config13 &	page13,
		int16_t(*)(uint16_t index)	getData
	)

Check all (8) programmable I/O:s and carry out action on output pin as needed. Compare 2 (16 bit) vars in a way configured by cmpOperation (see also config13::operation). Use ProgrammableIOGetData() to get 2 vars to compare. Skip all programmable I/O:s where output pin is set 0 (meaning: not programmed).

Here is the call graph for this function:

Here is the caller graph for this function:

initialiseProgrammableIO()

void initialiseProgrammableIO	(	statuses &	current,
		const config13 &	page13
	)

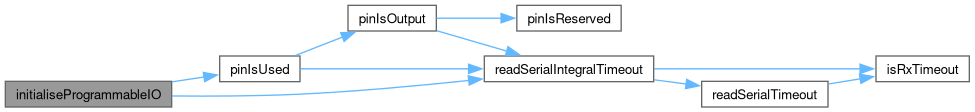

Here is the call graph for this function:

Here is the caller graph for this function:

ProgrammableIOGetData() [1/2]

int16_t ProgrammableIOGetData

(

uint16_t

index

)

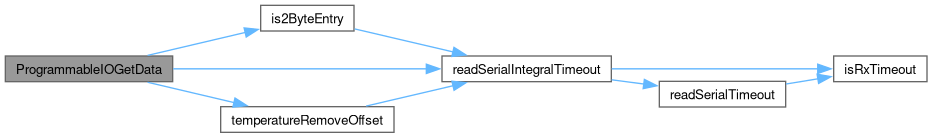

Here is the call graph for this function:

ProgrammableIOGetData() [2/2]

TESTABLE_STATIC int16_t ProgrammableIOGetData	(	uint16_t	index,
		byte(*)(uint16_t byteNum)	pGetLogEntry
	)

Get single I/O data var (from current) for comparison.

Parameters

index

- Field index/number (?)

Returns

16 bit (int) result

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

BITWISE_AND

constexpr uint8_t BITWISE_AND = 1

constexpr

BITWISE_DISABLED

constexpr uint8_t BITWISE_DISABLED = 0

constexpr

BITWISE_OR

constexpr uint8_t BITWISE_OR = 2

constexpr

BITWISE_XOR

constexpr uint8_t BITWISE_XOR = 3

constexpr

COMPARATOR_AND

constexpr uint8_t COMPARATOR_AND = 6

constexpr

COMPARATOR_EQUAL

constexpr uint8_t COMPARATOR_EQUAL = 0

constexpr

COMPARATOR_GREATER

constexpr uint8_t COMPARATOR_GREATER = 2

constexpr

COMPARATOR_GREATER_EQUAL

constexpr uint8_t COMPARATOR_GREATER_EQUAL = 3

constexpr

COMPARATOR_LESS

constexpr uint8_t COMPARATOR_LESS = 4

constexpr

COMPARATOR_LESS_EQUAL

constexpr uint8_t COMPARATOR_LESS_EQUAL = 5

constexpr

COMPARATOR_NOT_EQUAL

constexpr uint8_t COMPARATOR_NOT_EQUAL = 1

constexpr

COMPARATOR_XOR

constexpr uint8_t COMPARATOR_XOR = 7

constexpr

currentRuleStatus

TESTABLE_STATIC uint8_t currentRuleStatus = 0

ioDelay

TESTABLE_STATIC uint8_t ioDelay[_countof(config13::outputPin)]

ioOutDelay

TESTABLE_STATIC uint8_t ioOutDelay[_countof(config13::outputPin)]

pinIsValid

TESTABLE_STATIC uint8_t pinIsValid = 0

REUSE_RULES

constexpr uint8_t REUSE_RULES = 240
