logger.ino File Reference

#include "globals.h"
#include "logger.h"
#include "errors.h"
#include "decoders.h"
#include "init.h"

Functions
byte	getTSLogEntry (uint16_t byteNum)
int16_t	getReadableLogEntry (uint16_t logIndex)
bool	is2ByteEntry (uint8_t key)
void	startToothLogger (void)
void	stopToothLogger (void)
void	startCompositeLogger (void)
void	stopCompositeLogger (void)
void	startCompositeLoggerTertiary (void)
void	stopCompositeLoggerTertiary (void)
void	startCompositeLoggerCams (void)
void	stopCompositeLoggerCams (void)

Function Documentation

getReadableLogEntry()

int16_t getReadableLogEntry

(

uint16_t

logIndex

)

Similar to the getTSLogEntry function, however this returns a full, unadjusted (ie human readable) log entry value. See logger.h for the field names and order

Parameters

logIndex

- The log index required. Note that this is NOT the byte number, but the index in the log

Returns

Raw, unadjusted value of the log entry. No offset or multiply is applied like it is with the TS log

Here is the call graph for this function:

getTSLogEntry()

byte getTSLogEntry

(

uint16_t

byteNum

)

Returns a numbered byte-field (partial field in case of multi-byte fields) from "current status" structure in the format expected by TunerStudio Notes on fields:

• Numbered field will be fields from currentStatus, but not at all in the internal order of strct (e.g. field RPM value, number 14 will be 2nd field in struct)
• The fields stored in multi-byte types will be accessed lowbyte and highbyte separately (e.g. PW1 will be broken into numbered byte-fields 75,76)
• Values have the value offsets and shifts expected by TunerStudio. They will not all be a 'human readable value'

  Parameters

  byteNum

  - byte-Field number. This is not the entry number (As some entries have multiple byets), but the byte number that is needed

  Returns

  Field value in 1 byte size struct fields or 1 byte partial value (chunk) on multibyte fields.

Here is the call graph for this function:

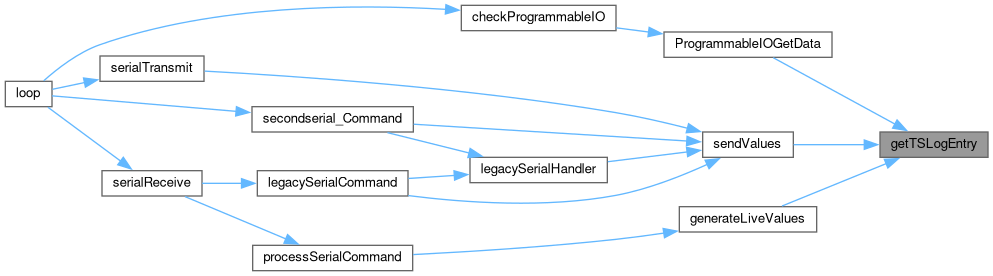

Here is the caller graph for this function:

is2ByteEntry()

bool is2ByteEntry

(

uint8_t

key

)

An expansion to the getReadableLogEntry function for systems that have an FPU. It will provide a floating point value for any parameter that this is appropriate for, otherwise will return the result of getReadableLogEntry. See logger.h for the field names and order

Parameters

logIndex

- The log index required. Note that this is NOT the byte number, but the index in the log

Returns

float value of the requested log entry. Searches the log 2 byte array to determine whether a given index is a regular single byte or a 2 byte field Uses a boundless binary search for improved performance, but requires the fsIntIndex to remain in order Refer: https://github.com/scandum/binary_search

Parameters

key	- Index in the log array to check

Returns

True if the index is a 2 byte log field. False if it is a single byte

Here is the caller graph for this function:

startCompositeLogger()

void startCompositeLogger

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

startCompositeLoggerCams()

void startCompositeLoggerCams

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

startCompositeLoggerTertiary()

void startCompositeLoggerTertiary

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

startToothLogger()

void startToothLogger

(

void

)

Here is the call graph for this function:

Here is the caller graph for this function:

stopCompositeLogger()

void stopCompositeLogger

(

void

)

Here is the caller graph for this function:

stopCompositeLoggerCams()

void stopCompositeLoggerCams

(

void

)

Here is the caller graph for this function:

stopCompositeLoggerTertiary()

void stopCompositeLoggerTertiary

(

void

)

Here is the caller graph for this function:

stopToothLogger()

void stopToothLogger

(

void

)

Here is the caller graph for this function:
