Ignition schedule timer ISRs

Functions
template<typename T >
static void	increment_volatile (volatile T &value)
	Increment a volatile variable correctly.
static void	onEndIgnitionEvent (const IgnitionSchedule *pSchedule)
	Called when an ignition event ends. I.e. a spark fires.
	BEGIN_LTO_ALWAYS_INLINE (void) static ignitionPendingToRunning(Schedule *pSchedule)
	Called when the supplied schedule transitions from a PENDING state to RUNNING.
void	moveToNextState (IgnitionSchedule &schedule) noexcept
	Shared ignition schedule timer ISR implementation. Should be called by the actual ignition timer ISRs (as timed interrupts) when either the start time or the duration time are reached. See Schedule finite state machine.
static bool	isAnyFuelScheduleRunning (void)
static void	changeFuellingToFullSequential (const config2 &page2, statuses &current)
void	changeHalfToFullSync (const config2 &page2, statuses &current)
static void	changeFuellingtoHalfSync (const config2 &page2, const config4 &page4, statuses &current)
void	changeFullToHalfSync (const config2 &page2, const config4 &page4, statuses &current)

Detailed Description

Function Documentation

BEGIN_LTO_ALWAYS_INLINE()

BEGIN_LTO_ALWAYS_INLINE

(

void

)

Called when the supplied schedule transitions from a PENDING state to RUNNING.

Called when the supplied schedule transitions from a RUNNING state to PENDING.

Called when the supplied schedule transitions from a RUNNING state to OFF.

Here is the call graph for this function:

changeFuellingToFullSequential()

static void changeFuellingToFullSequential ( const config2 &  page2, statuses &  current  )

inlinestatic

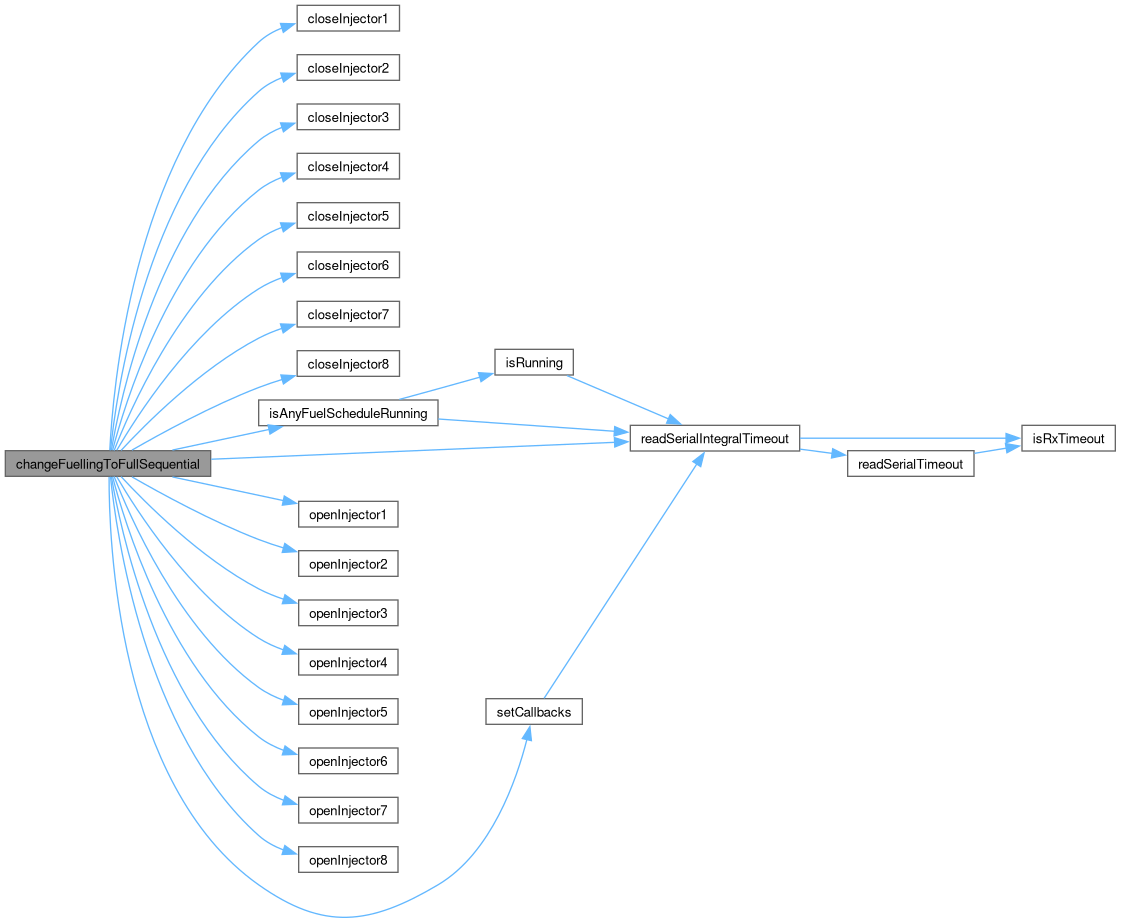

Here is the call graph for this function:

Here is the caller graph for this function:

changeFuellingtoHalfSync()

static void changeFuellingtoHalfSync ( const config2 &  page2, const config4 &  page4, statuses &  current  )

inlinestatic

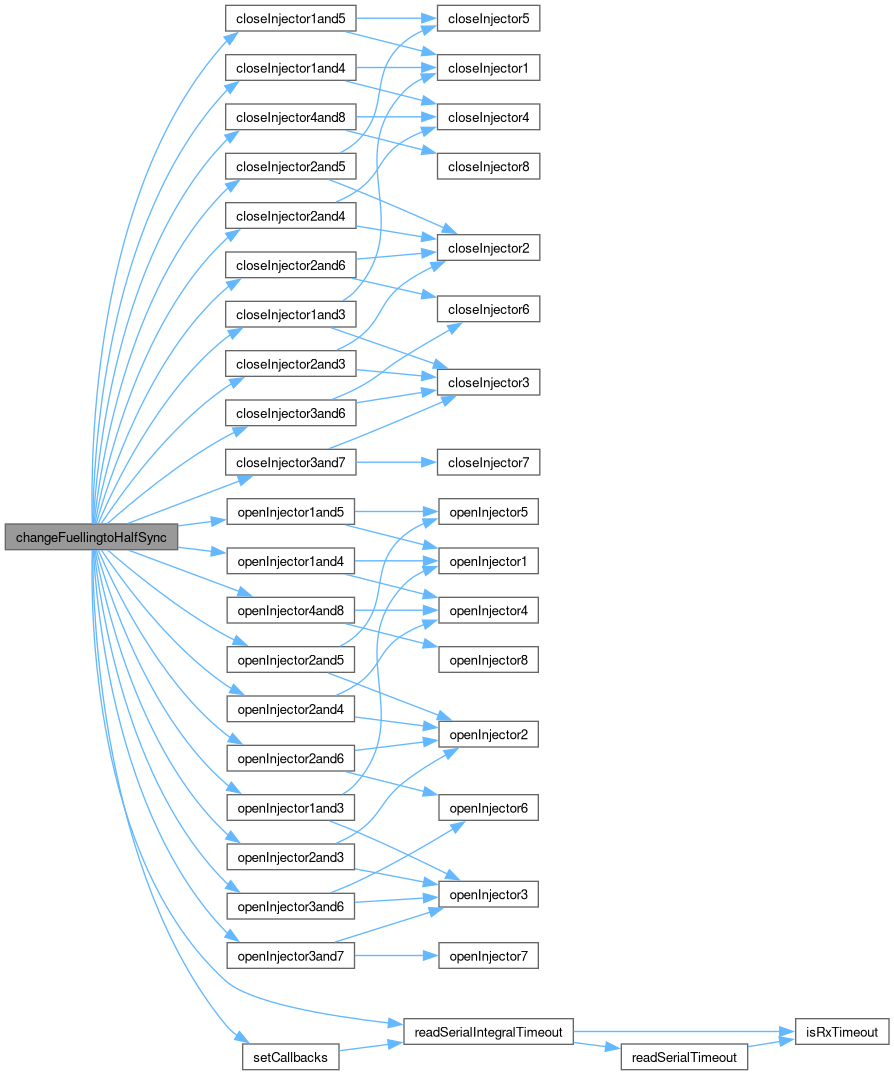

Here is the call graph for this function:

Here is the caller graph for this function:

changeFullToHalfSync()

void changeFullToHalfSync	(	const config2 &	page2,
		const config4 &	page4,
		statuses &	current
	)

Change injectors or/and ignition angles to 360deg. In semi sequentiol mode req_fuel size is half. Set number of outputs equal to half cylinder count.

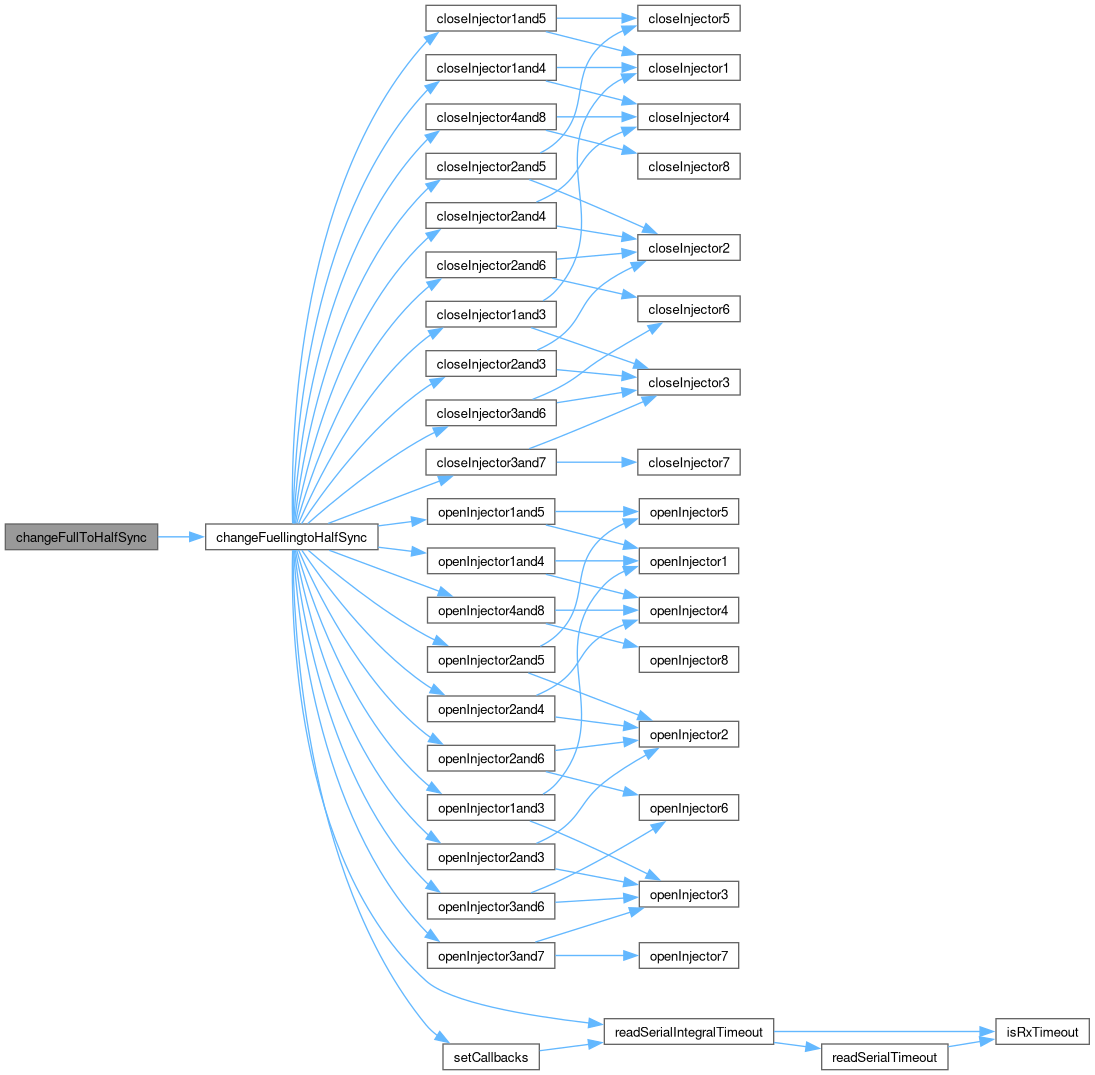

Here is the call graph for this function:

Here is the caller graph for this function:

changeHalfToFullSync()

void changeHalfToFullSync	(	const config2 &	page2,
		statuses &	current
	)

Change injectors or/and ignition angles to 720deg. Roll back req_fuel size and set number of outputs equal to cylinder count.

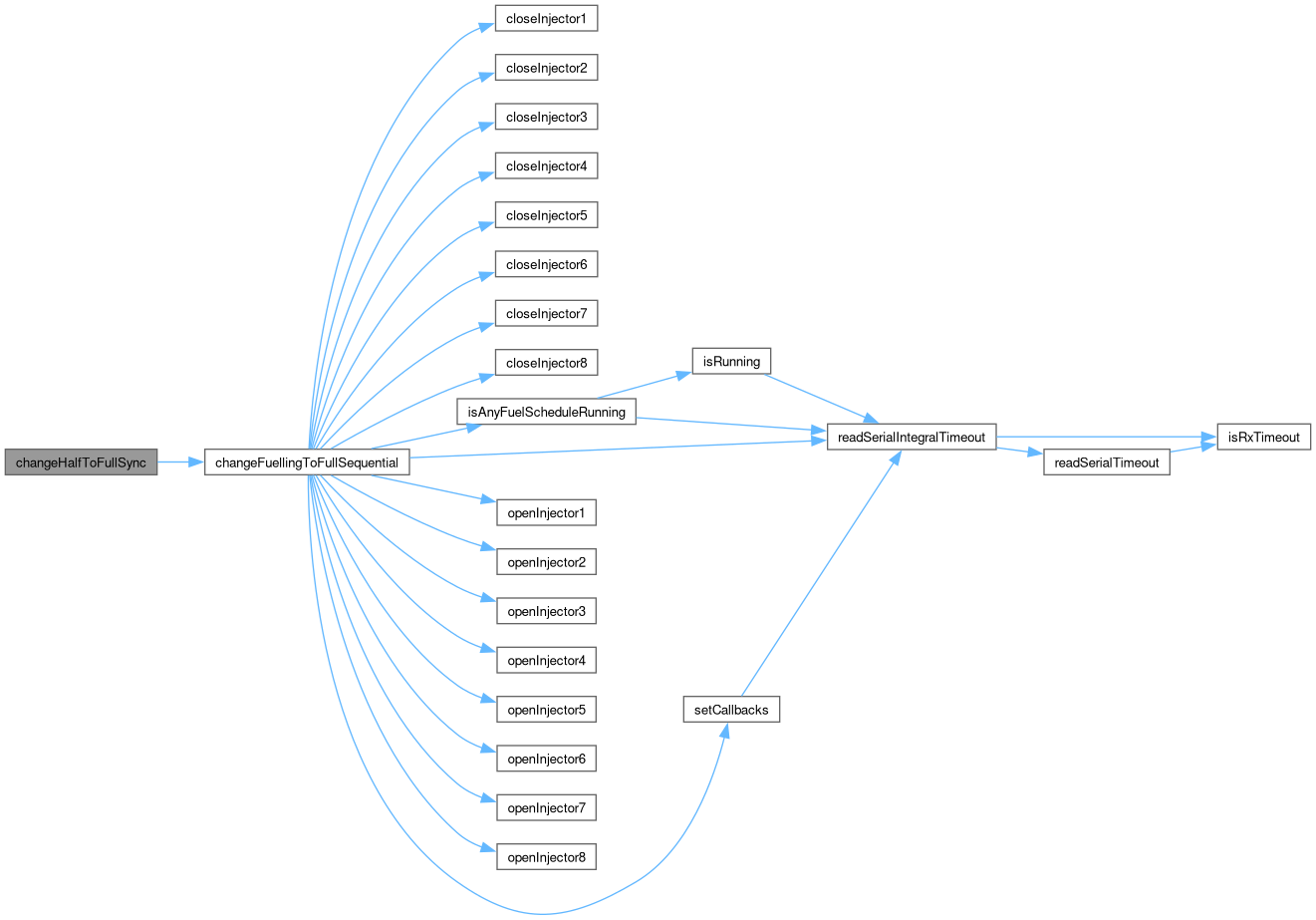

Here is the call graph for this function:

Here is the caller graph for this function:

increment_volatile()

template<typename T >

static void increment_volatile ( volatile T &  value )

inlinestatic

Increment a volatile variable correctly.

Here is the call graph for this function:

Here is the caller graph for this function:

isAnyFuelScheduleRunning()

static bool isAnyFuelScheduleRunning ( void  )

inlinestatic

Here is the call graph for this function:

Here is the caller graph for this function:

moveToNextState()

void moveToNextState ( IgnitionSchedule &  schedule )

noexcept

Shared ignition schedule timer ISR implementation. Should be called by the actual ignition timer ISRs (as timed interrupts) when either the start time or the duration time are reached. See Schedule finite state machine.

Parameters

schedule

The ignition schedule to move to the next state

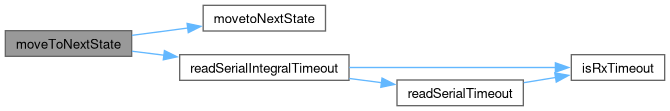

Here is the call graph for this function:

onEndIgnitionEvent()

static void onEndIgnitionEvent ( const IgnitionSchedule *  pSchedule )

inlinestatic

Called when an ignition event ends. I.e. a spark fires.

Parameters

pSchedule

Pointer to the schedule that fired the spark

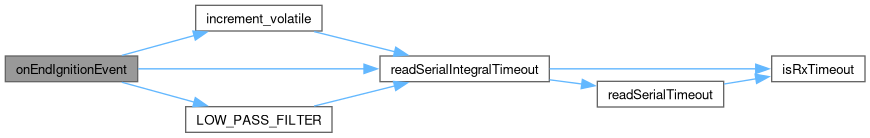

Here is the call graph for this function:
