Schedule Struct Reference

A schedule for a single output channel. More...

#include <scheduler.h>

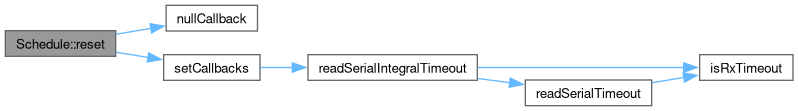

Inheritance diagram for Schedule:

Public Types
using	counter_t = decltype(FUEL1_COUNTER)
	The type of a timer counter register (this varies between platforms)
using	compare_t = decltype(FUEL1_COMPARE)
	The type of a timer compare register (this varies between platforms)

Public Member Functions
constexpr	Schedule (counter_t &counter, compare_t &compare)
	Construct a new Schedule object.

Public Attributes
volatile COMPARE_TYPE	duration = 0U
	Scheduled duration (timer ticks)
volatile ScheduleStatus	Status = OFF
	Schedule status: OFF, PENDING, STAGED, RUNNING.
voidVoidCallback	pStartCallback = &nullCallback
	Start Callback function for schedule.
voidVoidCallback	pEndCallback = &nullCallback
	End Callback function for schedule.
COMPARE_TYPE	nextStartCompare = 0U
	Planned start of next schedule (when current schedule is RUNNING)
counter_t &	_counter
	Reference to the counter register. E.g. TCNT3
compare_t &	_compare
	**Reference**to the compare register. E.g. OCR3A

Detailed Description

A schedule for a single output channel.

A schedule consists of 3 independent parts:

• an action that can be started and stopped. E.g. charge ignition coil or injection pulse
• a delay until the action is started
• a duration until the action is stopped

I.e.

<--------------- Delay ---------------><---- Duration ---->
                                       ^                  ^
                           Action starts                  Action ends

Timers are modelled as registers

Once set, Schedule instances are usually driven externally by a timer ISR

Member Typedef Documentation

compare_t

using Schedule::compare_t = decltype(FUEL1_COMPARE )

The type of a timer compare register (this varies between platforms)

counter_t

using Schedule::counter_t = decltype(FUEL1_COUNTER )

The type of a timer counter register (this varies between platforms)

Constructor & Destructor Documentation

Schedule()

constexpr Schedule::Schedule ( counter_t &  counter, compare_t &  compare  )

inlineconstexpr

Construct a new Schedule object.

Parameters

counter	A reference to the timer counter
compare	A reference to the timer comparator

Member Data Documentation

_compare

compare_t& Schedule::_compare

**Reference**to the compare register. E.g. OCR3A

_counter

counter_t& Schedule::_counter

Reference to the counter register. E.g. TCNT3

duration

volatile COMPARE_TYPE Schedule::duration = 0U

Scheduled duration (timer ticks)

This captures the duration of the next interval to be scheduled. I.e.

• Status==PENDING: this is the duration that will be used when the schedule moves to the RUNNING state
• Status==RUNNING_WITHNEXT: this is the duration that will be used after the current schedule finishes and the queued up scheduled starts

nextStartCompare

COMPARE_TYPE Schedule::nextStartCompare = 0U

Planned start of next schedule (when current schedule is RUNNING)

pEndCallback

voidVoidCallback Schedule::pEndCallback = &nullCallback

End Callback function for schedule.

pStartCallback

voidVoidCallback Schedule::pStartCallback = &nullCallback

Start Callback function for schedule.

Status

volatile ScheduleStatus Schedule::Status = OFF

Schedule status: OFF, PENDING, STAGED, RUNNING.

---

The documentation for this struct was generated from the following file:

• speeduino/scheduler.h
