interrupt_t Struct Reference

This structure represents a trigger interrupt. More...

#include <decoder_t.h>

Collaboration diagram for interrupt_t:

Public Types
using	callback_t = void(*)(void)

Public Member Functions
	interrupt_t ()=default
	interrupt_t (callback_t _callback, uint8_t _edge)
uint8_t	attach (uint8_t pin)
	Attach the interrupt to a pin.
void	detach (uint8_t pin)
	Detach the interrupt from a pin.
bool	isTriggered (void) const
	Does the pin state match the edge setting?
bool	isValid (void) const
	Is the interrupt configured correctly?
bool	isPinHigh (void) const

Public Attributes
callback_t	callback = nullptr
	The callback function to be called on interrupt.
uint8_t	edge = TRIGGER_EDGE_NONE
	The edge type for the interrupt. E.g. RISING, FALLING, CHANGE.
boardInputPin_t	_pin

Detailed Description

This structure represents a trigger interrupt.

Member Typedef Documentation

callback_t

using interrupt_t::callback_t = void(*)(void)

Constructor & Destructor Documentation

interrupt_t() [1/2]

interrupt_t::interrupt_t ( )

default

interrupt_t() [2/2]

interrupt_t::interrupt_t ( callback_t  _callback, uint8_t  _edge  )

inline

Member Function Documentation

attach()

uint8_t interrupt_t::attach

(

uint8_t

pin

)

Attach the interrupt to a pin.

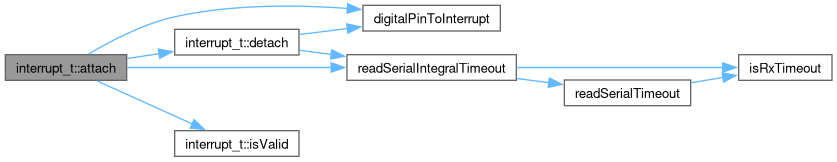

Here is the call graph for this function:

Here is the caller graph for this function:

detach()

void interrupt_t::detach

(

uint8_t

pin

)

Detach the interrupt from a pin.

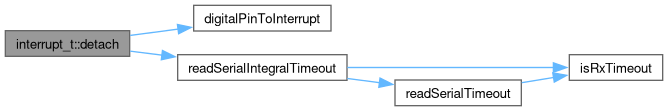

Here is the call graph for this function:

Here is the caller graph for this function:

isPinHigh()

bool interrupt_t::isPinHigh ( void  ) const

inline

Here is the call graph for this function:

Here is the caller graph for this function:

isTriggered()

bool interrupt_t::isTriggered

(

void

)

const

Does the pin state match the edge setting?

Note

Will always return true for the CHANGE trigger edge

Here is the call graph for this function:

isValid()

bool interrupt_t::isValid ( void  ) const

inline

Is the interrupt configured correctly?

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

_pin

boardInputPin_t interrupt_t::_pin

callback

callback_t interrupt_t::callback = nullptr

The callback function to be called on interrupt.

edge

uint8_t interrupt_t::edge = TRIGGER_EDGE_NONE

The edge type for the interrupt. E.g. RISING, FALLING, CHANGE.

---

The documentation for this struct was generated from the following files:

• speeduino/decoder_t.h
• speeduino/decoder_t.cpp
