storage.h File Reference

Functions for reading and writing user settings to/from EEPROM. More...

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	EEPROM_CONFIG1_MAP   3
#define	EEPROM_CONFIG2_START   291
#define	EEPROM_CONFIG2_END   419
#define	EEPROM_CONFIG3_MAP   421
#define	EEPROM_CONFIG4_START   709
#define	EEPROM_CONFIG4_END   837
#define	EEPROM_CONFIG5_MAP   839
#define	EEPROM_CONFIG6_START   1127
#define	EEPROM_CONFIG6_END   1255
#define	EEPROM_CONFIG7_MAP1   1257
#define	EEPROM_CONFIG7_MAP2   1339
#define	EEPROM_CONFIG7_MAP3   1421
#define	EEPROM_CONFIG7_END   1501
#define	EEPROM_CONFIG8_MAP1   1503
#define	EEPROM_CONFIG8_MAP2   1553
#define	EEPROM_CONFIG8_MAP3   1603
#define	EEPROM_CONFIG8_MAP4   1653
#define	EEPROM_CONFIG9_START   1710
#define	EEPROM_CONFIG9_END   1902
#define	EEPROM_CONFIG10_START   1902
#define	EEPROM_CONFIG10_END   2094
#define	EEPROM_CONFIG11_MAP   2096
#define	EEPROM_CONFIG11_END   2385
#define	EEPROM_CONFIG12_MAP   2387
#define	EEPROM_CONFIG12_MAP2   2469
#define	EEPROM_CONFIG12_MAP3   2551
#define	EEPROM_CONFIG12_END   2575
#define	EEPROM_CONFIG13_START   2580
#define	EEPROM_CONFIG13_END   2708
#define	EEPROM_CONFIG14_MAP   2710
#define	EEPROM_CONFIG14_END   2998
#define	EEPROM_CONFIG8_MAP5   3001
#define	EEPROM_CONFIG8_MAP6   3051
#define	EEPROM_CONFIG8_MAP7   3101
#define	EEPROM_CONFIG8_MAP8   3151
#define	EEPROM_CONFIG15_MAP   3199
#define	EEPROM_CONFIG15_START   3281
#define	EEPROM_CONFIG15_END   3457
#define	EEPROM_CALIBRATION_CLT_CRC   3674
#define	EEPROM_CALIBRATION_IAT_CRC   3678
#define	EEPROM_CALIBRATION_O2_CRC   3682
#define	EEPROM_CALIBRATION_O2_OLD   2559
#define	EEPROM_CALIBRATION_IAT_OLD   3071
#define	EEPROM_CALIBRATION_CLT_OLD   3583
#define	EEPROM_DEFER_DELAY   MICROS_PER_SEC

Functions
void	writeAllConfig (void)
void	writeConfig (uint8_t pageNum)
void	EEPROMWriteRaw (uint16_t address, uint8_t data)
uint8_t	EEPROMReadRaw (uint16_t address)
void	loadConfig (void)
void	loadCalibration (void)
void	writeCalibration (void)
void	writeCalibrationPage (uint8_t pageNum)
void	resetConfigPages (void)
byte	readLastBaro (void)
	Read last stored barometer reading from EEPROM.
void	storeLastBaro (byte newValue)
	Write last acquired arometer reading to EEPROM.
uint8_t	readEEPROMVersion (void)
	Read EEPROM current data format version (from offset EEPROM_DATA_VERSION).
void	storeEEPROMVersion (byte newVersion)
	Store EEPROM current data format version (to offset EEPROM_DATA_VERSION).
void	storePageCRC32 (uint8_t pageNum, uint32_t crcValue)
uint32_t	readPageCRC32 (uint8_t pageNum)
void	storeCalibrationCRC32 (uint8_t calibrationPageNum, uint32_t calibrationCRC)
uint32_t	readCalibrationCRC32 (uint8_t calibrationPageNum)
uint16_t	getEEPROMSize (void)
bool	isEepromWritePending (void)

Variables
uint32_t	deferEEPROMWritesUntil

Detailed Description

Functions for reading and writing user settings to/from EEPROM.

Current layout of EEPROM is as follows (Version 18):

Offset (Dec)	Size (Bytes)	Description	Reference
0	1	EEPROM version	EEPROM_DATA_VERSION
1	2	X and Y sizes for fuel table
3	256	Fuel table (16x16)	EEPROM_CONFIG1_MAP
259	16	Fuel table (X axis) (RPM)
275	16	Fuel table (Y axis) (MAP/TPS)
291	128	Page 2 settings	EEPROM_CONFIG2_START
419	2	X and Y sizes for ignition table
421	256	Ignition table (16x16)	EEPROM_CONFIG3_MAP
677	16	Ignition table (X axis) (RPM)
693	16	Ignition table (Y axis) (MAP/TPS)
709	128	Page 4 settings	EEPROM_CONFIG4_START
837	2	X and Y sizes for AFR target table
839	256	AFR target table (16x16)	EEPROM_CONFIG5_MAP
1095	16	AFR target table (X axis) (RPM)
1111	16	AFR target table (Y axis) (MAP/TPS)
1127	128	Page 6 settings	EEPROM_CONFIG6_START
1255	2	X and Y sizes for boost table
1257	64	Boost table (8x8)	EEPROM_CONFIG7_MAP1
1321	8	Boost table (X axis) (RPM)
1329	8	Boost table (Y axis) (TPS)
1337	2	X and Y sizes for vvt table
1339	64	VVT table (8x8)	EEPROM_CONFIG7_MAP2
1403	8	VVT table (X axis) (RPM)
1411	8	VVT table (Y axis) (MAP)
1419	2	X and Y sizes for staging table
1421	64	Staging table (8x8)	EEPROM_CONFIG7_MAP3
1485	8	Staging table (X axis) (RPM)
1493	8	Staging table (Y axis) (MAP)
1501	2	X and Y sizes for trim1 table
1503	36	Trim1 table (6x6)	EEPROM_CONFIG8_MAP1
1539	6	Trim1 table (X axis) (RPM)
1545	6	Trim1 table (Y axis) (MAP)
1551	2	X and Y sizes for trim2 table
1553	36	Trim2 table (6x6)	EEPROM_CONFIG8_MAP2
1589	6	Trim2 table (X axis) (RPM)
1595	6	Trim2 table (Y axis) (MAP)
1601	2	X and Y sizes for trim3 table
1603	36	Trim3 table (6x6)	EEPROM_CONFIG8_MAP3
1639	6	Trim3 table (X axis) (RPM)
1545	6	Trim3 table (Y axis) (MAP)
1651	2	X and Y sizes for trim4 table
1653	36	Trim4 table (6x6)	EEPROM_CONFIG8_MAP4
1689	6	Trim4 table (X axis) (RPM)
1595	6	Trim4 table (Y axis) (MAP)
1701	9	HOLE ??
1710	192	Page 9 settings	EEPROM_CONFIG9_START
1902	192	Page 10 settings	EEPROM_CONFIG10_START
2094	2	X and Y sizes for fuel2 table
2096	256	Fuel2 table (16x16)	EEPROM_CONFIG11_MAP
2352	16	Fuel2 table (X axis) (RPM)
2368	16	Fuel2 table (Y axis) (MAP/TPS)
2384	1	HOLE ??
2385	2	X and Y sizes for WMI table
2387	64	WMI table (8x8)	EEPROM_CONFIG12_MAP
2451	8	WMI table (X axis) (RPM)
2459	8	WMI table (Y axis) (MAP)
2467	2	X and Y sizes VVT2 table
2469	64	VVT2 table (8x8)	EEPROM_CONFIG12_MAP2
2553	8	VVT2 table (X axis) (RPM)
2541	8	VVT2 table (Y axis) (MAP)
2549	2	X and Y sizes dwell table
2551	16	Dwell table (4x4)	EEPROM_CONFIG12_MAP3
2567	4	Dwell table (X axis) (RPM)
2571	4	Dwell table (Y axis) (MAP)
2575	5	HOLE ??
2580	128	Page 13 settings	EEPROM_CONFIG13_START
2708	2	X and Y sizes for ignition2 table
2710	256	Ignition2 table (16x16)	EEPROM_CONFIG14_MAP
2966	16	Ignition2 table (X axis) (RPM)
2982	16	Ignition2 table (Y axis) (MAP/TPS)
2998	1	HOLE ??
2999	2	X and Y sizes for trim5 table
3001	36	Trim5 table (6x6)	EEPROM_CONFIG8_MAP5
3037	6	Trim5 table (X axis) (RPM)
3043	6	Trim5 table (Y axis) (MAP)
3049	2	X and Y sizes for trim6 table
3051	36	Trim6 table (6x6)	EEPROM_CONFIG8_MAP6
3087	6	Trim6 table (X axis) (RPM)
3093	6	Trim6 table (Y axis) (MAP)
3099	2	X and Y sizes for trim7 table
3101	36	Trim7 table (6x6)	EEPROM_CONFIG8_MAP7
3137	6	Trim7 table (X axis) (RPM)
3143	6	Trim7 table (Y axis) (MAP)
3149	2	X and Y sizes for trim8 table
3151	36	Trim8 table (6x6)	EEPROM_CONFIG8_MAP8
3187	6	Trim8 table (X axis) (RPM)
3193	6	Trim8 table (Y axis) (MAP)
3199	2	X and Y sizes boostLUT table
3201	64	boostLUT table (8x8)	EEPROM_CONFIG15_MAP
3265	8	boostLUT table (X axis) (RPM)
3273	8	boostLUT table (Y axis) (targetBoost)
3281	1	boostLUT enable	EEPROM_CONFIG15_START
3282	1	boostDCWhenDisabled
3283	1	boostControlEnableThreshold
3284	14	A/C Control Settings
3298	159	Page 15 spare
3457	217	EMPTY
3674	4	CLT Calibration CRC32
3678	4	IAT Calibration CRC32
3682	4	O2 Calibration CRC32
3686	56	Page CRC32 sums (4x14)	Last first, 14 -> 1
3742	1	Baro value saved at init	EEPROM_LAST_BARO
3743	64	O2 Calibration Bins	EEPROM_CALIBRATION_O2_BINS
3807	32	O2 Calibration Values	EEPROM_CALIBRATION_O2_VALUES
3839	64	IAT Calibration Bins	EEPROM_CALIBRATION_IAT_BINS
3903	64	IAT Calibration Values	EEPROM_CALIBRATION_IAT_VALUES
3967	64	CLT Calibration Bins	EEPROM_CALIBRATION_CLT_BINS
4031	64	CLT Calibration Values	EEPROM_CALIBRATION_CLT_VALUES
4095		END

Macro Definition Documentation

EEPROM_CALIBRATION_CLT_CRC

#define EEPROM_CALIBRATION_CLT_CRC   3674

EEPROM_CALIBRATION_CLT_OLD

#define EEPROM_CALIBRATION_CLT_OLD   3583

EEPROM_CALIBRATION_IAT_CRC

#define EEPROM_CALIBRATION_IAT_CRC   3678

EEPROM_CALIBRATION_IAT_OLD

#define EEPROM_CALIBRATION_IAT_OLD   3071

EEPROM_CALIBRATION_O2_CRC

#define EEPROM_CALIBRATION_O2_CRC   3682

EEPROM_CALIBRATION_O2_OLD

#define EEPROM_CALIBRATION_O2_OLD   2559

EEPROM_CONFIG10_END

#define EEPROM_CONFIG10_END   2094

EEPROM_CONFIG10_START

#define EEPROM_CONFIG10_START   1902

EEPROM_CONFIG11_END

#define EEPROM_CONFIG11_END   2385

EEPROM_CONFIG11_MAP

#define EEPROM_CONFIG11_MAP   2096

EEPROM_CONFIG12_END

#define EEPROM_CONFIG12_END   2575

EEPROM_CONFIG12_MAP

#define EEPROM_CONFIG12_MAP   2387

EEPROM_CONFIG12_MAP2

#define EEPROM_CONFIG12_MAP2   2469

EEPROM_CONFIG12_MAP3

#define EEPROM_CONFIG12_MAP3   2551

EEPROM_CONFIG13_END

#define EEPROM_CONFIG13_END   2708

EEPROM_CONFIG13_START

#define EEPROM_CONFIG13_START   2580

EEPROM_CONFIG14_END

#define EEPROM_CONFIG14_END   2998

EEPROM_CONFIG14_MAP

#define EEPROM_CONFIG14_MAP   2710

EEPROM_CONFIG15_END

#define EEPROM_CONFIG15_END   3457

EEPROM_CONFIG15_MAP

#define EEPROM_CONFIG15_MAP   3199

EEPROM_CONFIG15_START

#define EEPROM_CONFIG15_START   3281

EEPROM_CONFIG1_MAP

#define EEPROM_CONFIG1_MAP   3

EEPROM_CONFIG2_END

#define EEPROM_CONFIG2_END   419

EEPROM_CONFIG2_START

#define EEPROM_CONFIG2_START   291

EEPROM_CONFIG3_MAP

#define EEPROM_CONFIG3_MAP   421

EEPROM_CONFIG4_END

#define EEPROM_CONFIG4_END   837

EEPROM_CONFIG4_START

#define EEPROM_CONFIG4_START   709

EEPROM_CONFIG5_MAP

#define EEPROM_CONFIG5_MAP   839

EEPROM_CONFIG6_END

#define EEPROM_CONFIG6_END   1255

EEPROM_CONFIG6_START

#define EEPROM_CONFIG6_START   1127

EEPROM_CONFIG7_END

#define EEPROM_CONFIG7_END   1501

EEPROM_CONFIG7_MAP1

#define EEPROM_CONFIG7_MAP1   1257

EEPROM_CONFIG7_MAP2

#define EEPROM_CONFIG7_MAP2   1339

EEPROM_CONFIG7_MAP3

#define EEPROM_CONFIG7_MAP3   1421

EEPROM_CONFIG8_MAP1

#define EEPROM_CONFIG8_MAP1   1503

EEPROM_CONFIG8_MAP2

#define EEPROM_CONFIG8_MAP2   1553

EEPROM_CONFIG8_MAP3

#define EEPROM_CONFIG8_MAP3   1603

EEPROM_CONFIG8_MAP4

#define EEPROM_CONFIG8_MAP4   1653

EEPROM_CONFIG8_MAP5

#define EEPROM_CONFIG8_MAP5   3001

EEPROM_CONFIG8_MAP6

#define EEPROM_CONFIG8_MAP6   3051

EEPROM_CONFIG8_MAP7

#define EEPROM_CONFIG8_MAP7   3101

EEPROM_CONFIG8_MAP8

#define EEPROM_CONFIG8_MAP8   3151

EEPROM_CONFIG9_END

#define EEPROM_CONFIG9_END   1902

EEPROM_CONFIG9_START

#define EEPROM_CONFIG9_START   1710

EEPROM_DEFER_DELAY

#define EEPROM_DEFER_DELAY   MICROS_PER_SEC

Function Documentation

EEPROMReadRaw()

uint8_t EEPROMReadRaw

(

uint16_t

address

)

Here is the call graph for this function:

Here is the caller graph for this function:

EEPROMWriteRaw()

void EEPROMWriteRaw	(	uint16_t	address,
		uint8_t	data
	)

Here is the call graph for this function:

Here is the caller graph for this function:

getEEPROMSize()

uint16_t getEEPROMSize

(

void

)

Here is the call graph for this function:

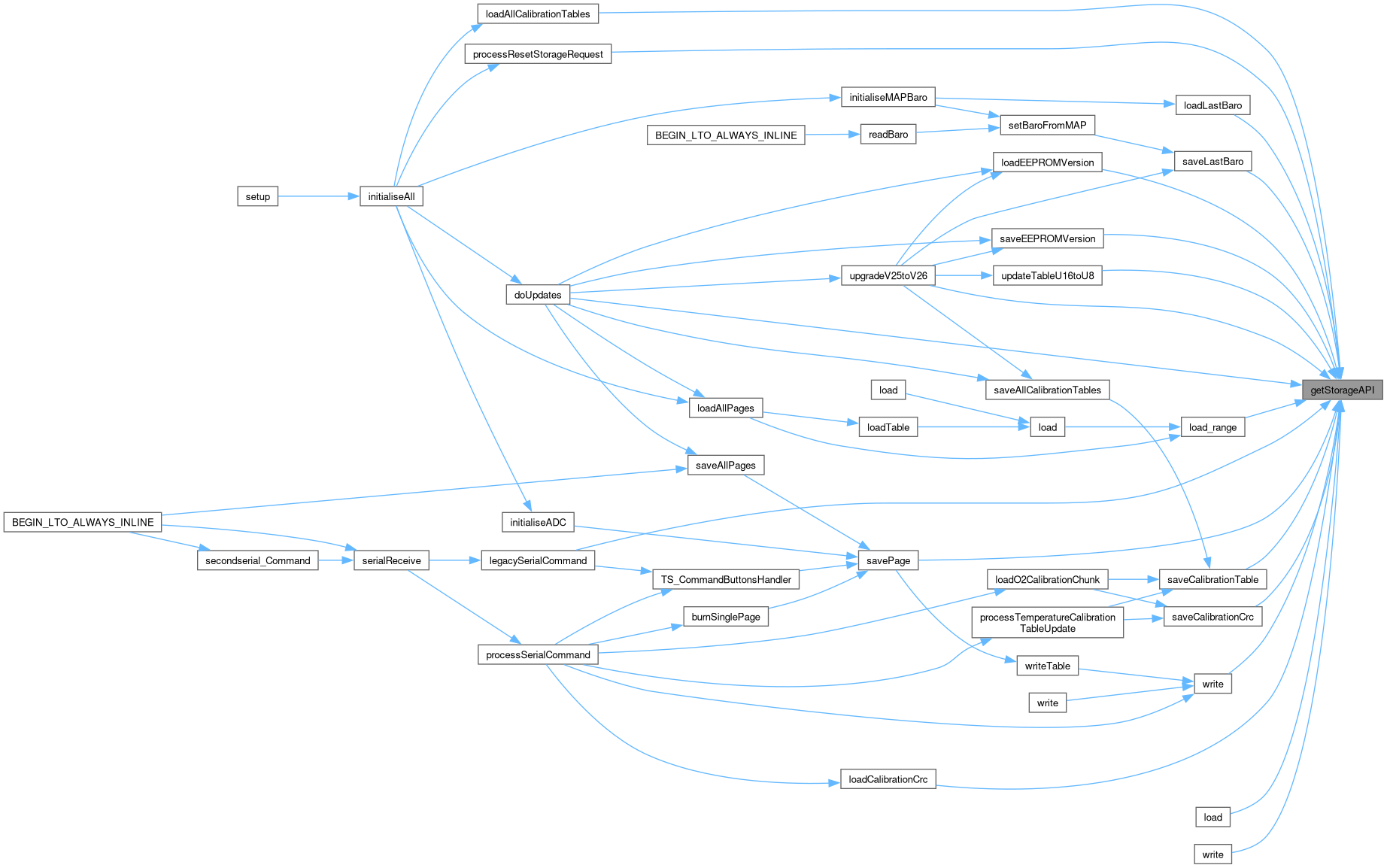

Here is the caller graph for this function:

isEepromWritePending()

bool isEepromWritePending

(

void

)

Here is the caller graph for this function:

loadCalibration()

void loadCalibration

(

void

)

Read the calibration information from EEPROM. This is separate from the config load as the calibrations do not exist as pages within the ini file for Tuner Studio.

Here is the call graph for this function:

Here is the caller graph for this function:

loadConfig()

void loadConfig

(

void

)

Load all config tables from storage.

Here is the call graph for this function:

Here is the caller graph for this function:

readCalibrationCRC32()

uint32_t readCalibrationCRC32

(

uint8_t

calibrationPageNum

)

Retrieves and returns the 4 byte CRC32 checksum for a given calibration page from EEPROM.

Parameters

calibrationPageNum

- Config page number

Here is the call graph for this function:

Here is the caller graph for this function:

readEEPROMVersion()

uint8_t readEEPROMVersion

(

void

)

Read EEPROM current data format version (from offset EEPROM_DATA_VERSION).

Here is the call graph for this function:

Here is the caller graph for this function:

readLastBaro()

byte readLastBaro

(

void

)

Read last stored barometer reading from EEPROM.

Here is the call graph for this function:

Here is the caller graph for this function:

readPageCRC32()

uint32_t readPageCRC32

(

uint8_t

pageNum

)

Retrieves and returns the 4 byte CRC32 checksum for a given page from EEPROM.

Parameters

pageNum

- Config page number

Here is the call graph for this function:

resetConfigPages()

void resetConfigPages

(

void

)

Reset all configPage* structs (2,4,6,9,10,13) and write them full of null-bytes.

Here is the call graph for this function:

Here is the caller graph for this function:

storeCalibrationCRC32()

void storeCalibrationCRC32	(	uint8_t	calibrationPageNum,
		uint32_t	calibrationCRC
	)

Same as above, but writes the CRC32 for the calibration page rather than tune data

Parameters

calibrationPageNum	- Calibration page number
calibrationCRC	- CRC32 checksum

Here is the call graph for this function:

Here is the caller graph for this function:

storeEEPROMVersion()

void storeEEPROMVersion

(

byte

newVersion

)

Store EEPROM current data format version (to offset EEPROM_DATA_VERSION).

Here is the call graph for this function:

Here is the caller graph for this function:

storeLastBaro()

void storeLastBaro

(

byte

newValue

)

Write last acquired arometer reading to EEPROM.

Here is the call graph for this function:

Here is the caller graph for this function:

storePageCRC32()

void storePageCRC32	(	uint8_t	pageNum,
		uint32_t	crcValue
	)

Write CRC32 checksum to EEPROM. Takes a page number and CRC32 value then stores it in the relevant place in EEPROM

Parameters

pageNum	- Config page number
crcValue	- CRC32 checksum

Here is the call graph for this function:

writeAllConfig()

void writeAllConfig

(

void

)

Write all config pages to EEPROM.

Here is the call graph for this function:

Here is the caller graph for this function:

writeCalibration()

void writeCalibration

(

void

)

Write calibration tables to EEPROM. This takes the values in the 3 calibration tables (Coolant, Inlet temp and O2) and saves them to the EEPROM.

Here is the call graph for this function:

Here is the caller graph for this function:

writeCalibrationPage()

void writeCalibrationPage

(

uint8_t

pageNum

)

Here is the call graph for this function:

Here is the caller graph for this function:

writeConfig()

void writeConfig

(

uint8_t

pageNum

)

Write a table or map to EEPROM storage. Takes the current configuration (config pages and maps) and writes them to EEPROM as per the layout defined in storage.h.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

deferEEPROMWritesUntil

uint32_t deferEEPROMWritesUntil

extern
