resetControl.h File Reference

Reset control functionality, to prevent resets while the engine is running (if configured to do so) More...

#include "statuses.h"

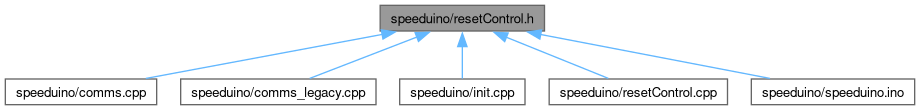

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum class	ResetControlMode : uint8_t { Disabled = 0U , PreventWhenRunning = 1U , PreventAlways = 2U , SerialCommand = 3U }
	Available reset control modes. More...

Functions
void	initialiseResetControl (ResetControlMode resetControlMode, uint8_t resetPin)
	Initialise the reset control system, with the given mode and reset pin.
ResetControlMode	getResetControlMode (void)
	Get the reset control mode as set during initialisation.
bool	isResetPreventActive (void)
	Check if reset prevention is active.
void	matchResetControlToEngineState (const statuses &current)
	Match reset control to the current engine state.

Detailed Description

Reset control functionality, to prevent resets while the engine is running (if configured to do so)

See also

https://wiki.speeduino.com/en/configuration/Reset_Control

Enumeration Type Documentation

ResetControlMode

enum class ResetControlMode : uint8_t

strong

Available reset control modes.

Enumerator
Disabled	Disabled
PreventWhenRunning	Prevent reset when engine is running
PreventAlways	Prevent reset always
SerialCommand	Reset via serial command

Function Documentation

getResetControlMode()

ResetControlMode getResetControlMode

(

void

)

Get the reset control mode as set during initialisation.

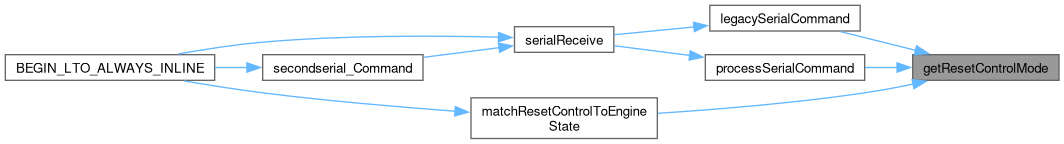

Here is the caller graph for this function:

initialiseResetControl()

void initialiseResetControl	(	ResetControlMode	resetControlMode,
		uint8_t	resetPin
	)

Initialise the reset control system, with the given mode and reset pin.

Here is the call graph for this function:

Here is the caller graph for this function:

isResetPreventActive()

bool isResetPreventActive

(

void

)

Check if reset prevention is active.

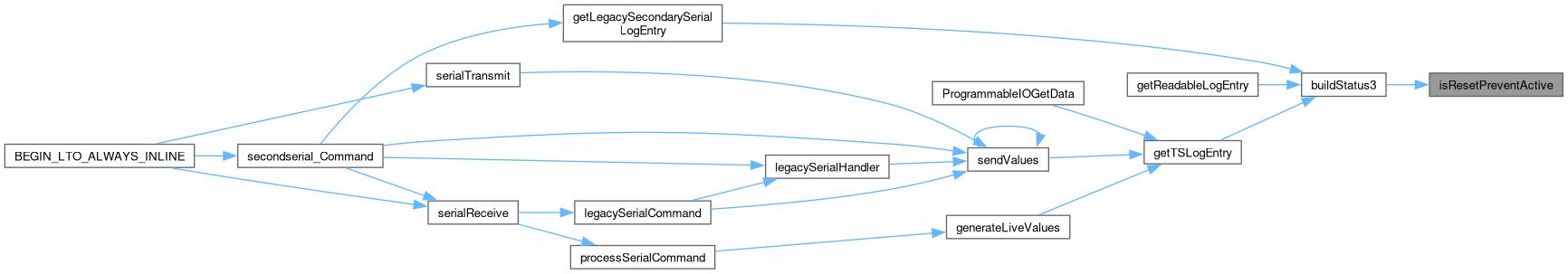

Here is the caller graph for this function:

matchResetControlToEngineState()

void matchResetControlToEngineState

(

const statuses &

current

)

Match reset control to the current engine state.

When the mode is set to PreventWhenRunning, this will set the reset pin HIGH (to prevent reset) if the engine is running, and LOW otherwise. This should be called regularly in the main loop.

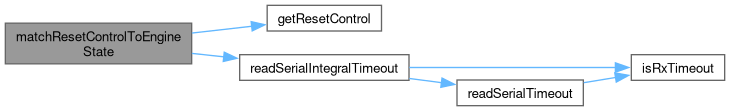

Here is the call graph for this function:

Here is the caller graph for this function:
