table_row_iterator Class Reference

Iterate through a table row. I.e. constant Y, changing X. More...

#include <table3d_values.h>

Public Member Functions
	table_row_iterator (const table3d_value_t *pRowStart, table3d_dim_t rowWidth)
	Construct.
const table3d_value_t *	end (void) const
	Pointer to the end of the row.
table3d_value_t *	end (void)
	Pointer to the end of the row.
table_row_iterator &	advance (table3d_dim_t steps)
	Advance the iterator.
table_row_iterator &	operator++ (void)
	Increment the iterator by one element.
bool	at_end (void) const
	Test for end of iteration.
const table3d_value_t &	operator* (void) const
	Dereference the iterator.
table3d_value_t &	operator* (void)
	Dereference the iterator.
table3d_dim_t	size (void) const
	Number of elements available.

Detailed Description

Iterate through a table row. I.e. constant Y, changing X.

Instances of this class are normally created via a table_value_iterator instance.

Constructor & Destructor Documentation

table_row_iterator()

table_row_iterator::table_row_iterator ( const table3d_value_t *  pRowStart, table3d_dim_t  rowWidth  )

inline

Construct.

Parameters

pRowStart	Pointer to the 1st element in the row
rowWidth	The number of elements to in the row

Member Function Documentation

advance()

table_row_iterator & table_row_iterator::advance ( table3d_dim_t  steps )

inline

Advance the iterator.

Parameters

steps

The number of elements to move the iterator

Here is the caller graph for this function:

at_end()

bool table_row_iterator::at_end ( void  ) const

inline

Test for end of iteration.

end() [1/2]

table3d_value_t * table_row_iterator::end ( void  )

inline

Pointer to the end of the row.

end() [2/2]

const table3d_value_t * table_row_iterator::end ( void  ) const

inline

Pointer to the end of the row.

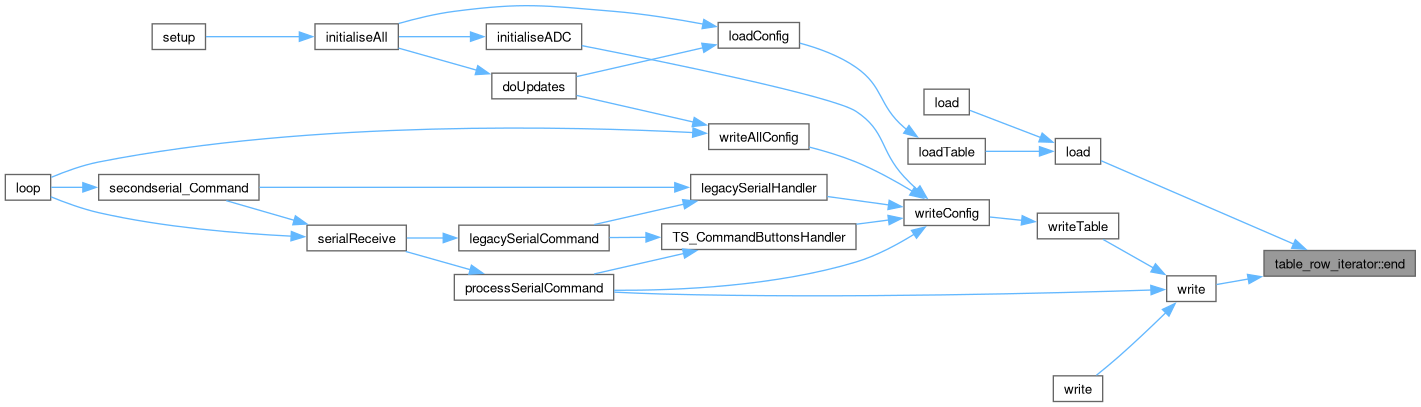

Here is the caller graph for this function:

operator*() [1/2]

table3d_value_t & table_row_iterator::operator* ( void  )

inline

Dereference the iterator.

operator*() [2/2]

const table3d_value_t & table_row_iterator::operator* ( void  ) const

inline

Dereference the iterator.

operator++()

table_row_iterator & table_row_iterator::operator++ ( void  )

inline

Increment the iterator by one element.

Here is the call graph for this function:

size()

table3d_dim_t table_row_iterator::size ( void  ) const

inline

Number of elements available.

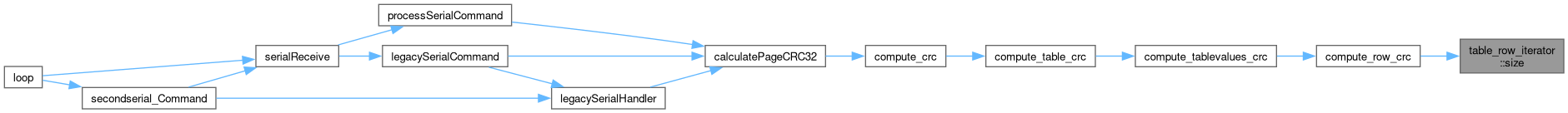

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• speeduino/table3d_values.h
