engineProtection.h File Reference

Engine "protection" via RPM limits. More...

#include "statuses.h"
#include "config_pages.h"

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
statuses::engine_protect_flags_t	checkEngineProtection (const statuses &current, const config4 &page4, const config6 &page6, const config9 &page9, const config10 &page10)
	Determine what the engine protection state is.
statuses::scheduler_cut_t	calculateFuelIgnitionChannelCut (const statuses &current, const config2 &page2, const config4 &page4, const config6 &page6, const config9 &page9)
	Determine which fuel and ignition channels to cut in order to limit RPM.

Detailed Description

Engine "protection" via RPM limits.

Function Documentation

calculateFuelIgnitionChannelCut()

statuses::scheduler_cut_t calculateFuelIgnitionChannelCut	(	const statuses &	current,
		const config2 &	page2,
		const config4 &	page4,
		const config6 &	page6,
		const config9 &	page9
	)

Determine which fuel and ignition channels to cut in order to limit RPM.

Note

This can only enforce RPM based limits; limits based on other factors (E.g. advance) are dealt with elsewhere.

Parameters

current	Current system state
page2	Tune
page4	Tune
page6	Tune
page9	Tune

Returns

statuses::scheduler_cut_t Cut status & fuel/ignition channels that should be cut.

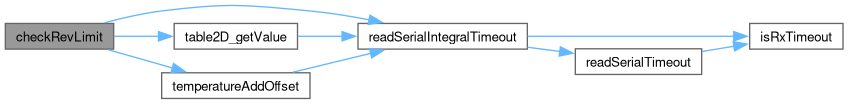

Here is the caller graph for this function:

checkEngineProtection()

statuses::engine_protect_flags_t checkEngineProtection	(	const statuses &	current,
		const config4 &	page4,
		const config6 &	page6,
		const config9 &	page9,
		const config10 &	page10
	)

Determine what the engine protection state is.

Parameters

current	Current system state
page4	Tune
page6	Tune
page9	Tune
page10	Tune

Returns

statuses::engine_protect_flags_t Which engine protections should be applied

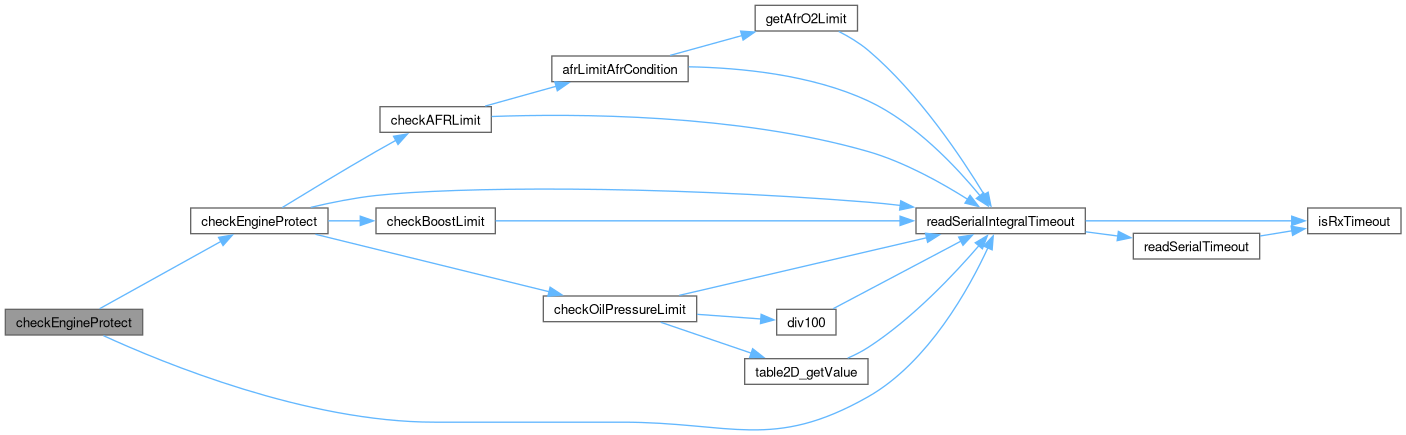

Here is the caller graph for this function:
