load_source.h File Reference

#include "statuses.h"

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	LoadSource { LOAD_SOURCE_MAP , LOAD_SOURCE_TPS , LOAD_SOURCE_IMAPEMAP }
	The load source for various tables. More...

Functions
static int16_t	getLoad (LoadSource algorithm, const statuses &current)
	Get the load value, based the supplied algorithm.

Enumeration Type Documentation

LoadSource

enum LoadSource

The load source for various tables.

Enumerator
LOAD_SOURCE_MAP	Manifold Absolute Pressure (MAP). Aka Intake MAP (IMAP). I.e. a pressure sensor that reads the pressure (positive or negative) in the intake manifold
LOAD_SOURCE_TPS	Throttle Position Sensor (TPS)
LOAD_SOURCE_IMAPEMAP	Ratio of intake pressure to exhaust pressure. A variation of the standard MAP that uses the ratio of inlet manifold pressure to exhaust manifold pressure, something that is particularly useful on turbo engines.

Function Documentation

getLoad()

static int16_t getLoad ( LoadSource  algorithm, const statuses &  current  )

inlinestatic

Get the load value, based the supplied algorithm.

Parameters

algorithm	The load algorithm
current	The current system state, from which the load is computed.

Returns

The load.

Here is the call graph for this function:

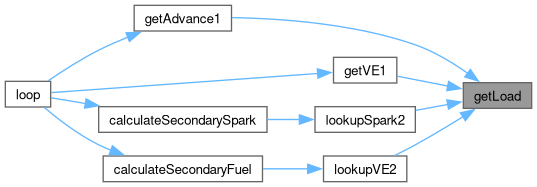

Here is the caller graph for this function:
