Calibration table save & load

Functions to save & load sensor calibration tables to/from durable storage. More...

Enumerations
enum class	SensorCalibrationTable : uint8_t { SensorCalibrationTable::CoolantSensor = 0U , SensorCalibrationTable::IntakeAirTempSensor = 1U , SensorCalibrationTable::O2Sensor = 2U }
	Enum to identify sensor calibration tables. More...

Functions
void	loadAllCalibrationTables (void)
	Load the curves for all sensors from durable storage.
void	saveAllCalibrationTables (void)
	Store the curves for all sensors in durable storage.
void	saveCalibrationTable (SensorCalibrationTable sensor)
	Store one sensor curve in durable storage.
void	saveCalibrationCrc (SensorCalibrationTable sensor, uint32_t crc)
	Store the CRC for one sensor curve in durable storage.
uint32_t	loadCalibrationCrc (SensorCalibrationTable sensor)
	Retrieve the CRC for one sensor curve from durable storage.

Detailed Description

Functions to save & load sensor calibration tables to/from durable storage.

This is separate from the page load as the calibrations do not exist as pages within the ini file for Tuner Studio.

Enumeration Type Documentation

SensorCalibrationTable

enum class SensorCalibrationTable : uint8_t

strong

Enum to identify sensor calibration tables.

Enumerator
CoolantSensor	The coolant sensor calibration curve.
IntakeAirTempSensor	Intake Air Temperature (IAT) sensor calibration curve.
O2Sensor	The Oxygen (O2) sensor calibration curve.

Function Documentation

loadAllCalibrationTables()

void loadAllCalibrationTables

(

void

)

Load the curves for all sensors from durable storage.

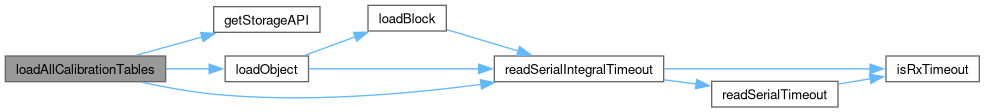

Here is the call graph for this function:

Here is the caller graph for this function:

loadCalibrationCrc()

uint32_t loadCalibrationCrc

(

SensorCalibrationTable

sensor

)

Retrieve the CRC for one sensor curve from durable storage.

Retrieves and returns the 4 byte CRC32 checksum for a given calibration page from EEPROM.

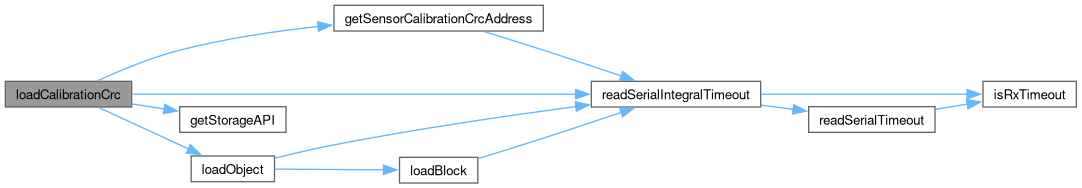

Here is the call graph for this function:

Here is the caller graph for this function:

saveAllCalibrationTables()

void saveAllCalibrationTables

(

void

)

Store the curves for all sensors in durable storage.

Write calibration tables to EEPROM. This takes the values in the 3 calibration tables (Coolant, Inlet temp and O2) and saves them to the EEPROM.

Here is the call graph for this function:

Here is the caller graph for this function:

saveCalibrationCrc()

void saveCalibrationCrc	(	SensorCalibrationTable	sensor,
		uint32_t	crc
	)

Store the CRC for one sensor curve in durable storage.

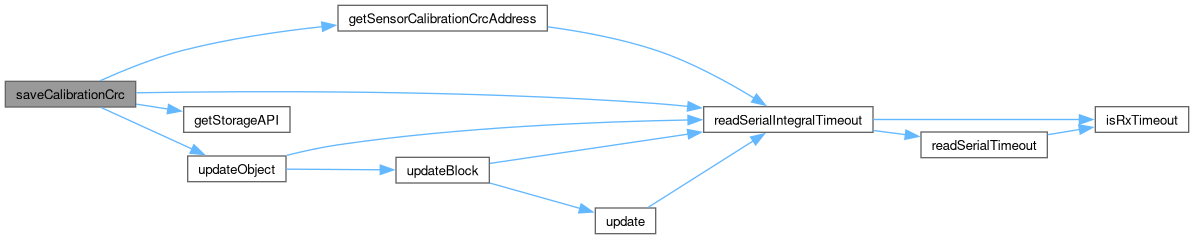

Here is the call graph for this function:

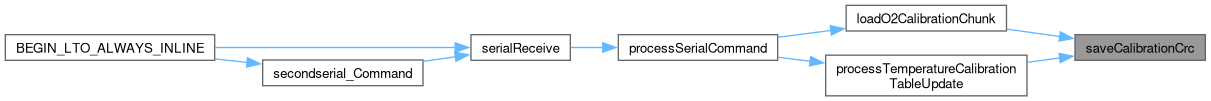

Here is the caller graph for this function:

saveCalibrationTable()

void saveCalibrationTable

(

SensorCalibrationTable

sensor

)

Store one sensor curve in durable storage.

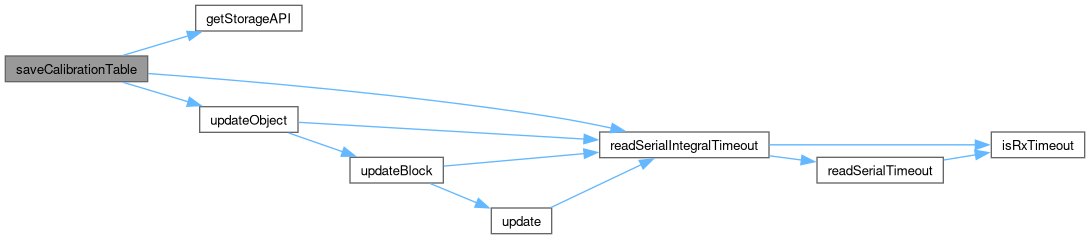

Here is the call graph for this function:

Here is the caller graph for this function:
